| Prod Model: |
3600T |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Nominal Capacity: |
36000kn |
| Return Force: |
360kn |
| Max. Pressure Of Main Cylinder: |
25MPa |
| Stroke Of Slide: |
500mm |
| Biggest Opening Degree: |
600mm |
| Forging Forming Method: |
Mold Forging |
| Power Source: |
Hydraulic Pressure |
| Advantage: |
Use Widely |
Product Description

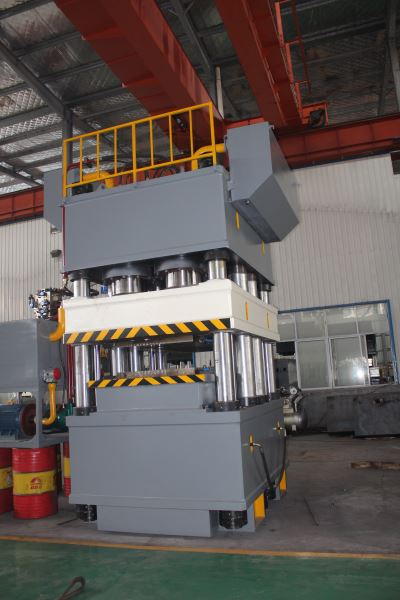

Single Action 8-column hydraulic press machine for door panel series
ITEM
UNIT
3600T
nominal capacity
kn
36000
return force
kn
360
max. pressure of main cylinder
mpa
25
stroke of slide
mm
500
biggest opening degree
mm
600
dimension of working table(left-right)
mm
1600
dimension of working table(front-back)
mm
2600
motor power
kw
90
According to users' requirements, the model customizes a variety of tops, stroke, tonnage, machine work table, reliable, rugged,the cylinder.
Zhejiang Lizhou Hydraulic Equipment Co., Ltd is a new high-tech enterprise which specializes in designing, manufacturing and sales of hydraulic press machine, and providing individualized, various and systematical solutions of metal-forming and nonmetal-forming.
Our main products include single-column, 4-column, hydraulic drawing and stamping press machine. We also specialize in designing and manufacturing various hydraulic press for steel security doors, and hydraulic cylinders, and other hundred kinds of hydraulic and metal-forming equipment. The products are widely used in the fields automobile, aerospace, nuclear power, and shipping etc. With accurate design, reasonable price, professional technology and quality, quick after-sales service, our products have been exported to more than 30 provinces and cities and even to Europe, Japan, Middle East, America, and South-East Asia countries.
If you have special design or requirements, we can customize for you with your drawing. Meanwhile forging moulds and toolings are also in available acccording to customer' S requirements. If you have any inquiry, please feel free to contact us for more details. We highly welcome our customers to visit our factory and make further discuss on our cooperation.
