| Prod Model: |
GM12663664 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Type: |
Auto Fasteners |
| Deck: |
Double |
| Muffler Type: |
Rear Muffler |
| FAG Type: |
Ws2485 |
| Heat Treatment: |
High-Frequency Quenching or |
| Life: |
80, 000 Kilometers |
| Germany&USA Steel Materia: |
1018 (Modified) Steel Per SAE J403 |
| Retainer: |
PA66+25% Fibre-Glass Reinforced |
| Shaft Max Diametre: |
15mm |
| Shaft Length: |
123mm |
Product Description

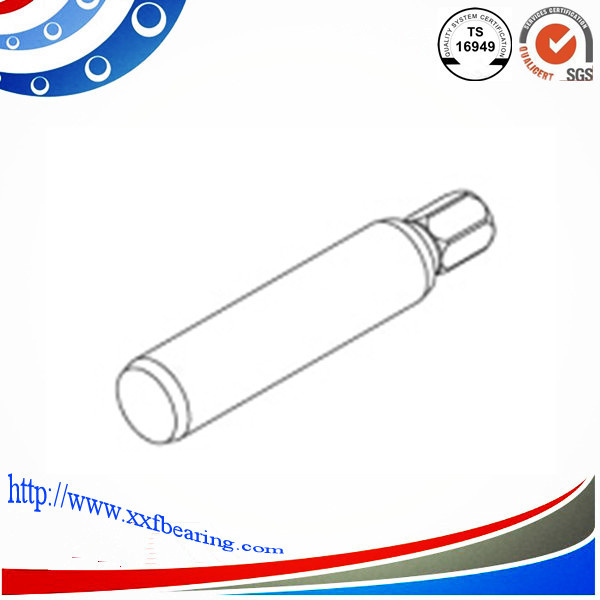

GM: 12663664
MATERIAL: 1018 (MODIFIED) STEEL PER SAE J403
:
EXCEPTION: Mn 0.5-0.9%
OR DIN EN 10084-1
CASE HARDENING DEPT 0, 4-0, 8
HEAT TREATMENT: LIQUID CARBURIZE/TEMPER
APPARENT SURFACE HARDNESS: HRC 51-57
APPARENT CORE HARDNESS: HRC 40 MAX
MAX MAGNETIC FIELD ALLOWABLE 5 GAUSS
UNLESS OTHERWISE SPECIFIED:
BASIC DIMENSIONS ARE OBTAINED FROM THE UG MATH MODEL;
1. WHEN RELATIONSHIPS BETWEEN FEATURES, CENTERLINES AND
CENTERPLANES ARE ESTABLISHED BY GEOMETRIC TOLERANCES.
2. WHEN THE FORM OF A FEATURE IS CONTROLLED BY A PROFILE TOLERANCE.
3. TO CONTROL THE LOCATION AND ORIENTATION BETWEEN DATUM TARGETS.
THE MATH MODEL MUST CORRESPOND TO THE DRAWING LEVEL SHOWN ON THIS
DOCUMENT.
ALL SURFACES TO HAVE FINISH OF 0.8 RA MAX.
ALL CORNER BREAKS 0.02-0.3
PART MUST BE FREE FROM BURRS, SHARP EDGES, AND RUST.
PARTS AS DELIVERED TO ASSEMBLY SHALL BE CLEAN AND FREE OF DEBRIS,
RESIDUAL ABRASIVE MATERIAL AND CORROSION PRODUCTS ADVERSELY
AFFECTING FUNCTION OR APPEARANCE.
RESTRICTED AND REPORTABLE SUBSTANCES PER GMW3059.
VIEWS AND SECTIONS ON THIS DRAWING ARE IN ACCORDANCE WITH GM DCS
SECTION C3
CLEANLINESS ACCORDING TO LEVEL 2
XXF Bearing-Jiangsu New Whirlwind Automobile Bearing Manufacturing Co., Ltd is located in Changzhou city and we are one of the leading suppliers in 1226-3258 series integral shaft / water pump bearings and annual production capacity can reach 3, 500, 000 sets. "XXF Bearing"brand water pump bearing (integral shaft bearing) is favored and praised by the automotive engine manufacturers and its supporting water pump manufacturers. We have passed the ISO/TS16949: 2009 and our floor area is over 20, 000 square meters and more than 100 domestic first-class bearing finishing equipments equipped with CNC automatic induction quenching machines and advanced fully automated assembly lines. The total amount of these equipments is more than RMB40, 000, 000. In addition, Its "XXF CNC Machining Center" undertakes all kinds of custom precision hardware metal turning&milling Machining
Quality First is XXF Bearing policy and we have the professional technical support, advanced processing technology, strict testing machines, equipped with professional precision measurement rooms containing sets of roundness measuring equipment, metroscope, contourgraph, metalloscope, microhardness tester to ensure the high quality. XXF Bearing goods are sold to more than 20 provinces and cities, which can be widely used in automobiles lines, machinery and other industries. Besides that, our goods have also been sent to America, Russia, Korea and other countries. We have enjoyed high reputation both at home and abroad. People Oriented and Customers Foremost, sincerely hope XXF Bearing can cooperate with you to conspire the development and create our brilliant.
