| Prod Model: |
2400*2600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spare Parts Supply: |
for Whole Year |
| Test&Installation: |
Engineer Assigned |
| After-Sale Service: |
for Whole Using Year |
| Motor Type: |
AC Motor |
| Type: |
Ball Mill |
| Condition: |
New |
Product Description

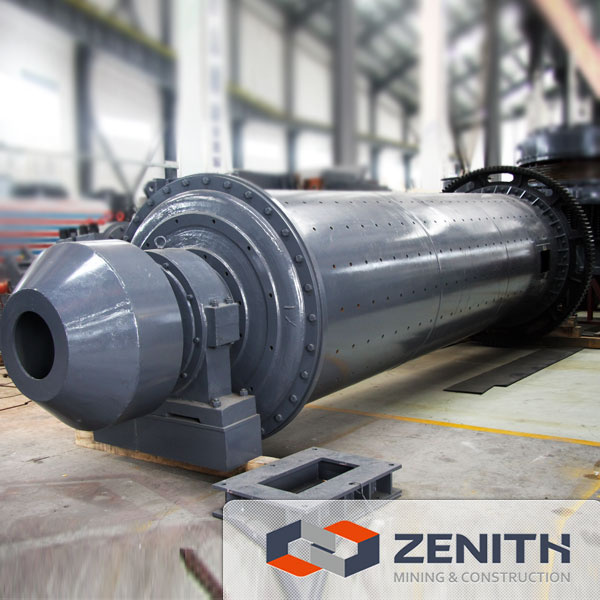

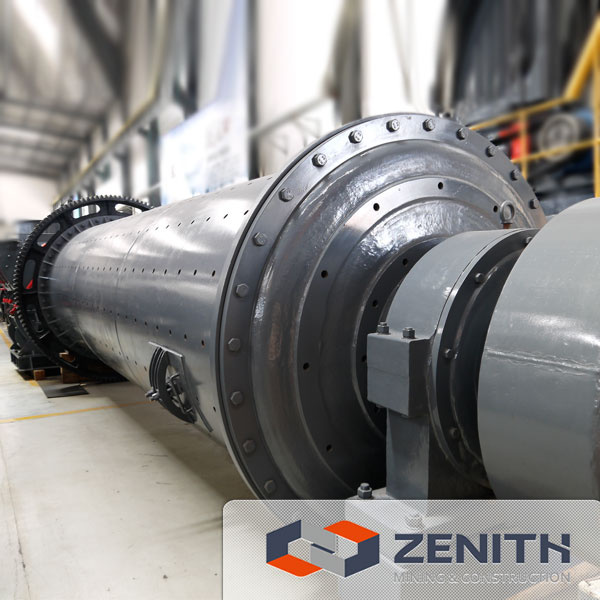

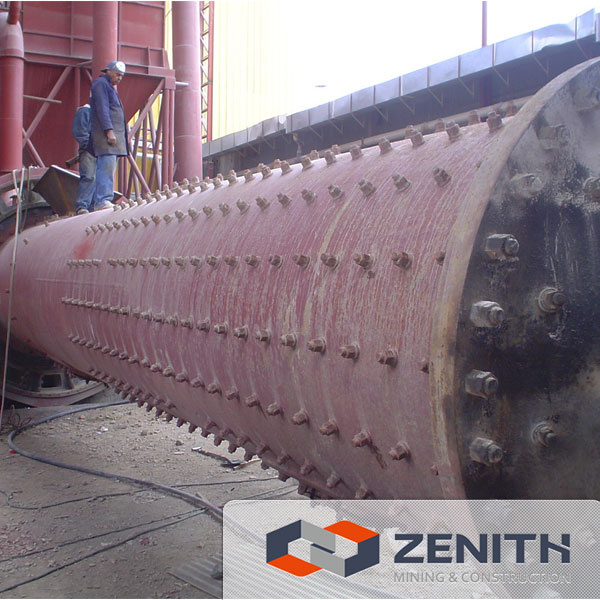

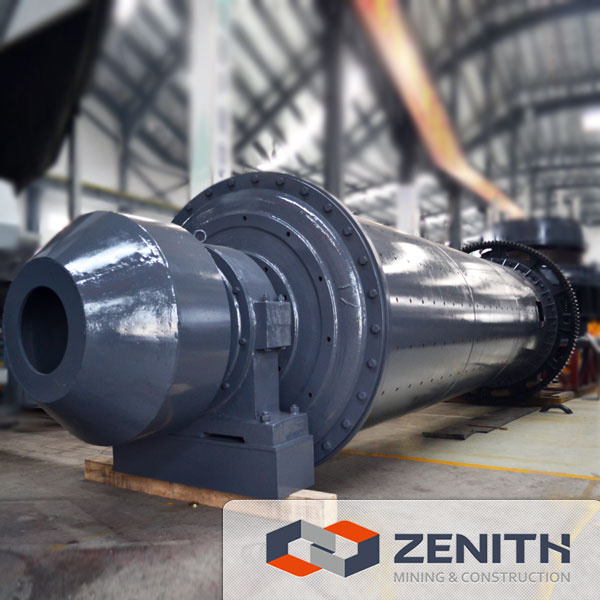

1.Introduction of Iron Ore Grinding Ball Mill Iron Ore Grinding Ball Mill is the material being broken, and then to smash the key equipment. Ball mill is widely used in cement, Portland products, new building material, refractory material, fertilizer, black and non-ferrous metal ore dressing and glass ceramics production industry, of all kind s of ores and other materials may be grinding of dry or wet grinding.
2.Features of Iron Ore Grinding Ball Mill 1. Steel plate go through planing process
2. Cylinder takes overall annealing process, eliminating welding stress and prevent deformation.
3. Flanges on both ends of the cylinder adopt large CNC lathes and special processing technology which fully guarantee concentricity.
4. The hollow axis adopts the cast steel;
5. The lining can be replaced;
6. Rotating adopts casting rolling gear;
7. The barrel body is wearable;
3.Working principle of Iron Ore Grinding Ball MillThe electro motor drives the cylinder to rotate through the reduction gears and the peripheral rack wheel reducer transmission, or the low speed synchronous motor directly drives the cylinder to rotate through the peripheral rack wheel reducer transmission.
Inside the cylinder, there are proper ore grinding media-steel rod. Under the eccentric force and frictional force, the ore grinding media are lifted to a certain height and fall down in the state of dropping.
The materials to be ground continuously go into the cylinder from the ore feeding mouth and are crushed by the moving grinding media, and then are discharged by the overflow and the force of continuous feeding to go to the next procedure.
4. Iron Ore Grinding Ball Mill Parameters:
|
Specification (Dia×Length) |
Rotating speed (r/min) |
Feed size (mm) |
Capacity (t/h) |
Grinding media load (t) |
Main motor |
Main reducer |
Weight(t) |
|
Model |
Power(kw) |
Rotating speed (r.p.m) |
Model |
Reduction ratio |
|
φ2.2×7 |
21.4 |
≤3 |
20~25 |
31 |
YR148-8 |
380 |
740 |
ZD70-9 |
5 |
49 |
|
φ2.2×13 |
21.6 |
≤25 |
33~37 |
58~60 |
YR630-8/1180 |
630 |
740 |
MBY630 |
5.6 |
53.4 |
|
φ2.4×13 |
21 |
≤25 |
45~50 |
65~70 |
YR800-8/1180 |
800 |
740 |
JDX710 |
5.6 |
131 |
|
φ2.6×13 |
20 |
≤25 |
45~46 |
80t(max) |
YR1000-8/1180 |
1000 |
740 |
TDX800 |
6.3 |
153 |
|
φ6.2×6.4 |
18.5 |
≤25 |
32~41 |
86~90.5 |
TDMK1000-36 |
1000 |
740 |
|
|
134 |
Dry Raw Mill
|
Specification (Dia×Length) |
Rotating speed (r/min) |
Feed size (mm) |
Capacity (t/h) |
Grinding media load (t) |
Main motor |
Main reducer |
Weight(t) |
|
Model |
Power(kw) |
Rotating speed (r.p.m) |
Model |
Reduction ratio |
|
φ2.4×8 |
20.91 |
≤25 |
25~28 |
39~42 |
JRQ1512-8 |
570 |
740 |
ZD80-9 |
5 |
76.4 |
|
φ2.4×10 |
20 |
≤25 |
Open circuit 27~30
Closed circuit 38~40 |
50 |
YR710-8/1180 |
710 |
740 |
JDX630 |
5.6 |
111 |
|
φ2.4×11 |
21 |
≤25 |
Open circuit 41~42
Closed circuit 46~48 |
62~65 |
YR800-8/1180 |
800 |
740 |
MBY710 |
6.3 |
125 |
|
φ2.4×12 |
21 |
≤25 |
Open circuit 40~42
Closed circuit 45~48 |
63~65 |
YR800-8/1180 |
800 |
740 |
MBY710 |
6.3 |
127 |
|
φ2.4×13 |
21.5 |
≤25 |
48~51 |
68~72 |
YR800-8/1180 |
800 |
740 |
MBY710 |
6.3 |
131 |
|
φ2.6×8 |
20 |
≤25 |
30~35 |
54 |
YR630-8/1180 |
630 |
740 |
JDX630 |
5.6 |
135 |
|
φ2.6×10 |
20.91 |
≤25 |
45~46 |
80 |
YR1000-8/1180 |
1000 |
740 |
JDX710 |
6.3 |
136 |
|
φ3×9 |
19.13 |
≤25 |
50~55 |
76~80 |
YR1000-8/1180 |
1000 |
740 |
JDX800 |
6.3 |
145 |
|
φ3.2×7 |
18.25 |
≤25 |
50~52 |
58 |
YR1000-8/1180 |
1000 |
740 |
MBY800 |
6.3 |
140 |
|
φ3.2×9 |
18.3 |
≤25 |
60~70 |
90 |
YR1250-8/1430 |
1250 |
740 |
JDX900 |
7.1 |
175 |
|
φ4.6×10+3.5 |
15 |
≤25 |
195 |
190 |
|
3550 |
740 |
JS150-B-F |
|
476 |
