| Prod Model: |
ZH9408 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Shoot Core Machine |
| Warranty: |
3 Years |
| Type Of Sand: |
Precoated Sand |
| Use: |
Foundry |
| Color: |
According to Your Requirement |
| Type: |
Precoated Sand |
| Casting Method: |
Hot Metal Ladle |
| Sand Core Type: |
Precoated Sand |
| Application: |
Metal Casting |
| Machining: |
Shoot Core Machine |
| Material: |
Iron Copper Aluminum Steel |
Product Description

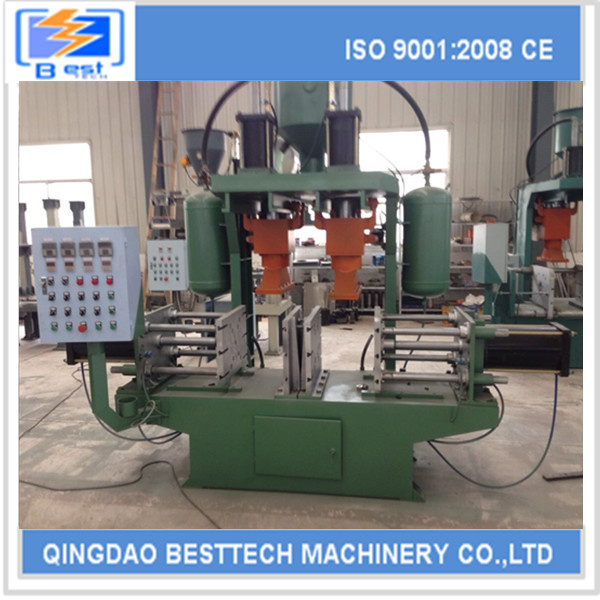

ZH9407H-30B core shooter introduction:
technical characteristics:
PLC can be made available for process control;Adjustable process parameters;Out of the sand core devices (include the top of core);
The-box templates can be the fluctuate move;
suitable for four-cylinder,six-cylinder,water jacket sand core core system;human operator.
what we supply:
Qingdao besttech machinery specialized in metal casting machine for many years,we can manufacture electric induction melting furnace ,molding machine,sand mixer machine,shoot core machine and a series of metal casting machine.our factory close to Qingdao port, with convenient transportation conditions can help you cut the spending.Qingdao besttech your best choice.
technical parameter:
item | ZH9407H-30 | ZH9410-50 | ZH9412-50 |
| moulding board max dimension (mm) | 780x500 | 1070x800 | 900x500 |
| cover die thick (mm) | 200 | 200 | 200 |
| movable mould min thick (mm) | 150 | 200 | 200 |
| mould assembly process (mm) | 400 | 400 | 400 |
| Max sand core weight (kg) | 30 | 50 | 50 |
| sand hopper capacity (kg) | 200 | 200 | 200 |
| heating mode | electric heating/triethylamine | electric heating/triethylamine | electric heating/triethylamine |
| electric heating power (kw) | 35 | 45 | 50 |
| system pressure (mpa) | 0.58mpa | - | - |
| operation mode | semi-automatic/automatic | semi-automatic/automatic | semi-automatic/automatic |
Our Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Qingdao Besttech Machinery Co., Ltd. Specializing in the production of dust environmental protection equipment, shot blasting cleaning machine, catenary shot blasting cleaning machine, through type shot blasting cleaning machine, crawler shot blasting cleaning machine, surface (lumen) blasting treatment and improved equipment, resin sand reclamation equipment production line, clay sand production line equipment, molding machine, hot metal ladle, casting Machinery and equipment, environmental protection equipment, steel shot blasting cleaning machine, etc. Is the highest technical content, complete varieties, production, sales of shot blasting machine and casting machinery production base, also is the Beijing Olympic Games the bird's nest, water cube and offshore oil platform main body engineering cooperation unit construction enterprises, is the domestic industry leader.
Qingdao caster ChongJi was founded in 1972, state-owned enterprises (original Qingdao three casting machine) the worker on the basis of the optimum combination to create enterprise, has more than 470 employees, professional and technical personnel 120 people, the factory covers an area of 120 mu, with various types of processing and manufacturing equipment more than 200 Taiwan (sets), has yearly produces mechanical equipment more than 1500 Taiwan (sets) of production capacity, products are exported to the United States, Russia, Ukraine, India, Vietnam, Thailand, Malaysia, Saudi Arabia, Hong Kong and other countries and regions, and took the lead through the ISO9001: 2008 international quality system certification.
