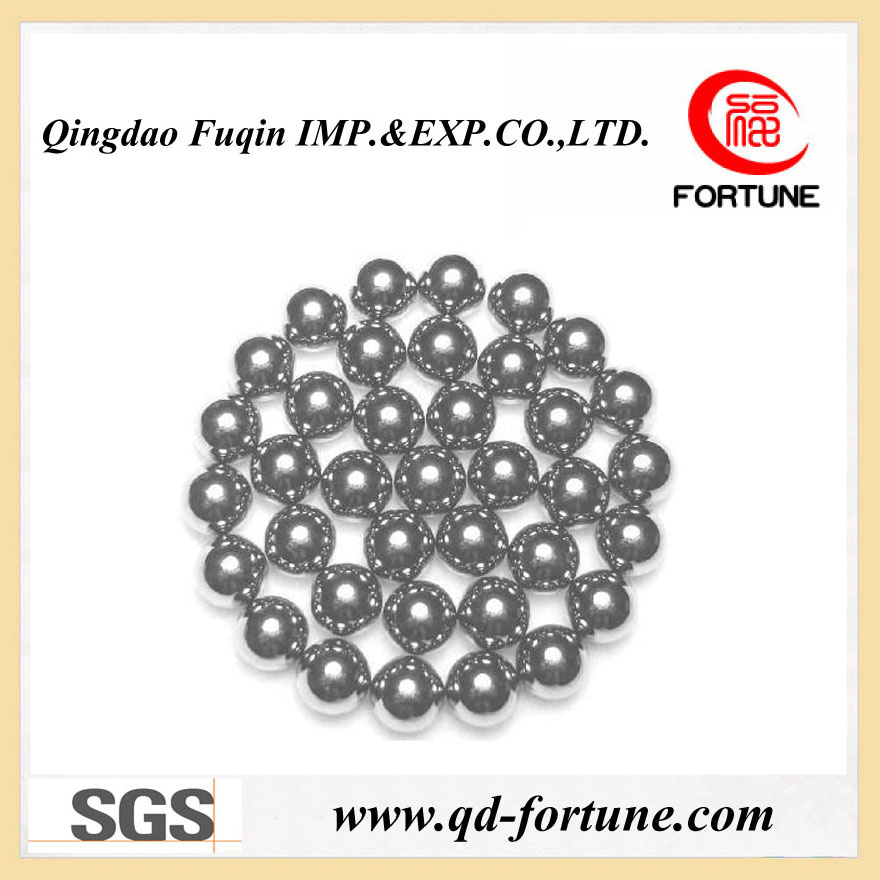

High Hardness, Low Carbon Forging Grinding Steel Balls

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	AISI430

Product Description

Product Description


  Qingdao Fuqin Imp. & Exp. Co., Ltd. It is aprofessional export company for the manufactures.The morther companies are steel ball and roller plants.The steel ball plant was founded in 1998. It is professional ball manufacturer.We have received ISO9001.The roller plant was found in 2000. It is professional roller manufacturer. We have received ISO/TS16949.


Applications :

A-General industry for automobile, motorcycle, bicycle manufacturing, special bearings & micro ball for the electronics industry..
B-
High accuracy & low noise motor bearing& household appliance bearings
C-
High - speed, low noise special bearing
D-
Ball valves for liquid and gas etc.


Carbon steel balls
Caption:The Applications
       Light duty bearing,Conveyer belt,
       Bicycle parts,Automobile parts,
       Slide bearing,Caster wheels,
       Computer peripheral products,
       Toys,Metal milling,Hand tools and etc.
Detail:
       Low Carbon-AISI 1010-1015
                 -1mm~30mm
                 G16~G1000

Chrome steel balls

Caption:The Applications
       Bearing/Automotive
       Cosmetics/Construction
       Body,Jewelry/Heavy Equipment
       Hunting cartridge
Detail:
Chrome steel - GCr15/100Cr6/AISI 52100/SUJ-2

Chemical Composition

Material	C%	Si%	Mn%	Cr%	Cu%
52100	0.98~1.10	0.15~0.35	0.25~0.45	1.30~1.60
GCr15	0.95~1.05	0.15~0.35	0.25~0.45	1.40~1.65	0.25
GCr15 SiMn	0.95~1.05	0.45~0.75	0.95~1.25	1.40~1.65	0.25
100Cr6	0.93~1.05	0.15~0.35	0.25~0.45	1.35~1.60
SUJ2	0.95 or 1.10	0.15 or 0.35	0.50 max	1.30~1.60

Stainless steel ball
Caption: The Applications
       For 300 series
       Trigger sprayers,Bearings,Dispenser valves,
       Body jewelry lotion pumps,Aerospace,Quick
       Disconnect couplings
       For 400 series
       Bearing applications,Valve applications,
       Locking mechanisms,Fasteners,Quick

Detail:
Stainless steel - AISI 302/304/304L/316/316L
             -AISI 420/420C/430/440C

Chermical Composition

AISI Number	C%	Si%	Mn%	Cr%	Ni%	Mo%	P%	S%	property
AISI 304	0.07 MAX	1.00 MAX	2.00 MAX	17.0~ 19.0	8.0~ 10.5		0.045 MAX	0.03 MAX	Slightly magnetic,flat surface HRC 25min.
AISI 316	0.07 MAX	1.00 MAX	2.00 MAX	16.5~ 18.5	10.5~ 13.5	2.00~ 2.50	0.045 MAX	0.03 MAX	Better corrosion resistance than SS304 specially against Sulfuric acid and ink/bleach/nitric
AISI 420	0.07~ 0.25	1.00 MAX	1.00 MAX	12.0~ 14.0			0.045 MAX	0.03 MAX	Magnetic, steel. flat surface HRC 50min, better corrosion resistant
AISI 430	0.08 MAX	1.00 MAX	1.00 MAX	15.5~ 17.5			0.045 MAX	0.03 MAX	Ferritic stainless steel,better corrosion resistant than 3series at higher temperature
AISI 440	0.95~ 1.20	1.00 MAX	1.00 MAX	16.0~ 18.0			0.045 MAX	0.02 MAX	Martensite,fair corrosion to water,alcohol,oil and food product.

Plastic balls

Materials and Characteristics






PACKAGING

Step 1: Weighing stainless steel balls. Usually the weight is about 10kg.
Step 2: Sealed plastic bags
Step 3: Put sealed plastic bags into small boxes.
Step 4: Each box has the label, including material, Lot No. size, quantity, grade, date......
Step 5: Each box directly put into mooden case.



Service

We would like to offer you services as:
- Instant improvement and design of products
- Quick response to the prices
- Complete inspection report
- Traceable
- Perfect logistic

We hope that our products can offer better quality support for you!
