| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Certificate: |
ISO9001 |
| Supply Market: |
Global |
| Norm: |
GB, DIN, ASTM ,En |
| Brand: |
Chifine |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Delivery Time: |
30 Days After Receiving The Payment |
| Surface Preparation: |
Polishing |
| Material: |
Manganese Steel |
Product Description

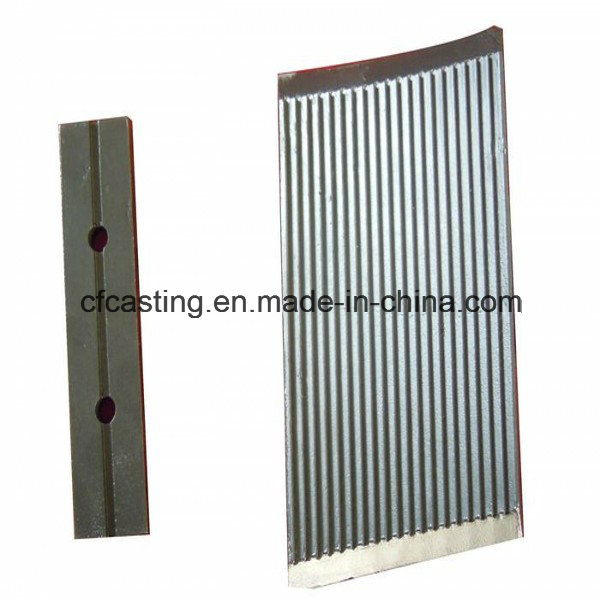

High Manganese Steel Cast Tooth Plate
1.Materials:Gray iron, ductile iron, malleable iron, carbon steel,Alloy steel, stainless
steel, aluminum, bronze, brass,etc.
2.Standard:JIS, DIN, ASTM, BS,GOST
3.Processes:Sand Casting, Investment Casting,Precision Casting,Forging,Stamping
,CNC Machining.
4.Surface treatment :Electro Zinc Plating Hot deep zinc plating,Electrophoresis,Powdercoating,Painting ,Shoot blasting etc.
5.Heat treatment :Induction furnace for raw material heating.Heat treatment of
continuous quench+temper+carburization available.
6.Machining:CNC machining centers for further machining process.
Investment Casting production line
Induction Melting furnaces with melting capacities of 150 kg?Wax Pattern Making Machine with size up to
(Columns distance: 1000mm x1000mm; Max. travel: 900mm; Max. wax capacity: 20 liters; Size up to 400mm x 700mm x 800mm and weight up 150kgs.)
Temperature & Humidity Controlled Shelling Room ?Dewaxing Machine?Preheat Stove?Heat Treatment Furnace
Shot & Sand Blasting Machines?Heavy Duty Grinders?Cutting Machines?Tool Room.
Quality Assurance
Chemical Analysis :
In house spectrometer with 24 channels capable of testing Fe, Ni, Co, Al based materials ?and also Nitrogen content.
Physical Testing :
In house Hardness Testing Machine.?In house Impact test Machine.?In house metallurgical microscope.
Test Provided :
Chemical Analysis, Tensile Test, Impact Test, Radiography (X-Ray), Dye Penetrate, Corrosion Test, MPT Test, Microstructure.
Material |
Ductile iron, gray cast iron
Stainless steel, carbon steel, low alloy steel
Copper alloy, aluminum al l oy etc |
Casting Process |
Clay sand casting, furan resin sand casting, shell mold casting
Water-glass sand casting, water-glass investment casting, lost-wax investment casting
Die casting |
Scope of Business |
Machinery part, Casting/Tractor/Pump / Valve/Impeller/Electrical
equipment/Auto parts/Farm machinery/Railway equipment/Mining
machinery/Engineering machinery/Petroleum machinery/butterfly valve disc etc. |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
