| Markets: |
South America,Africa,Mid East,Eastern Asia,Western Europe |
| Shape: |
Round |
| Customized: |
Customized |
| Usage: |
Stone Cutting, Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Processing Type: |
Forging |
| Application: |
DTH Drilling, Coal Mining, Quarrying |
| Diamater: |
76mm-800mm |
| Size: |
3" 4'" 5" 6" 8" 10" 12" Inches |
| Material: |
Steel +Carbide Bit |
Product Description
Specifications:
Bit Face Shape Selection:
1. Drop Center Bit
2. Concave Face
3. Convex Face
4. Double Gauge Face
5. Flat Face Bit
Carbide Button Shape Selection:
1. Domed/Round Button
2. Parabolic/Semi-Ballistic Buttons
3. Ballistic Button
4. Sharp Button
5. Flat Button
Product details:

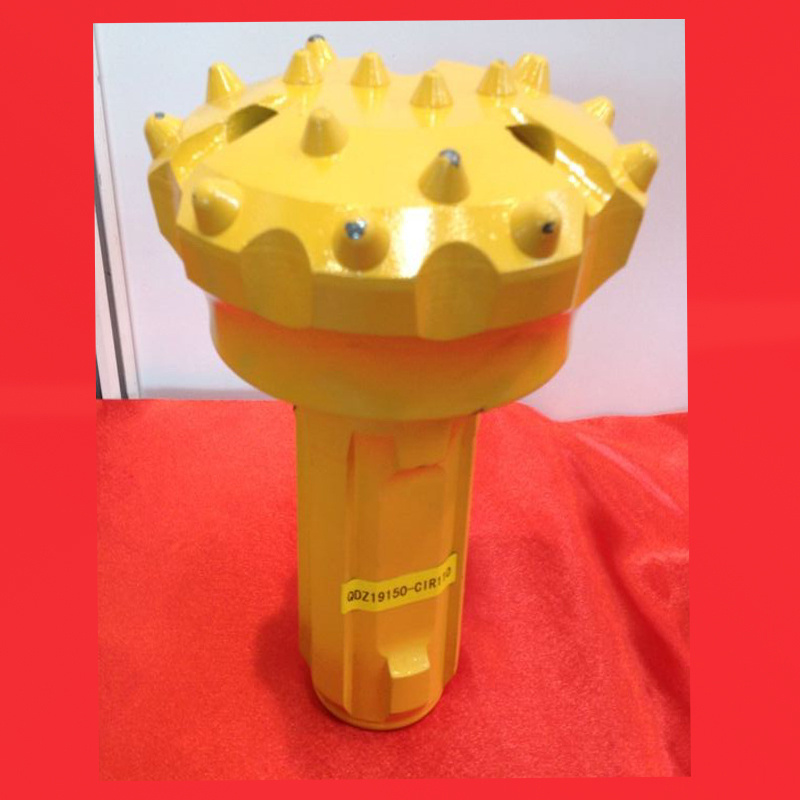

1. Product Name: Flat face low air pressure DTH bits.
2. Application: Flat face low air pressure DTH bits down the hole caride bits were used for blast hole drilling. Working with DTH hammer, mainly applied in Mining, Marble quarry or well drilling and other construction projects.
3. Feature: Tapered drill bits connect tapered drill steel of rock drill for drilling holes
4. Material: High quality carbide and high quality steel
5. MOQ: No requirement for testing and trial order
We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.
A: CIR Series Low Air Pressure Down The Hole Bits:
CIR Serious includes: CIR55, CIR65, CIR70, CIR80, CIR 90, CIR110, CIR110W, CIR150, CIR170, CIR200W
Bit Diameter: 65mm, 75mm, 85mm, 90mm, 110mm, 115mm, 120mm, 155mm, 160mm, 165mm, 170mm, 180mm, 210mm, 220mm
The information you may like to know before order:
1. Method of payment: T/T(Telegraphic Transfer)or Western Union or L/C at sight.
2. Handing time for an order: Based on order quantity, normally it takes 25 days for production. Only 2 or 3 days if we have stock on your request size.
3. Shipping way: Sample order, we suggest courier express like DHL/UPS/TNT by air. Bulk order we suggest by sea or by air.
4. Quality control: We have our own experienced QC, there will be strict inspection and testing for every order before shipping out.
Production process:
1. Raw material-2. Making bits body-3. Making bit face-4. Heat treatment-5package.
About us:
Our factory has been specialized in manufacturing drilling tools and spare since 2000.
We have advanced technology and equipment.
Our technician has more that 10 years professtional working experience.
Rock drilling tools are exported throughout the word. Main market: Norway. Turkey. Canada. Australia. Brazil. Iron. India. UAE
We have professional technicians, advanced machine, responsible sales team
|
diam(mm) |
No.*Button dia |
connection |
item no. |
|
76 |
3*12 5*12 |
CIR76 |
QDZ876-CIR76 |
|
90 |
4*13 6*14 |
CIR90 |
QDZ1090-CIR90 |
|
100 |
5*13 6*14 |
CIR90 |
QDZ11100-CIR90 |
|
110 |
7*13 6*14 |
CIR90 |
QDZ13100-CIR90 |
|
120 |
8*13 6*14 |
CIR90 |
QDZ14120-CIR90 |
|
130 |
8*13 7*14 |
CIR90 |
QDZ15130-CIR90 |
|
120 |
8*13 6*14 |
CIR110 |
QDZ14120-CIR110 |
|
130 |
8*13 7*14 |
CIR110 |
QDZ15130-CIR110 |
|
140 |
8*13 7*14 |
CIR110 |
QDZ15140-CIR110 |
|
150 |
10*13 9*14 |
CIR110 |
QDZ19150-CIR110 |
|
160 |
10*14 9*16 |
CIR110 |
QDZ19160-CIR110 |
|
170 |
10*14 9*16 |
CIR110 |
QDZ19170-CIR110 |
