Product Description

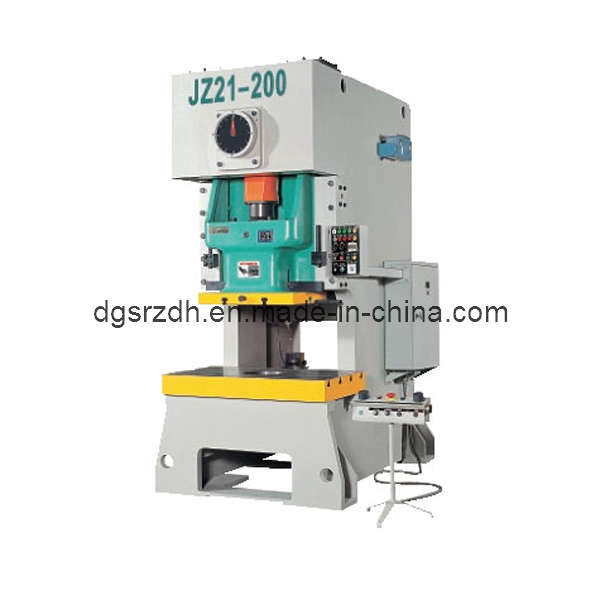

JZ21 series high performance press with wet clutch and hydraulic overload protector
Wet pneumatic friction clutch, hydraulic safety device
Welded body with steel plate and high intensity
Combined wet multi discs friction clutch and brake
Cluster gear adopts the flooding oil lubrication
Six-face rectangle lengthen guide
Equipped with hydraulic overload protecting device
JZ21-45 adopts manual shut height adjustment with scale display
JZ21-45 can equip with die set height adjustment motor, the value will be displayed by digital
JZ21-63 and above type adopts electric shut height adjustment with digital display
Equipped with lifting balance cylinder
Duplex values imported
Electric compelling grease lubrication system
Balancing cylinder adopts manual lubrication system
One set of blowing device
Electronic cam control
Controlled by PLC with international brand
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand
Equipped with optional air cushion device, photoelectric protector, which can used to work with various automatic equipments
|
model |
JZ21-45 |
JZ21-63 |
JZ21-80 |
JZ21-110 |
JZ21-125 |
JZ21-160 |
JZ21-200 |
JZ21-200B |
JZ21-250 |
JZ21-250B |
JZ21-315 |
JZ21-400 |
|
nominal force |
kn |
450 |
630 |
800 |
1100 |
1250 |
1600 |
2000 |
2000 |
2500 |
2500 |
3150 |
4000 |
|
stroke under nominal force |
mm |
4 |
4 |
5 |
6 |
6 |
6 |
6 |
6 |
8 |
8 |
8 |
10 |
|
slide block stroke |
mm |
100 |
120 |
140 |
160 |
160 |
160 |
180 |
200 |
200 |
250 |
200 |
200 |
|
number of stroke |
fixed |
spm |
80 |
70 |
60 |
50 |
50 |
40 |
35 |
35 |
30 |
30 |
30 |
25 |
|
variable (optional) |
spm |
70-90 |
60-80 |
50-70 |
40-60 |
40-60 |
35-50 |
30-40 |
30-40 |
25-35 |
25-35 |
25-35 |
20-30 |
|
max die set height |
mm |
270 |
300 |
320 |
350 |
350 |
350 |
390 |
450 |
430 |
500 |
430 |
430 |
|
die set height adjustment |
mm |
60 |
80 |
80 |
80 |
80 |
110 |
110 |
110 |
120 |
120 |
120 |
120 |
|
distance from slide block centre to the frame |
mm |
230 |
300 |
300 |
350 |
350 |
380 |
390 |
390 |
420 |
420 |
420 |
420 |
|
worktable dimensions (f.b*l.r) |
mm |
440*810 |
580*900 |
580*1000 |
680*1150 |
680*1150 |
740*1300 |
760*1400 |
760*1400 |
800*1400 |
800*1400 |
800*1400 |
800*1400 |
|
dimensions of worktable hole |
mm |
180*30*160 |
200*40*180 |
200*40*180 |
260*50*220 |
260*50220 |
300*50*260 |
300*50*260 |
300*50*260 |
300*50*280 |
300*50*280 |
300*50*280 |
300*50*280 |
|
thickness of bolster |
mm |
110 |
110 |
120 |
140 |
140 |
150 |
160 |
160 |
170 |
170 |
170 |
170 |
|
hole dimensions in bed (diameter/f.b*l.r) |
mm |
300*300 |
3990*460 |
390*520 |
420*540 |
420*540 |
480*600 |
470 |
470 |
370*570 |
370*570 |
440*580 |
440*580 |
|
dimensions of slide block bottom surface(f.b*l.r) |
mm |
340*410 |
400*480 |
420*560 |
500*650 |
540*680 |
580*770 |
600*800 |
600*800 |
650*850 |
650*850 |
650*850 |
690*900 |
|
size of the handle hole (diameter * depth) |
mm |
40*60 |
50*80 |
50*80 |
60*80 |
60*80 |
65*85 |
65*90 |
65*90 |
70*90 |
70*90 |
70*90 |
70*90 |
|
distance between columns of body |
mm |
550 |
560 |
640 |
760 |
760 |
850 |
870 |
870 |
960 |
960 |
920 |
960 |
|
main motor capacity |
kw |
5.5 |
7.5 |
7.5 |
11 |
11 |
15 |
18.5 |
18.5 |
22 |
22 |
30 |
37 |
|
outline dimension (f.b*l.r*h) |
mm |
1390*1200*2400 |
1580*1210*2520 |
1640*1280*2780 |
2310*1450*3150 |
2130*1490*3150 |
2530*1630*3280 |
2500*1580*3320 |
2500*1580*3420 |
2960*1640*3550 |
2730*1640*4060 |
2770*1650*2550 |
2830*1680*3890 |
|
net weight |
kg |
3450 |
5400 |
7000 |
9840 |
10400 |
14920 |
17000 |
17350 |
23500 |
24500 |
25000 |
29500 |
