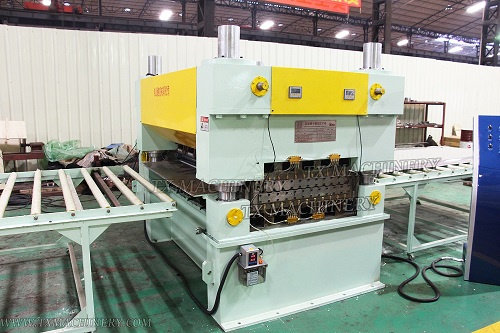

High Precision 4hi Leveler

High Precision 4hi Leveler
Price: US $ 1800/Yard
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: TX01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description


Features:

Frame structure: high strength, good rigidity
Protect material from scratching and marking

High leveling accuracy

Rolls: work roll, middle roll, backup roll.

Roll configuration: 4Hi

Roll Material: GCr15, 9CrSi, 9Cr2Mov for option

Treatment for roll: grinding, hard chrome plated, polishing.

Equipped with clearance removing device to guarantee the satisfactory parallelism.

Surface hardening gear reducer. Universal joint: structural alloy steel

Digital readout to display the adjustment amount.


Product Description
High Precision 4 High Leveler
Main technical parameters:
No. Description Technical Parameters
1 Material Hot rolled steel
2 Max thickness 3.0mm
3 Min thickness 1.0mm
4 Max width 650mm
5 Yield 620Mpa
6 Tensile 710Mpa
7 No. of work roll 19pcs
8 Dia. of work roll Ø80mm
9 Space between work roll 85mm
10 Dia. of backup roll Ø80mm
11 No. of backup roll row 2rows
12 Leveling speed 0-40m/min
13 Moving distance of work roll -5mm - +100mm
14 Moving speed of work roll 36mm/min
15 Main motor power 18.5kw
16 Power of work roll motor 2*1.5kw
17 Leveling accuracy <=1.0mm/1000*1000mm
18 Time from 0m/min to 30m/min 4 second .
Foshan Te Xiang Machinery Co., Ltd, located in Foshan China, with long history more than 30 years, have been engaged in manufacturing high quality metallic processing machines, including slitting line, cut to length line, flying shear cut to length line, high frequency welded tube mill line, roll forming machines and etc. We employ more than 300 people and have two factories with area over 70, 000 square meters.

Our goal and what we have achieved is to provide customers with advanced technology, high cost efficient solution, high quality product, and excellent service. For the sake of this, we put a tremendous amount of focus on the R&D; Set up the strict quality management system; Establish a team of experienced technical workers for the installation, commissioning, startup and etc; Also a professional service team to guarantee quick response to all the customers' inquiry, request and need, for both pre-sales and after-sales. That's why our customers would like to have long term cooperation with us after the first.
