| Price: | US $ 4/Piece |
|---|---|
| Trade Terms: | FOB,CIF,DAP |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Money Gram,Western Union |

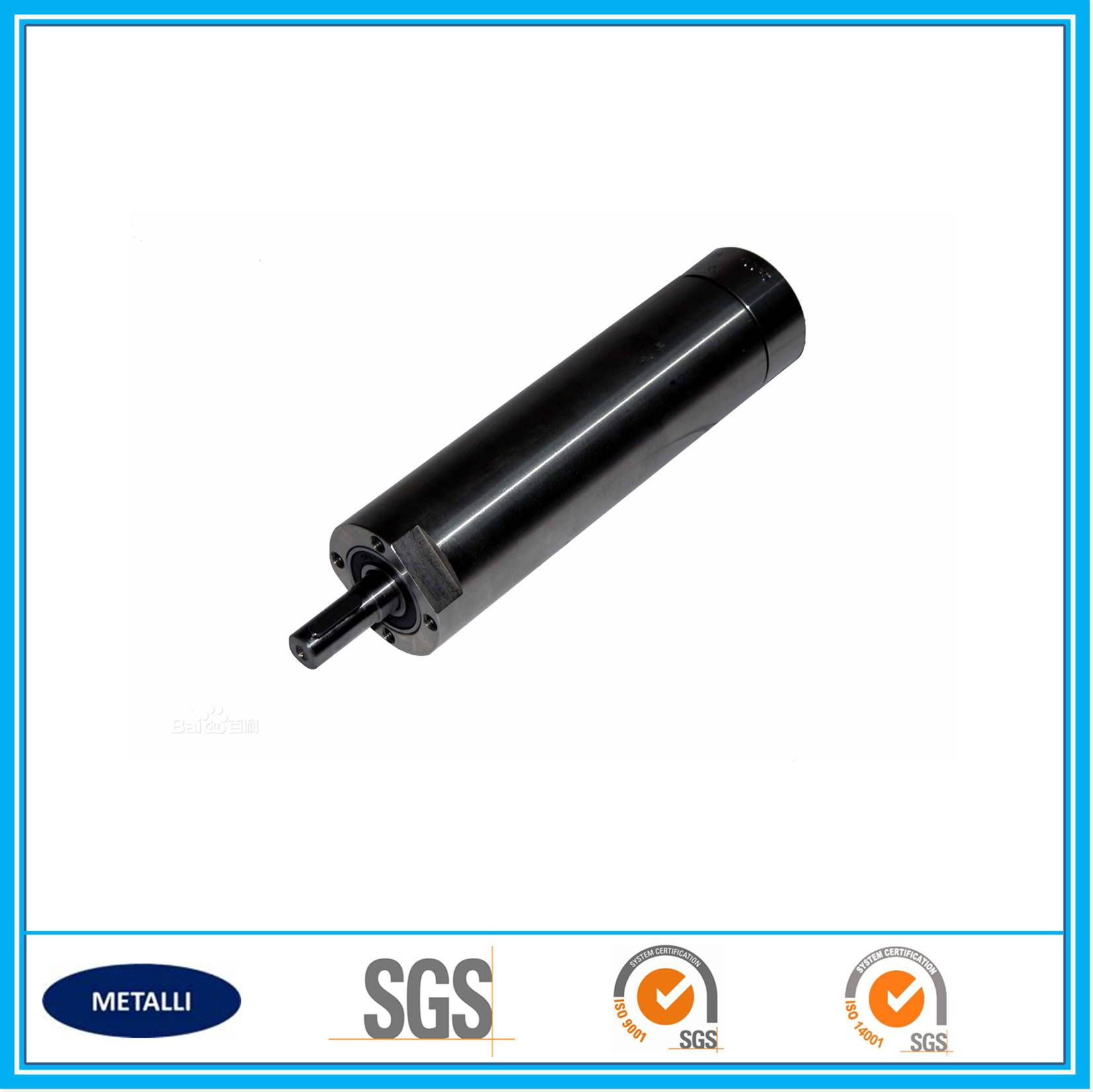

| Prod Model: | mpsh 1002 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shaft Material: | Carbon Steel or Alloy Steel |
| Length: | up to 500 mm |
| Diameter: | up to 50 mm |
| Ra: | 0.64 to 2.5 Um |
| Radial Circular Beat: | 0.01 to 0.03 mm |
| Precision: | It6 to It9 |
| Surface Finish: | Suitable Surface Finish as Per Requirements |
| Shape: | Round |
| Packing Way: | Best Suitable Packing Way |
| Application: | Industrial Components |
| Load: | Drive Shaft |
| Stiffness & Flexibility: | Stiffness / Rigid Axle |
| Axis Shape: | Straight Shaft |
| Shaft Shape: | Hollow Axis |
| Material: | Carbon Steel or Alloy Steel |
| 1. Material | ||||||||||||||
| No. | Material | |||||||||||||
| 1.1 | carbon steel, alloy steel, stainless steel, etc. | |||||||||||||
| 2. Product size and tolerance | ||||||||||||||
| No. | Specification | Size | Tolerance | |||||||||||
| 2.1 | Length (mm) | Up to 500, or custom | min ±0.01 | |||||||||||
| 2.2 | Diameter (mm) | Up to 50, or custom | IT6-IT9 class | |||||||||||
| 2.3 | Radial circular beat (mm) | 0.01 to 0.03 mm or custom | - | |||||||||||
| 2.4 | Surface roughness Ra (um) | 0.64 to 2.5 | - | |||||||||||
| 3. Surface finish | ||||||||||||||
| No. | Item | Description | ||||||||||||
| 3.1 | Surface finish | Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting | ||||||||||||
| 3.2 | Surface roughness (Ra) | from 2.5 um to 3.2um depending on detailed requirement | ||||||||||||
| 4. Packing,Shipping and others | ||||||||||||||
| No. | Item | Description | ||||||||||||
| 4.1 | Packing | To be packed in plywood case | ||||||||||||
| 4.2 | Marking | Each box to be legibly marked with the name of the manufacturer or supplier, the designation of material,condition,dimensions and weight | ||||||||||||
| 4.3 | Shipping tools | Ship goods by van to departune port then by sea to desitination port | ||||||||||||
| 5.Quality management and spot management | ||||||||||||||
| No. | Item | Description | ||||||||||||
| 5.1 | Quality control | 1. Quality assurance a. Incoming material quality assurance; b. Process quality assurance; c. First sample quality assurance; d. Final quality assurance. 2. Process management-The right results are from the right process a. Production process card control; b. Standard operational procedure;c.Job certification;d. Quality chart monitor. 3. Equipment and facility management a. Periodic maintenance; b.Preventative maintenance. 4. Mold management a. Mold life management; b.Periodic and preventative maintenance; c. Periodic inspection. | ||||||||||||
| 5.2 | Inspection Tools | Altimeter,Vernier caliper,Micrometer,3D coordinate measuring instrument,gauge,etc. | ||||||||||||
| 5.3 | Spot management | "5S" management (sort,set in order,shine,standard,sustainable). | ||||||||||||
