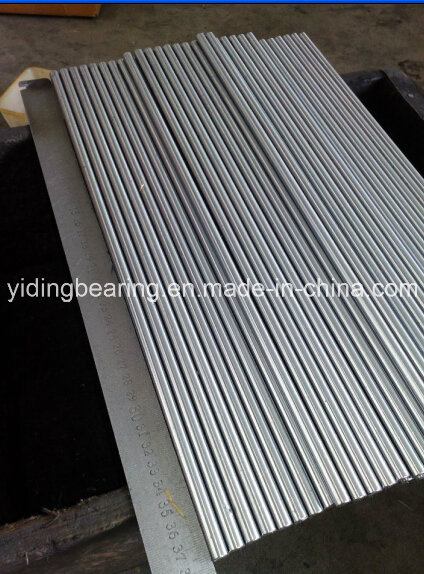

High Precision Hardened Linear Shaft 8mm

Prod Model:	Shaft 8mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Gcr15, Ss, High Carbon Steel
Cetrification:	ISO 9001:2008
Place Of Origin:	Shandong China
Precision Rating:	P0 P6 P5
Express:	TNT, DHL, FedEx, EMS

Product Description

High Precision Hardened Linear Shaft 8mm

Quick Details
Structure: Flexible
Material: Steel, bearing steel
Coatings: Chrome
Length: As your request
Model Number: SFC3-SFC80
Color: Silver
Hardness(HRC): 58-62
Surface hardening thickness: 0.8-2.5mm

Specifications
Cnc linear shaft
1 high precision high quality
2 high rustproof
3 chrome plated
4 used with high precision linear bearing

Packaging & Delivery
Packaging Detail: 1 Standard export packing 2 according to the customers'request
Delivery Detail: Depend on your quantity or as your request

MODEL NO.	OUTER DIAMETER	DIAMETER TOLERANCE		LENGTH	DEPTH OF EFFECTIVE HARDENED LAYER	WEIGHT(kg/m)
		g6	h6
SFC3	3	-0.004  -0.012	0  -0.008	100-2000	>0.8	0.18
SFC4	4					0.18
SFC5	5					0.19
SFC6	6					0.22
SFC8	8	-0.005  -0.014	0  -0.009	100-2000		0.40
SFC10	10	-0.005  -0.014	0  -0.009	100-2000	>1.0	0.62
SFC12	12	-0.006  -0.017	0  -0.011	100-3000		0.89
SFC13	13			100-3500		1.04
SFC16	16			100-4000	>1.5	1.58
SFC20	20	-0.007  -0.020	0  -0.013	100-6000		2.47
SFC25	25					3.85
SFC30	30				>2.0	5.55
SFC35	35	-0.009  -0.025	0  -0.016			7.55
SFC40	40				>2.5	9.87
SFC50	50					15.4
SFC60	60	-0.010  -0.028				22.2
SFC80	80					39.5




Type LM-UU: This is the metric dimension series with seal used most frequently in Korea and Japan.
Type LME-UU: This is the metric dimension series with seal used most frequently in Europe.
Type LMB-UU: This is the inch dimension series with seal used most frequently in UK&USA


LM linear bearing: LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM8S, LM10UU, LM12UU, LM13UU, LM16UU, LM20UU, LM25UU, LM30UU, LM35UU, LM40UU, LM50UU, LM60UU, LM80UU, LM100UU

LME linear bearing:
LME3UU, LME4UU, LME5UU, LME6UU, LME8UU, LME8S, LME10UU, LME12UU, LME13UU, LME16UU, LME20UU, LME25UU, LME30UU, LME35UU, LME40UU, LME50UU, LME60UU, LME80UU, LME100UU

LMB linear bearing:
LMB4UU, LMB6UU, LMB8UU, LMB10UU, LMB12UU, LMB16UU, LMB24UU, LMB32UU

LM Open Series linear bearing: LM10OPUU, LM12OPUU, LM13OPUU, LM16OPUU, LM20OPUU, LM25OPUU, LM3OOPU, LM35OPUU, LM40OPUU, LM50OPUU, LM60OPUU, LM80OPUU, LM100OPUU

KH type linear bearing:
KH0622PP, KH0824PP, KH1026PP, KH1228PP, KH1630PP, KH2030PP, KH2540PP, KH3050PP, KH4060PP, KH5070PP


Stell Cage Linear Bearing: LM8GA, LM10GA, LM12GA, LM16GA, LM20GA, LM25GA, LM30GA, LM35GA, LM40GA, LM50GA, LM60GA


SDM series Steel cage linear bearing(As same as Ease SDM series): SDM16, SDM20, SDM25, SDM30, SDM35, SDM40, SDM50, SDM60, SDM80, SDM100, SDM120, SDM150


Flange Type Linear Bearing:
LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU, LMF80UU, LMF100UU

LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK13UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU, LMK100UU

LMT6UU, LMT8UU, LMT10UU, LMT12UU, LMT13UU, LMT16UU, LMT20UU, LMT25UU, LMT30UU.

Linear Slide Unit:
1. Close Type:
SC8UU, SC10UU, SC12UU, SC13UU, SC16UU, SC20UU, SC25UU, SC30UU, SC35UU, SC40UU, SC50UU, SC60UU (normal type)

SC8WUU, SC10WUU, SC12WUU, SC13WUU, SC16WUU, SC20WUU, SC252UU, SC30WUU, SC35WUU, SC40WUU, SC50WUU (long type) SC8VUU, SC10VUU, SC12VUU, SC13VUU, SC16VUU, SC20VUU, SC25VUU, SC30VUU, SC35VUU, SC40VUU, SC50VUU(Short type)

2. Open Type: SBR10UU, SBR12UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR40UU, SBR50UU(Normal type) SBR10LUU, SBR12LUU, SBR13LUU, SBR16LUU, SBR20LUU, SBR25LUU, SBR30LUU, SBR35LUU, SBR40LUU, SBR50LUU(Long type) TBR16UU, TBR20UU, TBR25UU, TBR30UU (This type with the flange at the pillow block)

Shaft Support: SK/SHF SHAFT SUPPORT: SK8, SK10, SK12, SK13, SK16, SK20, SK25, SK30, SK35, SK40, SK50, SK60 SHF8, SHF10, SHF12, SHF13, SHF16, SHF20, SHF25, SHF30, SHF35, SHF40, SHF50,
