| Prod Model: |
J21S-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Deep-Throat Punching Machine |
| Capacity: |
400 |
| Power Source: |
Mechanical Drive |
| Structure: |
Rigid |
| Color: |
Customized |
| Max. Die Height: |
230mm |
| Bolster: |
420mm*650mm |
| Forging Forming Method: |
Mold Forging |

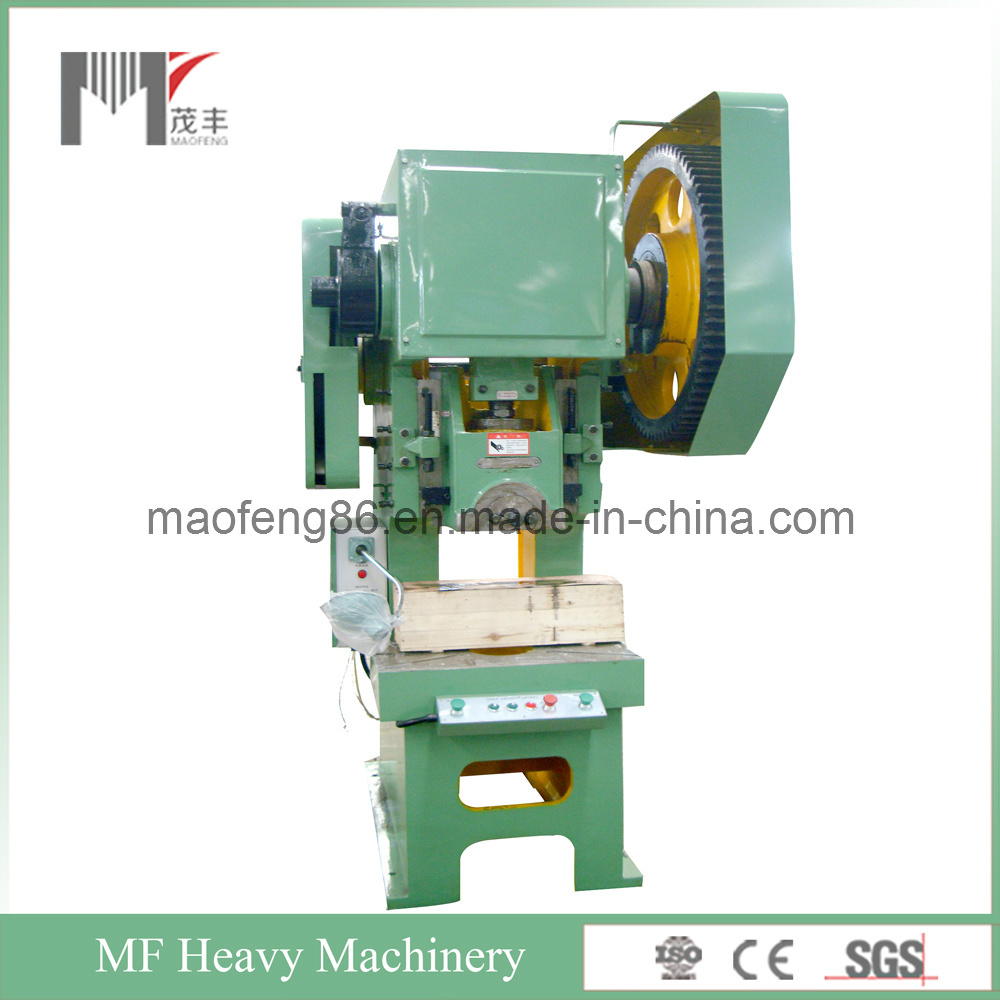

Product Description
Increased throat deep and working area.
Adopts horizontally placed crankshaft.
Rigid rotated bond clutch.
Manual shut height adjustment with scale display.
|
|
J21S-40 |
|
Capacity |
kN |
400 |
|
Nominal Force |
mm |
4 |
|
Slide Stroke |
mm |
80 |
|
SPM |
min-1 |
50 |
|
Max. Die Height |
mm |
230 |
|
Die Height Adjustment |
mm |
40 |
|
Between Slide Center & Frame |
mm |
710 |
|
Bolster (FB×LR) |
mm |
420×650 |
|
Bolster Opening |
mm |
Φ180 |
|
Bolster Thickness |
mm |
70 |
|
Slide Area (FB×LR) |
mm |
210×250 |
|
Shank Hole (Dia.×Dpth) |
mm |
Φ50×70 |
|
Between Columns |
mm |
280 |
|
Motor Power |
kW |
4 |
|
Outline Size (FB×LR×H) |
mm |
1970×1100×2300 |
|
Weight |
kg |
3820 |
Established in 2006. MaAnShan Maofeng Heavy Machinery Manufacturing Co., Ltd. It passed authentication of the ISO9001: 2000 quality management system in 2005, and CE certificate in 2008. Dedicate to product development, quality and service improvement, creating greater value for global customers to enhance the international competitiveness of China forging equipment industry.
It mainly produces brand series products: Hydraulic swing/Guillotine Shear, Hydraulic plate bending machine, press, Cutting machine. Three/Four roll bending machine etc, Four series of more than one hundred models. The large electro-hydraulic servo press brake WADF series filled the gap in AnHui province and won good praise. And have exported to Europe and America, Southeast Asia, Middle East such countries.
We firmly believe that through our unremitting effofts, we are able to meet your needs, and achieve win-win cooperation
