High Precision Pellet Mill Parts for Animal Pellet Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
customized |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Compression Ratio: |
Customized |
| Hole Diameter: |
1.5mm-14mm |
| Hardness: |
HRC 52-56 |
| Die Hole Processing: |
Germany Gun Drilling |
| Ring Die Compatible Type: |
for All Main Brands Pellet Mill |
| Type Of Ring Dies: |
as Per The Drawing of The Clients |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Material: |
Stainless Steel, Alloy Steel, Carbon Steel |
Product Description

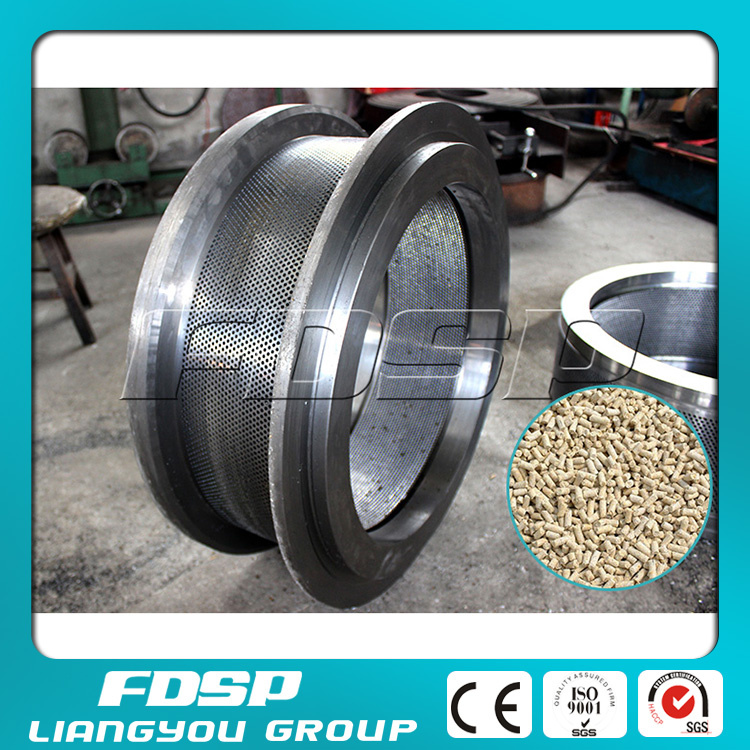

High precision pellet mill parts for animal pellet machine

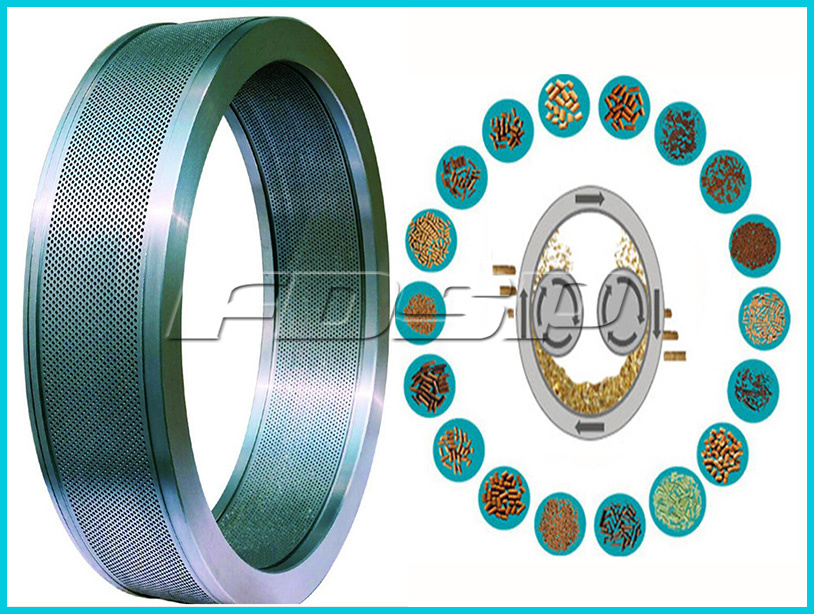

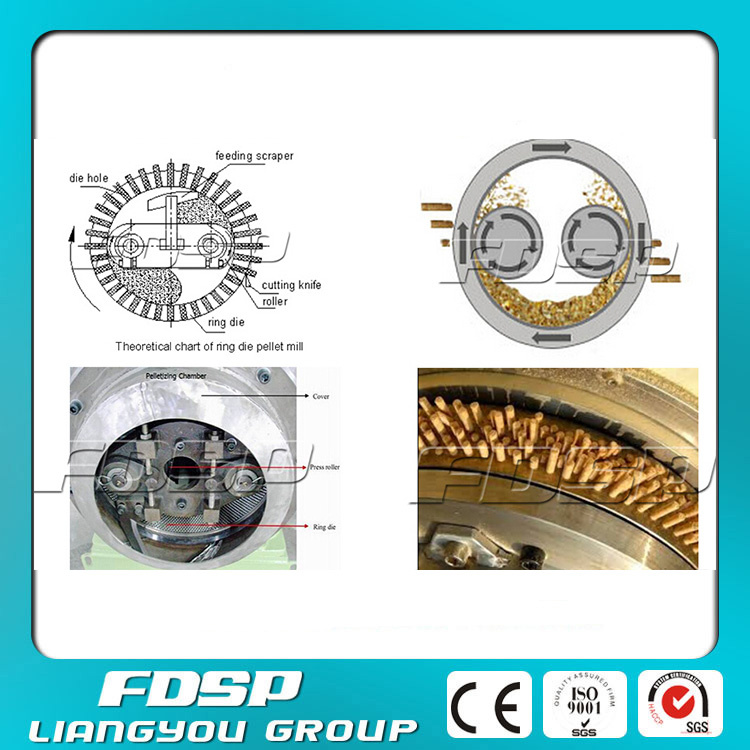

Introduction & Application of Ring dieRing die is very important part of ring die pellet machine in the whole manufacturing process. The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.
Applicable for animal feed pellet machine: poultry feed pellet machine, livestock feed pellet machine, aqua feed pellet machine etc. Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.Fertilizer pellet machine etc.

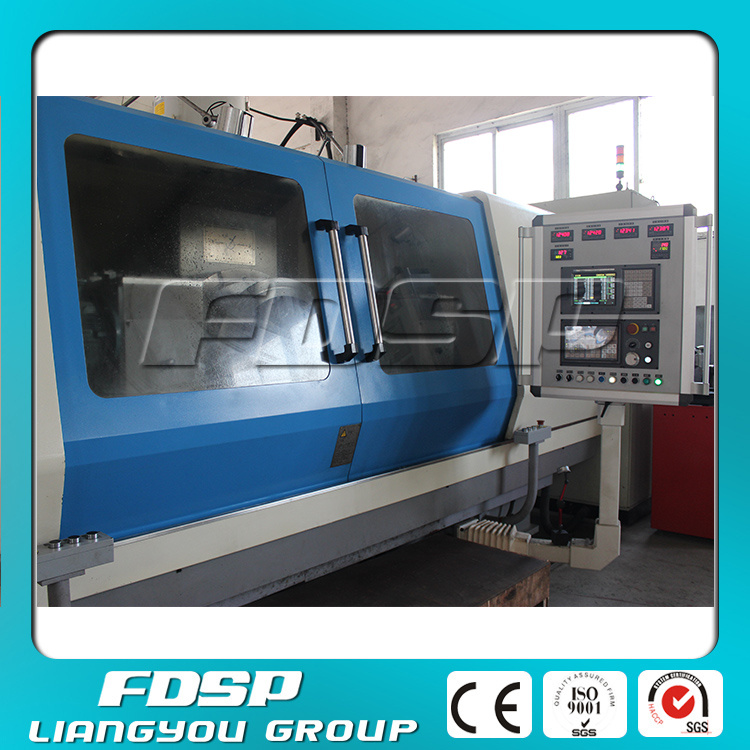

Specification customized: We can supply ring die for all the main brands of pellet machine such as ANDRITZ, CPM, IEMME, JKAP, SOGEM, SPROUT(UMT), MATADOR(UMT), MABRIK,BUEHLER, PALADIN, PTN, PROMILL,YEMMAK etc.Custom dimensions and drawings of ring die are welcome. Advantages of FDSP ring dies:20 years of experience in ring die productionHigh chromium high carbon content steelsExtremely precise manufactureAdvanced imported equipment High hardness after vacuum heat treatmentRapid delivery timesTest and control before shipment Long service time Main Manufacturing Process of Ring die 1.Forging and Lathing:Extremely precise forging and lathing assure high dimensional accuracy, bright and clean surface. 2.Die Hole processingAdvanced Germany gun drill equipment, tools and drilling hole software are used in die hole processing:
3.Vacuum heat treatmentRing die surface: no oxidation reaction;Die hole inner surface: original smoothness; High stability, High hardness; High tenacity Compression Ratio of Ring DieGenerally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality.
Compression ratio should be calculated based on raw material for making pellets and type of feed.With many years pellet die manufacturing and research experience of FDSP GROUP, we provide some general data of ring die's compression ratio for your reference:Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.| | Hole Diameter(mm) | Compression Ratio |
| Ring die for animal feed pellet machine | | |
| Poultry&livestock feed | 2.5 - 4 | 1:4-1:11 |
| Fish feed | 2.0 - 2.5 | 1:12-1:14 |
| Shrimp feed | 0.4 - 1.8 | 1:18-1:25 |
| Ring die for biomass pellet machine | | |
| | 6.0 - 8.0 | 1:5-1:8 |
The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole, etc. Different die holes structure are suitable for different raw material and feed formula for making pellets. WARM TIPSHow to maintain and inspect the ring die:
1. The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal.
2. Material should be evenly distributed across the whole working area
3. Make sure that all holes work uniformly, opening the clogged holes if necessary.
4. When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring. About us FDSP is specialized in the production of ring die and rollers for all the main brands of pellet mills, with more than 20 year of manufacturing experience and professional advanced technical team, we insist on providing high quality and strong durable products to our customers. FAQ:1. Q: Are you a trading company or a manufacturer?A: We are a manufacturer, which has almost 20 years of experience in this industry.2. Q: Do you have some foreign customers using your pellet mill die?A: Yes, we have.Our company has established business relationships with customers in Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.3. Q: How long can your ring die be used? A: Our ring die has long service life. The service life time is about 1000-1200 hours. 4. Q: What are the factors affecting the lifespan of a die?A: There are many factors affect the service life of a die:
The composition of raw material
The characteristics of raw material
The moisture and fat content of material before pelletizing The particle size of the mash The heat conditioning of the mash The pellet mill controls Many others5. Q: How to buy your pellet mill spare parts?A: Just tell us the brand and model of your pellet machine, we will make the precise pellet mill spare parts for you.
