| Prod Model: |
KDP30HC |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Material: |
Iron Pump |
| Max Lift: |
75m |
| Material: |
Cast Iron |
| Structure: |
Single-stage Pump |
| Application: |
Sewage Pump |
| Theory: |
Centrifugal Pump |
| Power: |
Diesel Engines |
| Type: |
Centrifugal |
| Industry: |
Irrigation |
| Media: |
Water |
Product Description
This series of diesel powered cast iron water pump units are manufactured by Kaiao power.
Brief introduction:
1. This type is the hot sale of iron casting series, with 3'' diameter of inlet and outlet.(Iron casting) Diesel engine, suits for many removable working conditions.
2. Engineering steel shell well absorb shock and stress. High-duty shock rubber absorb kickbacks.
3. Centrifugal type, make the flow larger to 38m³ /h, and long suction lift to 8m,large engine,make the lift to 55m.
4. High grade seal level, confirm high grade of pumping water.
5. Built-in air intake system, provide cleaner air against dust, humid...To engine for long life and improve durability.
6. Electric start and reliable governors make operating easy.
7. Energy-saving and low pollution make outstanding performance, achieve CE, ISO9001 and many domestic standards.

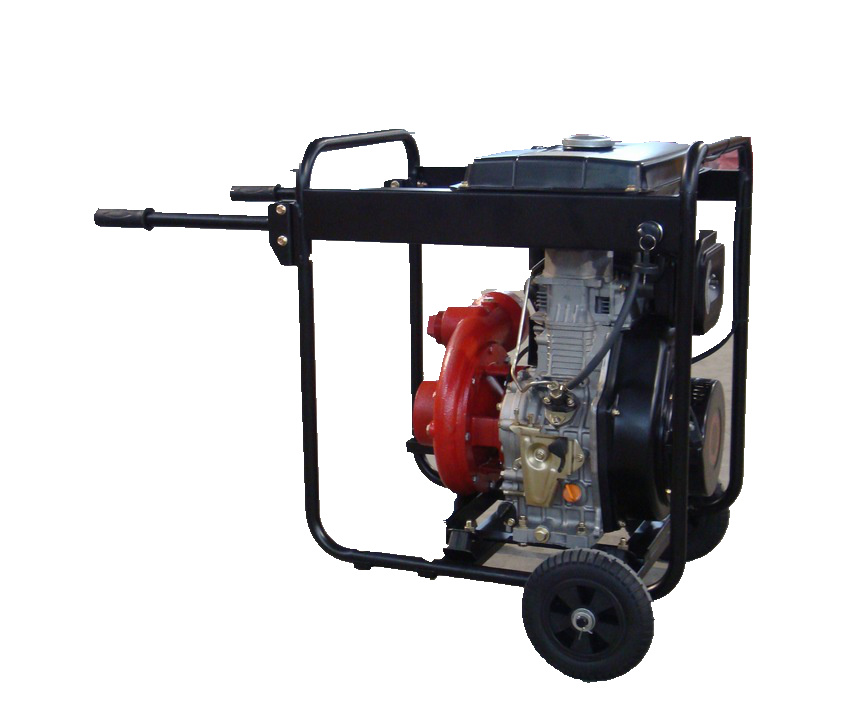

| Diesel Water Pump(IRON) 3" High Pressure |
| with handles,and 2*9inch wheels |
| Model | KDP30HC |
| Diameter(mm) (inch) | 80(3" ) |
| Max. flow(m3/h) | 47 |
| Rated total head(m) | 75 |
| Max. suction head(m) | 8 |
| Rotational speed(rpm) | 3600 |
| Self-priming time(s/4m) | 120 |
| Pump shaft | Steel |
| Pump housing | cast iron |
| Impeller | cast iron |
| connection type | direct |
| Self-priming time(s/4m) | 40 |
| Engine model | KA186FA |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Bore*stroke(mm) | 86*72 |
| Displacement (L) | 0.418 |
| Power (kW) | 6.3/3600 |
| Fuel consumption rate(g.kW/h) | 281 |
| Compression ratio | 19 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Electric starter |
| Fuel oil model | Summer:0#,Winter:-10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.1 |
| Fuel tank capacity (L) | 12.5 |
| Dimension (L*W*H)(mm) | 675*565*735 |
| Net weight(Kg) | 62 |
| Gross weigt(Kg) | 70 |
