| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
ASTM A105 |
| Standard: |
Asme B 16.11 |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description

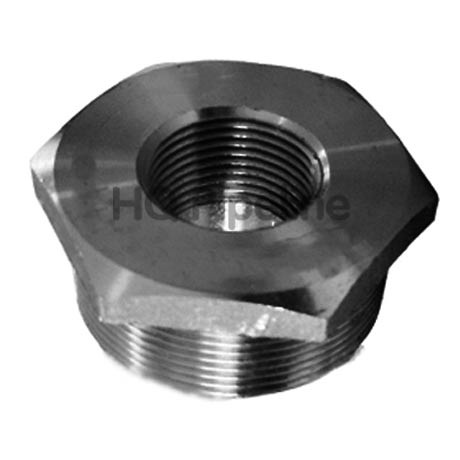

Carbon Steel Forged Pipe Fittings - Hexagon Bushing
Details of forged pipe fitting
1. Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, sage nipple, bull plug, reducer insert, pipe nipple etc.
2. Connection: Socket Welde or Threaded (ISO, DIN, NPT, BSPT)
3. Size Range: 1/8" - 4"(6mm - 100mm)
4. Pressure Rating:
Socket welding Wog 3000, 6000, 9000 LBS
Thread Wog 2000, 3000, 6000 LBS
5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79\ 83\ 95\97
2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).
3) Size of raw material: Dia. 19-85mm round bar.
6. Technology: Forged
7. Packing: Wooden cases or wooden pallet or as per customers requirement
8. Delivery Time: 25 days after order conformed
9. Payment: By T/T or L/C
10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding,
Papermaking, construction etc
Qingdao HQ Import & Export Co., Ltd, the export office of HQ Pipeline, which is a professional manufacturer & exporter of all kinds of pipe fittings and valves in China: Forged Steel Pipe Fittings, Flanges, Butt Weld Pipe Fittings, Nipples and Coupling, UL/FM Ductile Iron Grooved Pipe Fittings, Gate Valve, Butterfly Valve, Check Valve, Strainers, Ball Valve...and OEM/ODM service, which are widely used in the field of petroleum, natural gas, ship building, metallurgy, electric power, chemical industries, fire protection etc.
HQ Pipeline plants are well equipped with advanced production and inspection equipments: 600T Intermediate frequency push-type forming machine, 3500T Hydraulic-pressure machine, 1/5/8tons forging hammer, air forging hammer, high precision machine tools, electrical heating furnaces, heat treatment furnaces, PMI detection equipment, tensile machines, impact testers, hardness testers, metallographic analyzers, digital UT flaw detectors, etc. And also equipped with skilled workers, several engineers.
Through continuous input of R&D, HQ Pipeline strives to technical innovation, and develops new products constantly, provide OEM/ODM service for non-standard products according to customer's drawings or samples.
With maintaining the Total Quality Management (TQM) by Quality Control Section, all products are subject to pass strict inspection at each stage of the production process, from starting material handling to finished product shipping. For years, HQ Pipeline plants have been successively qualified to produce pressure pipeline unit, honored with "Nationwide Quality Credit AAA Brand Enterprise" and "Contract abiding company", certified with ISO9001-2008.
Years of professional pipeline production technics and rich experience, strictly quality control and assurance, years of export experience, reputed pre-sale and after-sale service, continuous development and improvement, we believe that HQ will be your premier partner. We welcome your visit, and look forward to committed to meet your any need for the pipeline products.
