| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Ton |
| Pay Type: | T/T,Western Union |
| Prod Model: | Aluminum Tread Plate |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: | 1mm-6mm |
| Width: | 20mm-1650mm |
| Length: | Per Customer's Request |
| Package: | Export Standard Packing |
| Place Of Origin: | Shenzhen,China |
| Delivery: | 7-30 Days After Deposit |
| Alloy: | Alloy |
| Type: | Aluminum Sheets |
| Surface Treatment: | Embossed |
| Shape: | Flat |
| Technique: | Extruded |
| Certification: | ASTMB |
| Application: | Glass Wall |
| Temper: | H12, H14, H16, H18, H22,etc |
| Grade: | 1000 Series-8000 Series |

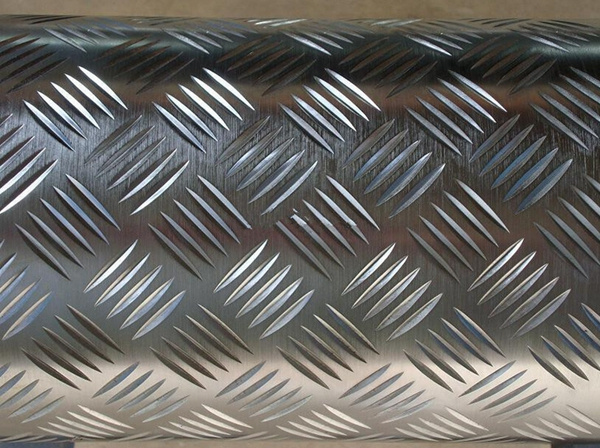

Embossed Aluminum Sheet
Specification
1. Grade:
1) Series: 1050 1060 1070 1100 1200 1235 etc.
2) Series: 3003 3004 3005 3104 3105 3A21 etc.
3) Series: 4045 4343 etc.
4) Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
5) Series: 6061 6063 6082 6A02 etc.
6) Series: 7005 etc.
7) Series: 8006 8011 8079 etc.
2. Thickness:0.20mm-320mm
3. Width:8mm-2400mm
4) Length: 1220 or per customer's request
5) Temper: all available, H1X, H2X, H3X, O, HXXX
6) Custom Size: 4'x8' or per customer's request Continuous casting and hot rolled both available
Parameters
Chemical composition
Chemical composition% | |||||||||
Grade | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Al |
1050 | 0.250 | 0.400 | 0.050 | 0.050 | 0.050 | - | - | 0.050 | 99.50 |
1060 | 0.250 | 0.350 | 0.050 | 0.030 | 0.030 | - | - | 0.050 | 99.60 |
1070 | 0.200 | 0.250 | 0.040 | 0.030 | 0.030 | - | - | 0.040 | 99.70 |
1100 | Si+Fe:0.95 | 0.05-0.2 | 0.050 | - | - | 0.100 | - | 99.00 | |
1200 | Si+Fe:1.00 | 0.050 | 0.050 | - | - | 0.100 | 0.050 | 99.00 | |
1235 | Si+Fe:0.65 | 0.050 | 0.050 | 0.050 | - | 0.100 | 0.060 | 99.35 | |
3003 | 0.600 | 0.700 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.100 | remains |
3004 | 0.300 | 0.700 | 0.250 | 1.0-1.5 | 0.8-1.3 | - | - | 0.250 | remains |
3005 | 0.600 | 0.700 | 0.250 | 1.0-1.5 | 0.20-0.6 | 0.100 | - | 0.250 | remains |
3105 | 0.600 | 0.700 | 0.300 | 0.30-0.8 | 0.20-0.8 | 0.200 | - | 0.400 | remains |
3A21 | 0.600 | 0.700 | 0.200 | 1.0-1.6 | 0.050 | - | - | 0.10 | remains |
5005 | 0.300 | 0.700 | 0.200 | 0.200 | 0.50-1.1 | 0.100 | - | 0.250 | remains |
5052 | 0.250 | 0.400 | 0.100 | 0.100 | 2.2-2.8 | 0.15-0.35 | - | 0.100 | remains |
5083 | 0.400 | 0.400 | 0.100 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.250 | remains |
5154 | 0.250 | 0.400 | 0.100 | 0.100 | 3.1-3.9 | 0.15-0.35 | - | 0.200 | remains |
5182 | 0.200 | 0.350 | 0.150 | 0.20-0.50 | 4.0-5.0 | 0.100 | - | 0.250 | remains |
5251 | 0.400 | 0.500 | 0.150 | 0.1-0.5 | 1.7-2.4 | 0.150 | - | 0.150 | remains |
5754 | 0.400 | 0.400 | 0.100 | 0.500 | 2.6-3.6 | 0.300 | - | 0.200 | remains |
6061 | 0.40-0.8 | 0.700 | 0.15-0.40 | 0.150 | 0.8-1.2 | 0.04-0.35 | - | 0.250 | remains |
6063 | 0.20-0.6 | 0.350 | 0.100 | 0.100 | 0.45-0.9 | 0.100 | - | 0.100 | remains |
6082 | 0.7-1.3 | 0.500 | 0.100 | 0.40-1.0 | 0.6-1.2 | 0.250 | - | 0.200 | remains |
6A02 | 0.50-1.2 | 0.500 | 0.20-0.6 | Or Cr0.15-0.35 | 0.45-0.9 | - | - | 0.200 | remains |
8011 | 0.50-0.9 | 0.6-1.0 | 0.100 | 0.200 | 0.050 | 0.050 | - | 0.100 | remains |
Surface
1)Brushed aluminum
2)Printed aluminum
3)Embossed aluminum
4)Color coated aluminum
5)Anodized aluminum
6)Powder coated aluminum
Manufacturing
Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Horizontal shear → Annealing → Aluminum Sheet
Applications
1) Aircraft, automobile, train
2) Building wall, ceilings, roofing, furniture cabinet, lighting plate
3) Shipping plate, solar reflective plate,Corner protector, insulation material
4) Beverage bottle, cap, ring-pull, cosmetics shell and cover
5) Aluminum tread/embossed plate, quenched and pre-stretched plate
6) PS baseplate, CTP baseplate, Signs, nameplate
7) Electrical products shell, engineering machinery plate
8) Aluminum reefer containers and special containersetc
9) Spinning, Auto etc.
