| Prod Model: |
JH086 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Yellow,Red,Blue |
| OEM: |
Yes |
| Material: |
Steel |
| Structure: |
Triangle Bracket |
| Usage: |
Cylinder Mounting Brackets |
Product Description

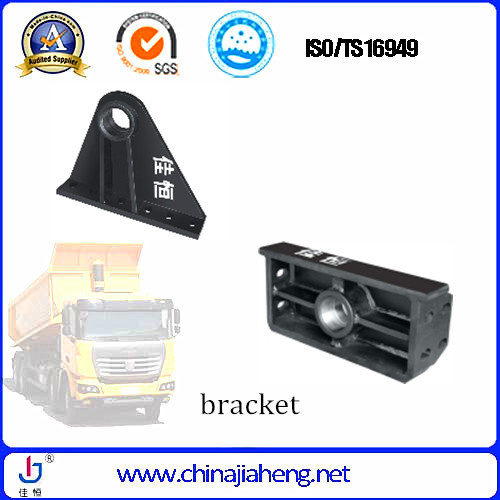

Bracket for Hydraulic Systems, Dump Trucks or Vehicles
It is used to install various kinds of cylinders, easy to control and maintain.
-----Other related products we can supply:
1. Lifting valve: Small size, steady pressure, safe and reliable
2. Gear pump: Small size, strong power, long life
3. Hydraulic oil tank: Multiple cleaning protection
4. Gas valve: Proportional control and easy manipulation
5. Limit valve: To optimize the process of use and improve the lifting frequency
6. High-pressure oil tube: Durable, dust proof, not rust.
About Us
We produce hydraulic cylinder over 10 years. Now having all kinds of advanced equiments morn than 200 sets, such as: Hole grinding machine made in American, full-fuction CNC machine, computer checking platform and so on.
Single-acting hydraulic cylinder is our superstar production, it is recognised around the world for its good performance.
Good choice for our hydraulic cylinder
1. Merge together with Europe security idea
Our whole set hydraulic cylinder system with multi-protection can protect the safety of worker &truck and cargo.
2. Specialized SystemConfiguration
Specialized system configuration that greatly improve work efficiency and reduce system weight.
3. Custom Made isAvailable.
We can design different hydraulic system for truck, lifting platform, construction machine, engineering machine, marine and so on.
Quality Control
1. Cylinder products from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ TS 16949: 2009)
2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding
List of JIAHENG hydraulic spare parts
|
|
OEM.NO |
Name of Part |
Specification |
Material name |
Quantity |
|
|
cylinder assembly |
Depend on customer demand |
|
|
|
02.002.007.0001 |
Enlarge frame assembly |
Model3268 |
Enlarge frame |
1 |
|
02.003.001.0002 |
Upper support |
HG081 |
3271upper support |
2 |
|
02.003.001.1009 |
Lower support |
HG091D |
Butterfly 75 holes lower support |
2 |
|
02.004.0005 |
Gear pump |
JHCB-6100-A11 |
Gear pump+ Change valve |
1 |
|
02.005.0003 |
The Slow downcombination control valve |
MZKQF34 |
Control valve |
1 |
|
|
φ6 pipe connector |
4 |
|
|
φ6 pipe connector seals |
4 |
|
|
Support for control valve |
1 |
|
|
M6 bolt |
4 |
|
02.006.002.0016 |
Oil pipe with accessories |
φ32I-3000 |
Low pressure pipe |
1 |
|
02.006.001.0043 |
φ19II-2500b-M36×1.5-M30×1.5T |
High pressure pipe |
1 |
|
02.006.001.0044 |
φ19II-2600b-M36×1.5 |
High pressure pipe |
1 |
|
04.998.00018 |
|
φ42-46 pipe strap |
2 |
|
|
Oil tanker with accessories |
Reference oiltanker.xlsx. |
|
1 |
|
04.083.00003 |
φ24×3.10 |
"0" rign |
1 |
|
04.998.00015 |
|
shock absorber |
4 |
|
04.998.00034 |
Air tube with accessories |
|
φ6Three way pipe joint |
1 |
|
04.998.00038 |
20m |
φ6 air tube |
1 |
Hubei Jiaheng Technology Co., Ltd located at Yunxian economic development. Our company is keen to develop and produce all kinds of hydraulic system products, hydraulic cylinder set, pump truck hydraulic(arm support and pump over), truck mounted crane cylinder, mining hydraulic prop, enlarge frame set and hydraulic system.
Our annual output value above 800 million yuan, anual production capacity of 220000 sets, front telescopic hydraulic cylinders achieve the ability 400units/day, with an annual 120000 units, abdominal lift hydraulic cylinder 40000units, verious types of pump amplitude, telescopic outrigger hydraulic cylinder 10000units, various types of loader, excavator hydraulic cylinders 50000sets.
"Jiaheng" brand hydraulic products has leapt to the leading position in domestic industry three consecutive years. Products reconginzed and praised by more than 100 China several well-known medium and heavy vehicle refitting enterpriese, established a strategic partnership, like XCMG, ZOOMLION, CIMC, SUNHUNK, FOTON, DONGFENG, CAMC, SINOTRUCK, LOXA, Iveco (Shanghai), North Benz. Jiaheng products has spread more than 30 provinces and exported to Russia, Ukraine, Philippines, Thailand, Pakistan, Kazakhstan, Korea and some Middle East countries.
Jiaheng welcome your inquire and visit.
