| Prod Model: |
EBN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dia.: |
315mm-1000mm |
| Steel No.: |
60#,65#,65mn,40crmo |
| Hardness: |
HRC45-55 |
| Heat Treatment Depth: |
15mm-18mm |
| Painting Color: |
as Demand |
| Product Name: |
Crane Wheel Blocks |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
| Molding Technics: |
Modular Forging |
| Application: |
Overhead Crane, Gantry Crane, Portal Crane, Cars |
| Heat Treatment: |
Quneching and Tempering |
Product Description
Part 1: Descriptions & Application
Wheels are machine-components with load bearing function.When selecting wheels, we can supply you with a broad variety of options.

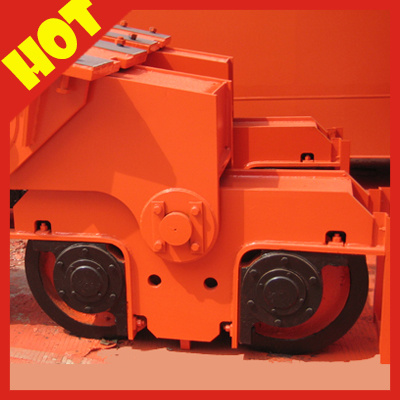

Complete wheel assemblies are combined with wheel block, shaft, bearing, bearing house and wheel assemblies support, they are widely applied on overhead crane, gantry crane, portal crane, transfering Cars.
Part 2: Wheel features
-Material: 60#,65#,65Mn,42CrMo
-Heat treatment:hardening and tempering,high frequency quenching or carburizing quenching -Hardness: HRC45-55
-Depth:15-18mm
-Diameter: Φ300-1000mm
Part 3: Process
-Spectral analysis on raw material
-Cutting as requirments
-Forging with modular
-Surface harden
-Heat treatment
-Rough machining
-Normalizing
-NC machining
-Size detecing
-UT Detection
-Assembly
-Packing and anti rust paint
-Delivery
Part 4: Sketch & Dimension
Wheel Dia. | Diamension(kgs) | Dead Weight(kgs) |
| d1 | b1 | b2 | d2 | d3 | l1 | l6 | n | l2 | d7 | l12 | Bearing | Driven wheel | Idle Wheel |
| 315 | 45-55 | 90 | 350 | 110 | 171 | 235 | 62 | 185 | - | - | 22218 | 100 | 95 |
| 315 | 55-65 | 110 |
| 120 | 173 |
|
| 190 | 70 | 105 | 22220 | 123 | 117 |
| 400 | 55-65 | 110 | 440 | 120 | 188 | 265 | 62 | 205 | 70 | 105 | 22220 | 153 | 147 |
| 400 | 70-90 | 140 |
| 130 | 202 | 280 | 72 | 215 | 80 | 120 | 22222 | 192 | 183 |
| 500 | 55-65 | 110 | 540 | 130 | 202 | 280 | 72 | 215 | 80 | 120 | 22222 | 212 | 203 |
| 500 | 70-90 | 140 |
| 140 | 210 | 290 | 82 | 225 |
|
| 22224 | 263 | 253 |
| 630 | 65-75 | 120 | 680 | 160 | 237 | 325 | 94 | 250 | - | - | 22226 | 356 | 344 |
| 630 | 80-110 | 160 |
| 180 | 245 | 335 |
| 265 | 100 | 152 | 22230 | 465 | 450 |
| 710 | 75-90 | 140 | 760 | 170 | 249 | 350 | 94 | 260 | 100 | 152 | 22228 | 474 | 459 |
| 710 | 95-160 | 210 |
| 190 | 278 | 395 | 104 | 300 | 110 |
| 22232 | 683 | 658 |
| 800 | 75-90 | 140 | 850 | 180 | 255 | 355 | 94 | 275 | 110 | 152 | 22230 | 579 | 559 |
| 800 | 95-160 | 210 |
| 200 | 289 | 405 | 114 | 310 | 130 | 172 | 22234 | 841 | 809 |
| 900 | 75-90 | 140 | 950 | 190 | 268 | 375 | 104 | 290 | - | - | 22232 | 693 | 668 |
| 900 | 95-160 | 210 |
| 230 | 315 | 430 | 134 | 335 | 140 | 202 | 22240 | 1094 | 1055 |
| 1000 | 75-90 | 140 | 1050 | 200 | 279 | 385 | 114 | 300 | - | - | 22234 | 865 | 832 |
| 1000 | 95-160 | 210 |
| 250 | 332 | 450 | 146 | 355 | 160 | 202 | 22244 | 1399 | 1345 |
