| Prod Model: |
YX-45-150-900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forming Speed: |
8-12m/Min |
| Forging Forming Method: |
Mold Forging |
Product Description

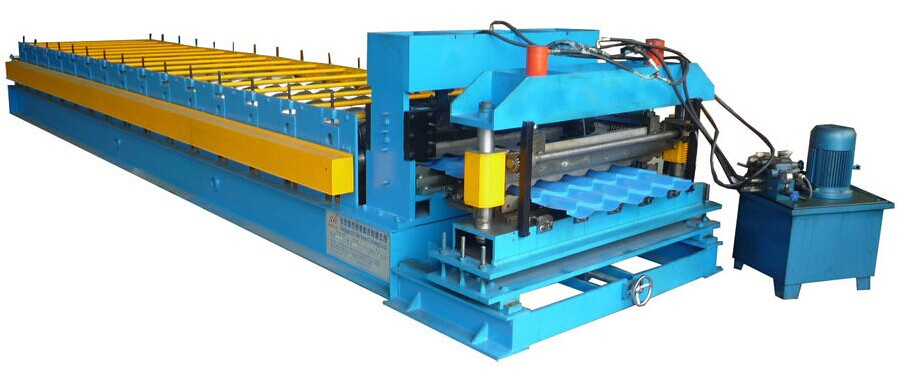

Roof panel roll forming machine
Brief Description:
1. Fast speed
2. Precision guaranty
3. Customized design
We use the quality parts in the world, such as Siemens Motor, Omron encoder, Panasonic PLC...
Our machine is definitely guarantee for 12 months. If there is any problem, we will send the technician to fix the problem ASAP!
The final specification is according to the final machine design made by our designers.
Clients can custom their own machine, which is welcomed to communicate with our designers
Technical parameters:
1. Maching material: Thickness 0.4-0.8mm
2. Main power: 7.5KW
3. Forming steps: 16-22 according to drawings
4. Forming speed: 8-12 m/min
5. Cutting: Hydraulic cutting 3kw
6. Control: PLC control cut to length, length error +/-1mm
7. Driven System Gear box or Chain
8. Dimension Depends on final design
9. Voltage 380V / 50HZ / 3Phase
Working processing:
Decoiler, coil strip feeding, roll forming, cut to length, collecting platform, Finish
Our strengths
1. We are manufacturer for metal roll forming machines since 2003.
2. With Yajie products you save time and money! Our All-in-house source is able to offer a unique service on the market - when roll forming machine must be delivered immediately, depending on customer's features, we can manufacture and deliver machine in only 5-8 weeks.
3. You can rely on our team! We have technical & sales engineers with experience more than 20 years in metal forming industry.
Roll forming:
PLC control system:
Welcome to visit our factory!
|
Number |
Composition of the Machine |
Quantity |
|
1 |
De-coiler |
1 set |
|
2 |
Main roll forming machine |
1 set |
|
3 |
Hydraulic cutting |
1 set |
|
4 |
Run-out table |
1 set |
|
5 |
PLC Control Box |
1 set |
Wuxi Yajie Roll Forming Machinery Co., Ltd. Is a professional company of roll forming machine designing, manufacturing, sales, after-sales service, import and export. Especially Especially the roof/wall panel roll forming machine, tile steel roll forming machine, roller shutter door forming machine, floor deck roll forming machine, c/z purlin roll forming machine, light keel roll forming machine and angle channel roll forming machine designed and also improved by our professional team enjoy a high and excellent reputation in the machine industry. Our products own the ISO2000 and CE quality certification.
We are engaged in the design and manufacture of roll forming machines more than 15 years, . We own professional technology team for designing, and we insist on the strict implementation of strict production assembly process, and also we provide warm and timely service after sales. Our products achieve 100% satisfaction from our customers, Our products are hot selling in more than thirty provinces in China, and exported to Europe, Australia, Middle East, North America and other regions.
