Prod Model: |
is |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Water Irrigation Pump |
Color: |
Blue |
Mode: |
Horizontal |
Certificate: |
ISO9001 |
Warranty: |
1 Year |
Capacity: |
1.1-720m3/H |
Rotation Speed: |
1450-2900 R/Min |
Head: |
8-150m |
Material: |
Cast Iron |
Structure: |
Single-stage Pump |
Power: |
Electric |
Application: |
Clarified Water Pump |
Theory: |
Centrifugal Pump |
Type: |
Centrifugal Water Pump |
Media: |
Clean Water Pump |
Performance: |
Water Pump |
Product Description

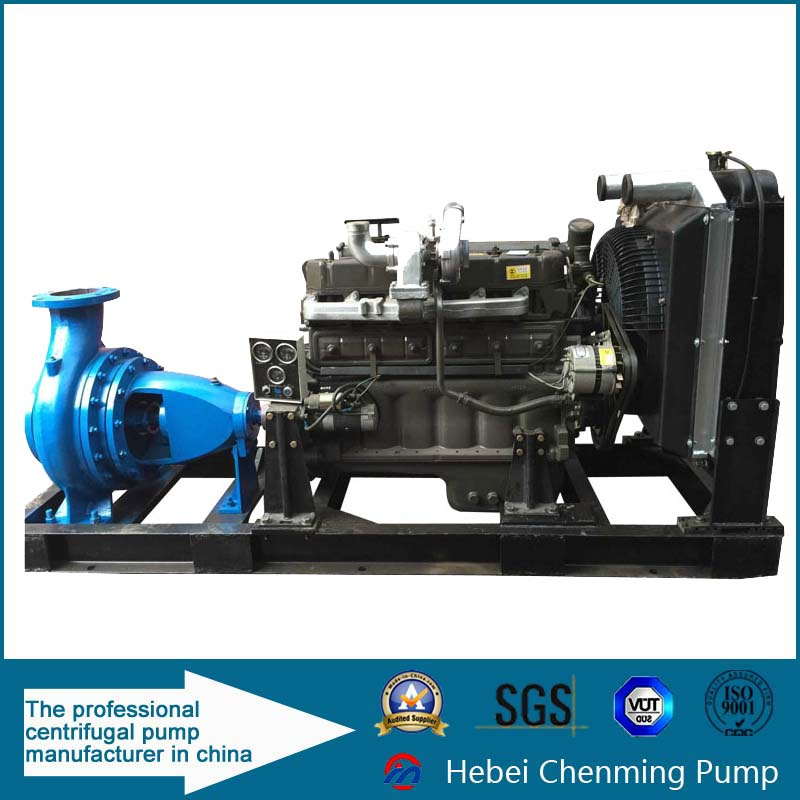

High quality iron casting sing stage centrifugal water pump
Overview:
Type IS pumps adopt special combination structure design. They are generally applied to transport pure water or the liquids similar to pure water, and the maximum allowed medium temperature is 80°C. Especially suitable for pressurization of water supply network
Operating Data:
Capacity:1.1-720m3/h
Head:8-150m
Rotation Speed:1450-2900 r/min
Power:0.37-160kW
Specification:
Item | low consumption water pump |
water pump factory | IS Factory wholesale centrifugal water pump low consumption |
Model | IS |
Material | Cast iron and customized |
Color | Blue and adjustable |
Mode | Horizontal |
Impeller | Closed impeller |
Drive | Belt or coupling |
Seal | Soft packing seal or mechanical seal |
Medium temperature | <=80°C |
Speed | 2900r/min, 1450r/min |
Theory | Centrifugal pump |
Structure | Single stage pump |
Usage | Clean water |
Power | Electric |
Standard or Nonstandard | Standard |
Application | City water supply, mine drainage, irrigation |
Outlet diameter | 32mm-150mm |
Capacity | 3.4-460m³/h |
Head | 3.7-133m |
Power | 0.55-110kw |
Warranty | 1year |
Certificate | ISO9001 |
OEM | Acceptable |
Feature | High efficiency, easy maintenance, energy saving |
Features:
Small size, easy installation, no vibration and low noise. mechanical seal.
Applicaiton:
?High quality centrifugal pump apply to industrial drainage.
?Apply to power plant circulation.
?Apply to water treatment.
?Apply to agricultural irrigation.
?Apply to flood control, hydraulic projects.
Parameter:
Model | Capacity | Head | Speed | NPSHr | Efficiency | Power | Weight |
Q(m3/h) | H (m) | n(r/min) | r(m) | η (%) | kw | w(Kg) |
IS50-32-125 | 7.5 | 22 | 2900 | 2 | 47 | 2.2 | 34 |
12.5 | 20 | 2 | 60 |
15 | 18.5 | 2.5 | 60 |
IS50-32-125A | 6.7 | 17.5 | 2900 | 2 | 45 | 1.5 | 33 |
11.2 | 16 | 2 | 58 |
13.5 | 14.7 | 2.5 | 58 |
IS50-32-160 | 7.5 | 34.3 | 2900 | 2 | 44 | 3 | 39 |
12.5 | 32 | 2 | 54 |
15 | 29.6 | 2.5 | 56 |
IS50-32-160A | 7 | 30 | 2900 | 2 | 42 | 2.2 | 38 |
11.7 | 28 | 2 | 52 |
14 | 26 | 2.5 | 54 |
IS50-32-160B | 6 | 25.8 | 2900 | 2 | 40 | 1.5 | 37 |
10 | 23 | 2 | 50 |
12 | 21 | 2.5 | 52 |
IS50-32-200 | 7.5 | 52.5 | 2900 | 2 | 38 | 5.5 | 43 |
12.5 | 50 | 2 | 48 |
15 | 48 | 2.5 | 51 |
IS50-32-200A | 7 | 45.3 | 2900 | 2 | 37 | 4 | 42 |
11.7 | 44 | 2 | 46 |
14 | 41.5 | 2.5 | 49.5 |
IS50-32-200B | 6.5 | 39.6 | 2900 | 2 | 36 | 3 | 41 |
10.8 | 37.5 | 2 | 45.5 |
13 | 36 | 2.5 | 48.5 |
IS50-32-250 | 7.5 | 82 | 2900 | 2 | 28.5 | 11 | 75 |
12.5 | 80 | 2 | 38 |
15 | 78.5 | 2.5 | 41 |
IS50-32-250A | 7 | 72 | 2900 | 2 | 28 | 7.5 | 74 |
11.7 | 70 | 2 | 37.5 |
14 | 68.5 | 2.5 | 40 |
IS50-32-250B | 6 | 61.5 | 2900 | 2 | 27.5 | 5.5 | 73 |
10 | 60 | 2 | 36.5 |
12 | 58.5 | 2.5 | 39 |
