Casting & Forging Manufacturers and Factories

Home Casting & Forging Products High Quality Mould Die Forgings

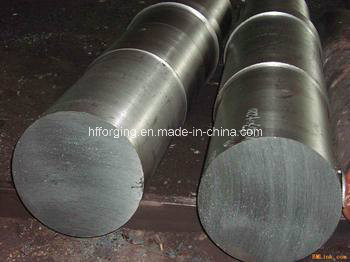

High Quality Mould Die Forgings

High Quality Mould Die Forgings
Price: US $ 1200/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: as Per Drawings
Shape: Round or Plate
Processing Object: Metal
Molding Style: Forging
Heat Treatment: Normalizing+Annealing+Quenching+Tempering

Product Description

Product Details:

Material  Cr12MoV   (Chemical Compositions %)
      C              Si             Mn               Cr                     Mo                V             P & S
1.40-1.70      ≤0.40      ≤0.40       11.00-12.50       0.40-0.60    0.15-0.30        ≤0.030
SizeRound φ20-650mm; Flat 20-450x50-810mm
Origin PlaceMade in China
Delivery ConditionForged/hot rolled
Surface TreatmentBlack/grinded/peeled/turned/milled/polish/bright
Heat TreatmentAnnealed 2-4 times
PackingSeaworthy packing or as per client's request
MOQ10Ton
Delivery TimeEXW 25-60 Days
Trade TermFOB/CIF/CFR
Payment TermT/T or L/C at sight or DP at sight
Loading PortNingbo/Shanghai/other ports as per client's request


Heat Treatment:

Forge: At 1020° C-1040° C Cool slowly and anneal immediately

Annealing: At 650° C-850° C Cool slowly in furnace

Stress Relieving: At 650° C Cool slowly to 500° C, then freely in air

Hardening: Preheat at 650° C-750° C raise to 1020° C-1050° C Cool in air, oil or into salt bath held at 500° C-550° C and then air cool.

APPLICATIONS: Used for metal stamping die, drawing die, stainless steel sheet blanking die, blanking die with high hardness, shear


Contact

We warmly welcome clients from all over the world to cooperate with us and develop
worldwide
market together. Also we hope we can have chance to establish longterm
business relationship
with you on the basis of mutual benefit.

Hongfeng can provide the products with the single weight up to 11mt and diameter up to 3m, such as tube sheets, rings, cylinder and shafts, etc. The material includes Austenitic stainless steel, Martensitic stainless steel, Duplex Stainless Steel, Carbon steel and Alloy steel. Their products widely used in transmission, mould, metallurgy, petrochemical, valve, shipbuilding, and cars. Our company has more than 18years experience, with the ability to provide a series service of blanking, heating, forging, heat-treatment, CNC, inspection, surface-treatment, packing and shipping.

Since establishment, Hongfeng develops year by year; The main equipments are as below: 1 set for each 11mt & 5mt electro-hydraulic hammers, 1set for each 3mt, 1.5mt, 1mt and 750kgs air hammers; 5 sets of gas heat furnaces; 3sets of electrical heat treatment furnaces; 2 sets for each 16mt&10mt and 4sets of 5mt cranes; 5 sets of Large sawing machines ( the sawing length up to 3m), 12sets of common sawing machines; 4sets of vertical lathes(¢ 3m*2.5m), 3sets of 10m*¢ 1.4 and 8sets of 1m*¢ 800mm horizontal lathes. The production capacity can reach 20000mt; The products are strictly according to the standard. From the beginning to the end of every order, we have detailed records for every process.
