Prod Model: |
wc67k |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Control System: |
Esa or Delem |
Type For Pipe And Tube Bending Machine: |
Press Brake |
Hydraulic System: |
Bosch |
Electric: |
Simens |
Forging Forming Method: |
Mold Forging |

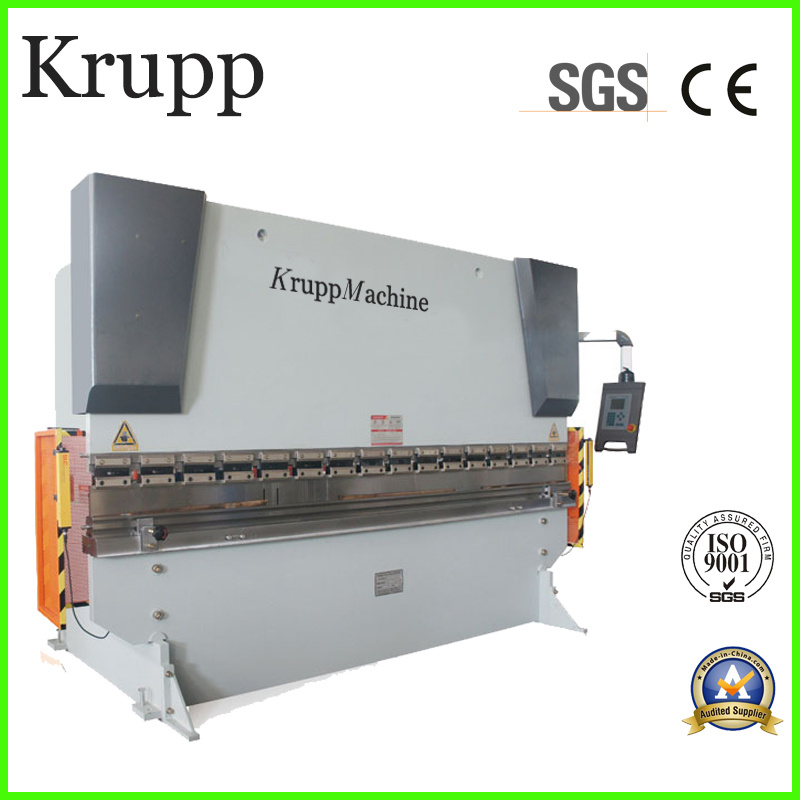

Product Description
1. High productivity and good precision for metal sheets bending;
2. Different tools working for multifarious pieces. Can make complex shapes by repetitious bending work;
3. Mechanical stopper in oil cylinder, typical of high feedback precision for gliding block;
4. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar;
5. With slowly falling function, the worker can control the machine easily;
6. Conventional clamps for the punch with manual wedge adjustment;
7. Realization of high precision, energy saving, environmental protection, high efficiency.
Model (WC67k) | Nominal Pressure (kn) | Length of table (mm) | Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open High (mm) | Main Motor (kW) | Dimensions (L x W x H) (mm) |
40/2200 | 400 | 2200 | 1800 | 220 | 100 | 340 | 4 | 2260x1200x2070 |
40/2500 | 400 | 2500 | 2000 | 220 | 100 | 350 | 4 | 2560x1200x2070 |
50/2500 | 500 | 2500 | 2000 | 250 | 100 | 350 | 4 | 2560x1200x1900 |
63/2500 | 630 | 2500 | 2000 | 250 | 120 | 350 | 5.5 | 2560x1250x2110 |
63/3200 | 630 | 3200 | 2600 | 250 | 120 | 350 | 5.5 | 3260x1250x2110 |
80/3200 | 800 | 3200 | 2600 | 250 | 120 | 370 | 7.5 | 3260x1250x2190 |
80/4000 | 800 | 4000 | 3200 | 250 | 120 | 370 | 7.5 | 4060x1320x2250 |
100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3260x1350x2400 |
100/4000 | 1000 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4060x1350x2420 |
125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 400 | 11 | 3260x1420x2550 |
125/4000 | 1250 | 4000 | 3200 | 320 | 120 | 400 | 11 | 4060x1420x2550 |
160/3200 | 1600 | 3200 | 2600 | 320 | 200 | 480 | 11 | 3260x1520x2700 |
160/4000 | 1600 | 4000 | 3200 | 320 | 200 | 480 | 11 | 4060x1520x2800 |
160/5000 | 1600 | 5000 | 4000 | 320 | 200 | 480 | 11 | 5060x1700x2850 |
160/6000 | 1600 | 6000 | 5000 | 320 | 200 | 480 | 11 | 6060x1700x2900 |
200/3200 | 2000 | 3200 | 2600 | 350 | 200 | 490 | 15 | 3260x1600x2850 |
200/4000 | 2000 | 4000 | 3200 | 350 | 200 | 490 | 15 | 4060x1600x2880 |
200/5000 | 2000 | 5000 | 4000 | 350 | 200 | 490 | 15 | 5060x1800x2950 |
200/6000 | 2000 | 6000 | 5000 | 350 | 200 | 490 | 15 | 6060x1800x3000 |
250/4000 | 2500 | 4000 | 3200 | 400 | 250 | 560 | 18.5 | 4060x2100x2920 |
250/5000 | 2500 | 5000 | 4000 | 400 | 250 | 560 | 18.5 | 5060x2100x2970 |
250/6000 | 2500 | 6000 | 5000 | 400 | 250 | 560 | 18.5 | 6060x2100x3050 |
300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 560 | 22 | 4060X2170X3280 |
300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 600 | 22 | 5060x2230x3330 |
300/6000 | 3000 | 6000 | 5000 | 400 | 250 | 600 | 22 | 6060x2230x3420 |
400/4000 | 4000 | 4000 | 3200 | 450 | 250 | 600 | 37 | 4060x2350x3300 |
400/5000 | 4000 | 5000 | 4000 | 450 | 250 | 600 | 37 | 5060x2350x3380 |
400/6000 | 4000 | 6000 | 5000 | 450 | 250 | 600 | 37 | 6060x2350x3450 |
500/4000 | 5000 | 4000 | 3200 | 500 | 300 | 660 | 45 | 4060x2600x3600 |
500/5000 | 5000 | 5000 | 4000 | 500 | 300 | 660 | 45 | 5060x2600x3600 |
500/6000 | 5000 | 6000 | 5000 | 500 | 300 | 660 | 45 | 6060x2600x3650 |
600/4000 | 6000 | 4000 | 3200 | 600 | 300 | 700 | 55 | 4060x2600x3600 |
600/5000 | 6000 | 5000 | 4000 | 600 | 300 | 700 | 55 | 5060x2600x3700 |
600/6000 | 6000 | 6000 | 5000 | 600 | 300 | 700 | 55 | 6060x2600x3800 |
The above data is just for your reference,if there is any disaccord please refer to actual data
Parts Name | Brand | Brand Location |
Main motor | Siemens | Germany |
Backgauge motor | Detong | Shanghai China |
Ram motor | Kongte | Nanjing China |
Electrics | Schneider | France |
Oil Cylinder | Yuhua | Maanshan China |
Seal ring | Nok | Japan |
Hydraulic valve | Rexroth | Germany |
Pump | Hangfa | Shanghai China |
Controller | E21 | Nanjing China |
Mould | Guoling | Maanshan China |
Pipe connector | EMB | Germany |
Footswitch | Karcon | South Korea |
Ball screw | Hiwin | Taiwan |
