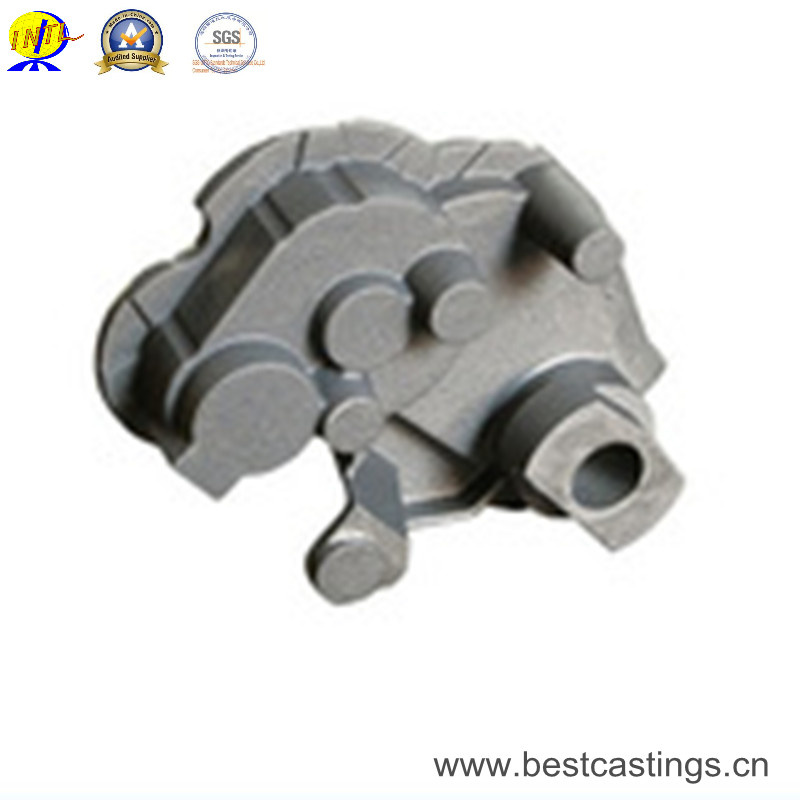

High Quality Precision Ductile Iron Casting for Auto Part

Name: High Quality Precision Ductile Iron Casting for Auto Part
Brand: china-castingforging.com
SKU: 780965155
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	US $ 1-2kg
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Hebei Mingda International Trading Co., Ltd.

Showroom Product Company Profile

Prod Model:	iron casting
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Your Drawing
Machining Process:	Drilling , Milling, Boring etc.
Blank Process:	Sand Casting
Lead Time:	45 Days
Casting Method:	Sand Casting
Casting Form Material:	Metal
Casting Metal:	Cast Iron
Casting Form Usage Count:	Permanent
Surface Treatment:	Painting

Product Description

High quality precision ductile iron casting for auto part

Product description :

Item Name	High quality precision ductile iron casting for auto part
General Products Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Main blank Process for Casting	Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting
Blanks Tolerance -Casting Tolerance	CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process
Applicable Material	See Table Below (Ductile Iron Casting, Grey Iron Casting) OR According to customer requirement
Casting Blank Size /Dimensions	2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement
Casting Blank Weight	Range from 0.01kg-1000kg for casting iron
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment	Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.
MOQ	For iron casting : 100pcs For Machining : 50pcs
Lead Time	45days from the receipt date of deposit for ductile iron casting

Ductile Iron Casting Material Comparison Table:

Cast iron with nomular graphite DIN EN 1563	Germany DIN 1693	France NF	Great Britain BS	Netherlands NEN	Sweden MNC	USA ASTM A536
EN-GJS-350-22-LT	GGG-35.3	FGS 370-17	370/17	GN 38	0717-15	----
EN-GJS-400-18-LT	GGG-40.3	----	----	----	----	60-40-18
EN-GJS-400-15	GGG-40	FGS-400-12	420/12	GN 42	0717-02	60-40-18
EN-GJS-400-10	----	----	420/12	----	----	65-45-12
EN-GJS-500-7	GGG-50	FGS-500-7	500/7	GN 50	0727-02	65-45-12/ 80-55-06
EN-GJS-600-3	GGG-60	FGS-600-3	600/3	GN 60	0732-03	80-55-06
EN-GJS-700-2	GGG-70	FGS-700-2	700/2	GN 70	0737-01	100-70-03
EN-GJS-800-2	GGG-80	FGS-800-2	800/2			120-90-02
EN-GJS-1000-5 (DIN EN 1564)	GGG-100B/A	----	----	----	----	850-550-10
EN-GJS-AX NiSiCr35 5 2	GGG- NiSiCr 35 5 2	FGS- Ni35Si5Cr2	S5S	----	----	Type D-5S

Company Introduction :

Hebei Mingda International Trading Company is a trading company which is specialized in castings,

forgings and machinery parts.

Our products include all kinds of raw castings to be made of ductile iron , grey iron , brass , stainless

steel and aluminums, machined castings and forged parts . To make these parts according to the

customers' drawings , we have relative suitable production craft and equipments, such as resin sand ,

sand mould , hot core boxes , lost-wax , lost foam and so on .

Specially for hydrant bodies and valves' bodies, we have collected rich experience for these products in

the past 16 year's actual production, Now we are proud of our products with good surface and high quality

material. Whatever,we have been trying our best to provide our customers with better quality castings by

improving production crafts and more careful quality control.

Looking Forward To Receiving Your Kind Favorable Reply At Your Earliest!

Hebei Mingda International Trading Company is a trading company which is specialized in

Castings, forgings and machinery parts.

We have deep business interaction with manufactures in major cities of China, so we are quite

Flexible and confident to be any kind of casting products to be able to meet

Ourcustomers'request on quanlity and delivery time.

Our products include all kinds of raw castings to be made of ductile iron, grey iron, brass,

Stainless steel and aluminums, machined castings and forged parts. To make these parts

According to the customers' drawings, we have relative suitable production craft and

Equipments, such as resin sand, sand mould, hot core boxes, lost-wax, lost -foam and so on.

Specially for hydrant bodies and valves' bodies, we have collected rich experience for these

Products in the past 16 year's actual production, Now we are proud of our products with good

Surface and high quality material. Whatever, we have been trying our best to provide our

Customers with better quality castings by improving production crafts and more careful quality

Control.

Apart from buyers' requirements, we also have our own very strict quality assurance system,

That makes sure the buyer's demand more significant and it could be done exactly according to

Our customres'required Quality Standards. This saves much time and money for both sides.

From founded to now, our products arehighly recognized by our customers, Meantime we win a

Good reputation in the casting and machinery industry whoever from customers or our partners.

Now our products are mainly exporting to Germany, Sweden, UK, Denmark, France, USA,

Middle-East, and so on.

Looking Forward To Receiving Your Kind Favorable Reply At Your Earliest!
