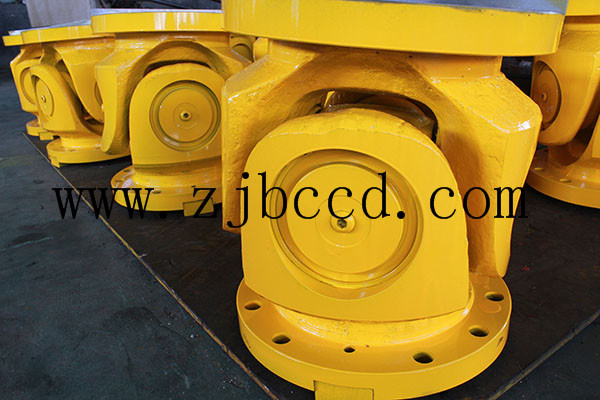

High Quality SWC Cardan Shaft
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SWC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stiffness & Flexibility: |
Flexible Shaft |
| Load: |
Drive Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
Product Description
Standard telescopic welded cross shaft universal coupling can be widely used in metallurgy, lifting, transportation, mine, petroleum, shipping, coal, rubber, paper making machinery and other mechanical shafting in vestigating the transmission torque. Cross shaft universal coupling by league two axis due to the manufacturing error, installation error, axial loading and deformation and deformation, bearing wear and temperature changes (thermal expansion, cold), the components of relative motion between a variety of factors such as relative displacement. In general, two axes relative displacement is unavoidable, but under different working conditions of displacement produced by shaft transmission direction, namely axial (x), angular and radial (y), (a) and the size of the displacement is different
Model |
Type
Data
Item |
SWC
165 |
SWC
180 |
SWC
200 |
SWC
225 |
SWC
250 |
SWC
265 |
SWC
285 |
SWC
315 |
SWC
350 |
SWC
390 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
L |
740 |
800 |
900 |
1000 |
1060 |
1120 |
1270 |
1390 |
1520 |
1530 |
|
|
Lv |
100 |
100 |
120 |
140 |
140 |
140 |
140 |
140 |
150 |
170 |
|
|
m(kg) |
65 |
83 |
115 |
152 |
219 |
260 |
311 |
432 |
610 |
804 |
|
B |
L |
480 |
530 |
590 |
640 |
730 |
790 |
840 |
930 |
1000 |
1010 |
|
|
m(kg) |
44 |
60 |
85 |
110 |
160 |
180 |
226 |
320 |
440 |
590 |
|
C |
L |
380 |
420 |
480 |
500 |
560 |
600 |
640 |
720 |
780 |
860 |
|
|
m(kg) |
35 |
48 |
66 |
90 |
130.0 |
160 |
189 |
270 |
355 |
510 |
|
D |
L |
520 |
580 |
620 |
690 |
760.0 |
810 |
860 |
970 |
1030 |
1120 |
|
|
m(kg) |
48 |
65 |
90 |
120 |
173.0 |
220 |
250 |
355 |
485 |
665 |
|
E |
L |
800 |
850 |
940 |
1050 |
1120 |
1180 |
1320 |
1440 |
1550 |
1710 |
|
|
Lv |
100 |
100 |
120 |
140 |
140.0 |
140 |
140 |
140 |
150 |
170 |
|
|
m(kg) |
70 |
92 |
126 |
168 |
238.0 |
280 |
340 |
472 |
660 |
886 |
|
Tn(kN.m) |
16 |
22.4 |
31.5 |
40 |
63 |
80 |
90 |
125 |
180 |
250 |
|
Tf(kN.m) |
8 |
11.2 |
16 |
20 |
31.5 |
40 |
45 |
63 |
90 |
125 |
|
β(°) |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
D |
160 |
180 |
200 |
225 |
250 |
265 |
285 |
315 |
390 |
440 |
|
Df |
160 |
180 |
200 |
225 |
250 |
265 |
285 |
315 |
390 |
440 |
|
D1 |
137 |
155 |
170 |
196 |
218 |
233 |
245 |
280 |
345 |
390 |
|
D2(H9) |
100 |
105 |
120 |
135 |
150 |
160 |
170 |
185 |
235 |
255 |
|
D3 |
108 |
114 |
140 |
159 |
168 |
180 |
194 |
219 |
273 |
299 |
|
Lm |
95 |
105 |
110 |
125 |
140 |
150 |
160 |
180 |
215 |
260 |
|
k |
16 |
17 |
18 |
20 |
25 |
25 |
27 |
32 |
40 |
42 |
|
t |
4 |
5 |
5 |
5 |
6 |
6 |
7 |
8 |
8.0 |
10.0 |
|
n |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
10 |
10 |
16 |
|
d |
15 |
17 |
17 |
17 |
19 |
19 |
21 |
23 |
25 |
28 |
|
b |
20 |
24 |
32 |
32 |
40 |
40 |
40 |
40 |
70 |
80 |
|
g |
6.0 |
7.0 |
9.0 |
9.0 |
12.5 |
12.5 |
12.5 |
15.0 |
18.0 |
20.0 |
|
MI(kg) |
2.57 |
3 |
3.85 |
3.85 |
5.17 |
6 |
6.75 |
8.25 |
13 |
18.5 |
Flange
bolt |
Size |
M14 |
M16 |
M16 |
M16 |
M18 |
M18 |
M20 |
M22 |
M24 |
M27 |
|
|
Tightening torque (Nm) |
180 |
270 |
270 |
270 |
372 |
372 |
526 |
710 |
906 |
1340 |
Zhejiang Baochuan Transmission Machinery Co., Ltd. is located in the beautiful West Lake is Xiaoshan, is apart from the Xiaoshan International Airport and 20 kilometers away from the Hangzhou Railway Station, Xiaoshan expressway exit of the 1 km, the traffic is very convenient.
Zhejiang Baochuan Transmission Machinery Co., Ltd. is a professional engaged in design, manufacturing, sales in one of the large-scale joint-stock enterprises, specializing in the production of SWC, SWP and SWL type cross shaft universal coupling and various types of automobile, agricultural machinery, engineering machinery transmission shaft. Universal joint, drive shaft and other types of art, the product has the advantages of reasonable design, large transmission torque, high transmission efficiency, low noise, long service life, wide application range, etc...SWC, SWP and SWL type cross shaft universal coupling used in rolling mill main drive and auxiliary transmission, also suitable for hoisting machinery, mining machinery, engineering machinery, petroleum machinery, vehicle, ship propulsion system, papermaking machinery, especially for metallurgical industry technical modification and renewal of mechanical product provide strong support. The drive shaft can be used for a variety of passenger cars, trucks, agricultural machinery, engineering machinery, products to meet different customer needs for the purpose.
The company has first-class production equipment, forging, heat treatment center to center and machining center. Production equipment of various types of CNC lathe, machining center, milling machine, boring machine, broaching machine, slotting machine and the dynamic balancing machines, meet light, medium, heavy and large parts, product demand, thus forming the specialization, serialization of the production pattern, the equipment investment is in the leading position in the same industry.
The company has a number of decades of design, production and universal shaft coupling of professional talents, their rigorous work style, high business level, refine on quality requirements.
Company' S products to the quality to win, each link in the production strictly according to ISO9001 quality management system requirements of the process, and put forward the "next project (customer) satisfaction is quality assurance" slogan, continuous improvement to meet customer demand.
The company' S entrepreneurial spirit is people-oriented, winning by quality, based on domestic, international expansion. Warmly welcome new and old customers to our company to negotiate business, sincere cooperation, create brilliant.
