| Prod Model: |
HFC-45T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001: 2000 and CE |
| Color: |
as Your Require |
| Capacity: |
45 Ton |
| Condition: |
New |
| Power Source: |
Hydraulic |
| Type: |
Metal Cutting Machine |
Product Description

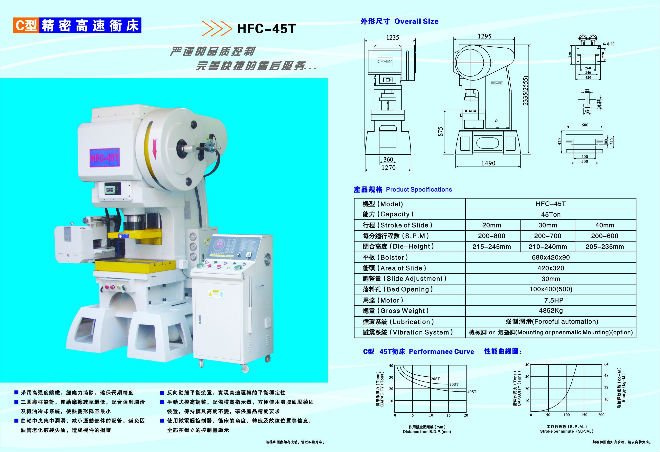

Our press machine is widely used in punching precise stampings, for example accessories in computer, mobile phone. The press machine used high -strength cast iron, stress relieving make sure the long time precision. The ternary guide pillar's design match up the forced feed lubrication and machine oil cooling system reduced the heat distortion and clash to the lowest. It controlled by micro computer, the angle of press, SPM and failure position information appears on the independent control table.
Features:
Steel-welded frame, high rigidity and less deformation, the stronger cast iron base to reduce vibration and noise and improve
Steel-welded frame, high rigidity and less deforation, pneumatic combination friction clutch-brake, low nosie, long service life, large clutch torque and small braking angle, to ensure reliable safety and flexible actionthis type machine mainy suitable for all kind metal press and feeding, its fastest speed reached 800times /min.
Chooses us we will give you best serive.
About us:
Our company Henli is a professional manufacturer focusing on the research, design, production and sale of high quality peripheral auto equipment of punching machine. ISO9001: 2000 certificates, we strictly follow a systematic and effective quality control system, and now we have past CE certification, which will ensure us provide more technic advanced and cost efficient products and build long term business relationships with customers all over the world.
|
Model |
HFC-45T |
|
Capacity |
45 Ton |
|
Stroke of Slide |
20mm |
30mm |
40mm |
|
S. P. M |
200-800 |
200-700 |
200-600 |
|
Die-Height |
215-245mm |
210-240mm |
205-235mm |
|
Bolster |
680× 420× 90 |
|
Area of Slide |
420× 320 |
|
Slide Adjustment |
30mm |
|
Bed Opening |
100× 400(500) |
|
Motor |
7.5HP |
|
Gross Weight |
4852Kg |
|
Lubrication |
Forceful automation |
|
Vibration System |
Mounting or pnenmatic Mounting(option) |
HenLi has absorbed in design, development, production, and trade on automatic peripheral equipment of press machine such as various kinds of feeders, uncoilers(decoiler), straightener(leveller)and other accessories since the year of 1998. Now HenLi brand is famous for its market research completely and advanced technology ability in the same industry. with the eximious capability-price ratio and perfect after service, our products are sold well in domestic markets while exported to many countries and regions, such as the Middle East, Southeast Asia, Africa and Europe etc.
Located in China's world famous industry manufacturing center Dongguan city (between Hongkong, Shenzhen and Guangzhou), we enjoy great convenience in transportation advantage and fast delivery for leading time in time. Moreover, our branches and offices covers south and east China, which enable us to offer all-around sevice and technical support to our valued customers. In the year of 2007 we built and removed to a brand-new modern factory with advanced facilities and production lines in order to fulfill rapidly growing market demands.
Obeying ISO9001-2000 quality management system to be our standard of producing and selling, updating machines characters according to customers comment and advice, we guarantee to provide completely coil processing automation industrial control technology to improve HenLi brand. We warmly welcome your any inquiry for more information, our all personnel will give you our best attention and service.
