| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Capacity: |
25 Metric Tons |
| Stroke: |
30mm |
| Die Height: |
210mm |
| Stroke Per Minute: |
200- 800s. P. M |
| RAM Adjustment: |
30mm |
| RAM: |
300mm X 210mm |
| Bed: |
600mm X 300mm X 75mm |
| Motor: |
5HP |
| Bed Opening (Lr X Fb): |
400mm X 100mm |
| Type: |
Machine Tool&Accessories |
Product Description
Use integral high intension eliminating, guarantee high precision in long time.
Tri-round guide polar slider structure, alloy bush, added forced lubricating, so haveing minimum heating and highest precision.
Dynamic balancing system, can balance the vibration caused by sllider and crank runing in high speed, keep stability of lower dead point.
Manual mold height adjusting, equipped mold height indicator and oil pressure mold interlock device.
Person/machine interface(electronic cam+rotary encoder)convenience and accuracy in operation.
The wholly operation function display liquid crystal screen as well as the automatic machine seat trouble display.
The high sensitive clutch/brake, international up-to-date single link electromagnetic valve, guarantee accuracy and safety of running and stop of slider.
Electorate electric loop design, are compostable with various automatic equipments, reduce cost and improve efficiency for autoimmunization production.

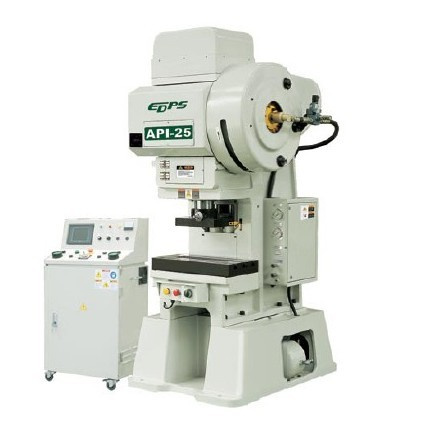

API series includes API-25, API-45, API-65.
Standard accessories:
Sticking release device
Electrical lubrication
Manual slide adjuster
Hydraulic die locker
Stroke counter
PLC(programmable logical controller)
Slide & Die balance device
Crank angle indicator
Air source receptacle
Maintenance tool box
Operation manual
Touch pad
Optional accessories:
Anti-vibration device
Power socket
Feeder
Mis-feed detector
Decoiler
Straightener
Air ejector
Ningbo YIDUAN Precision Machinery Co., Ltd., located in Ningbo Technical Development Zone, is specializing in the production of high-speed precision presses(15T-500T) with viarous improved testers and a strict quality management system. For ensuring our advanced and reliable products, YIDUAN always emphasizes the quality policy, enhances the staff's quality awareness and operation capacity.
The company is only 5km away from Ningbo seaport and 39km to Ningbo international airport. Also we have strong adaptivity for market demand by using the enterprise information management system(ERP, PDM, CAM and etc). Based on superior location and gradual perfection of management system, YIDUAN is anixous for exploiting the market. We are commit ourself to serve customers with the highest quality, technology and the best performance.
