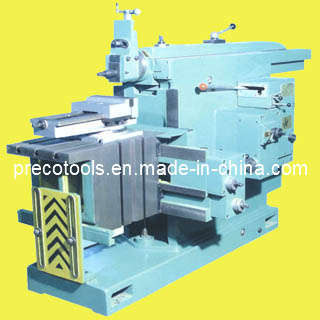

High-Speed Shaping Machine with CE
| Price: |
US $ 5999/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
150-63xx |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery: |
One Month |
| Forging Forming Method: |
Mold Forging |
| Certification: |
RoHS |
Product Description
High-Speed Shaping Machine
A. Best for cutting plane&formed surface
B. Continuous cutting force&high conversation of the machine
C. The Hight Speed Shaping Machine is with CE / GS Certificate
| High Speed Heavy-Duty Shaping Machine |
| Model | Unit | 150-6300 | 150-6302 | 150-6304 | 150-6306 | 150-6308 |
| Max. Planning Length | mm | 630 | 660 | 700 | 850 | 1000 |
| Max.Distance between Ram | mm | 385 | 385 | 420 | 400 | 400 |
| Bottomand Worktable Surface |
|
|
|
|
|
|
| Max.Horizontal Travel | mm | 630 | 630 | 630 | 710 | 800 |
| Distance of worktable | mm | 360 | 360 | 320 | 360 | 320 |
| Worktable | mm | 630x400 | 660x400 | 700x420 | 800x450 | 1000x500 |
| Travel of Tool Head | mm | 120 | 120 | 125 | 160 | 160 |
| Number of Ram Strokes/Min | mm | 14,20,28,40,56,80 | 14,20,28,40,56 | 11,20,38,52,72,100 | 17,24,36,50,70,100 | 3-44 stepless |
| Range of Table Power Feed | mm(Horizontal) | 0.2-2.5 12 steps | 0.2-2.5 12 steps | 0.15-1.5 10 steps | 0.25-3 12 steps | 0.25-5 stepless |
| mm(Vertical) | 0.08-1.00 12 steps | 0.08-1.00 12 steps | 0.07-0.68 10 steps | 0.12-1.5 12 steps | 0.05-0.25 stepless |
| Speed of Table Rapid Traverse | m/min(Horizontal) |
|
| 0.75 | 1.2 | 3 |
| m/min(Vertical) |
|
| 0.34 | 0.58 | 0.15 |
| T-slot Width | mm | 18 | 18 | 18 | 22 | 22 |
| Main Motor Power | kw | 3 | 3 | 4 | 5.5 | 7.5 |
| N.W/G.W | kg | 1750/1950 | 1870/2070 | 2700/2900 | 2940/3140 | 4600/4800 |
QINGDAO PRECO IMP. & EXP. Co., Ltd is a combination of industry and trade enterprise. With years'sales experience and professional technology team, we can guarantee high quality, punctual delivery, attractive moderate prices and thoughtful service to all our customers.
We not only have the following ready products, but also accept processing trade.
Our products mainly include the follows:
(1) Cutting Tools-------including Drill Bits, End Mills, Milling Cutters, Slitting Saws, Saw Blades, Reamers, Broaches, Taps & Dies, Tool Bits, Carbide Inserts, etc
(2) Measuring Tools-----including Vernier Calipers, Electronic Digital Calipers, Micrometers, Dial Indicators, Squares, Protractors, Gages, etc
(3) Hand Tools-------including Scripers, Steel Rulers and Tapes, Wrench and Socket Sets, etc
(4) Machine Accessories---including Tool Post and Holder, Collects, Chucks, Drill Chucks, Milling Arbors, Sleeves, Vises, Working Tables, etc
(5) Machinery----including Metal Working Machines, Woodworking Machines, Shear Bending and Rolling Machine, etc
(6) Working Equipment-----including Lifting Equipments, Wheels, Halogen Lamps, Protection Gloves, Non-Woven Products, etc
All of our products can meet with ISO, DIN, ANSI and JIS standards. Besides we can also supply with CE and GS certificate.
Our products are mainly exported to Europe, South and North America, Southeast Asia, Middle East and so on.
If you have any requirements, please don't hesitate to contact us. Our further information will be forwarded to you without any delay.
