| Prod Model: |
ARD rubber mandrel(266) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Qingdao,Shandong |
| Main Material: |
Natural Rubber ,Rss3(Imported From Thailand) |
| Cord Fabric: |
1880d2,100% Raw Silk |
| Cross Section: |
Round,Oval, Rectangle and So on |
| Warranty Period: |
18 Months |
| Design Using Life: |
More Than 60 Times |
| Size: |
Customized |
| Work Press: |
From 0.005MPa to 0.12MPa |
| Material: |
Natural Rubber |
| Color: |
Black |
| Capability: |
Construction |
Product Description

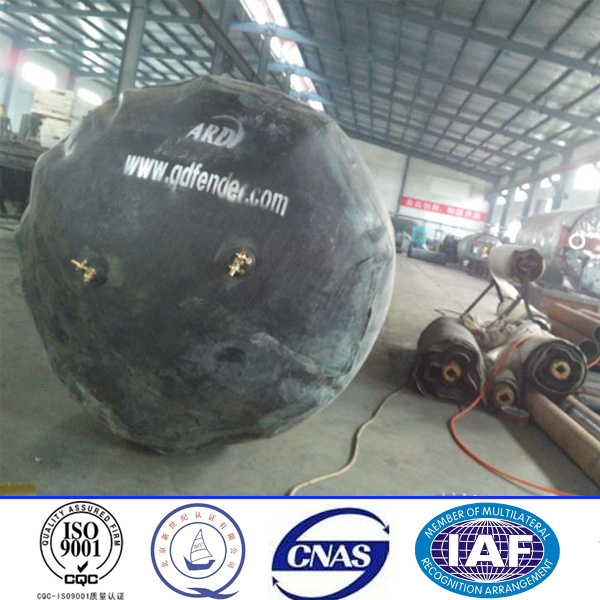

High strength inflatable rubber concrete casting form
Inflatable formwork is a kind of cylinder bag that can expand, shrink, used to form concrete component of cavity, in the process of manufacturing hollow component, put it in the middle, and filled with compressed air, make the capsule expand, as the concrete component solidification then can empty gas from the cavity, pulled out the capsule. It is easy to be used, convenient and durable, is soft and can fold, curly, contraction when it isn't inflate, it have the enough strength to withstand the pressure of concrete when it is inflated, this is incomparable with any traditional template. It is used in reinforced concrete members, including stake, roof, roof board column, beam, building, water conservancy project (shipyards, slipway, dock). Construction practice proves that Inflatable rubber mandrel is simple, not only save materials, and has a shape characteristics, it could be round, oval, rectangle, vaulted, trapezoidal pipeline, etc. Also you can make a straight hole, etc, can make a building structure light, thin wall hollow, change the concrete performance have been used rigid characteristic template situation.
The performance characteristics of ARD rubber airbag mandrel:
1- Design scientific and reasonable used inflatable rubber mandrel, or casting parts, finished product can meet the requirement of design, easy operation, save work, save time, save material.
2- Have good ageing resistance performance and long service life this product use synthetic rubber, natural rubber and strengthen layer vulcanize. Has very good resistance to bulge, flexibility and elasticity, so can satisfy all sorts of work in the conditions of use.
3- Widely applicable temperature, within the scope 10 ° C ~ +90 ° C of the material without change.
4- For building light-duty construction provides favorable conditions to stress hollow concrete component, due to the rubber mandrel, the weight than use stress solid component light 20%, so it can reducing the weight of the upper structure of building, can make the pile foundation short, increase span, make the construction become simple and safety.
5- Construction technology is simple, safe, health, use it only need a few simple tools, without special process. Only put the mandrel into negative reinforcement cage, inflate air to achieve work pressure, then pouring the concrete. When the concrete freezing, put gas out mandrel, in thus complete the product component forming, and it not pollute the environment.
Standard specifications of ARD rubber airbag mandrel:
1> Diameter (D): From 0.3m to 2.2 m.
2>Effective Length (EL): From 6m to24m.
3>Total Length (TL): From 7m to28m.
4>Other specification also available upon customer's request.
Advantages of choose ARD rubber airbag mandrel:
1)Imported main material, guarantee quality of raw material
Natural rubber: RSS3(Hongmanli), imported from Thailand
Nylon cord: 100% raw silk, from CHINA PINGMEI SHENMA GROUP
2)Stringent, special and advanced manufacturing technique
3)The full set of manufacturing equipments experimenting and testing equipments for semi--finished and finished products
4)With long service life and high performance
5)Perfect after-sale service: 4000-722-886
Free customer service, can provide comprehensive technical support and fast and considerate service
6)Solemn promise:
Our products will be repaired, returned back and changed free for quality problem within 12 months
Guiding repaired and maintenance technology free, and providing repaired materials and tools
Long time
Guiding or participating the implementation of related products for projects freely
dia (mm)
|
pressure (MPa)
|
80
|
0.12
|
120
|
0.10
|
150
|
0.08
|
200
|
0.07
|
250
|
0.05
|
400
|
0.04
|
500
|
0.035
|
600
|
0.03
|
700
|
0.027
|
800
|
0.026
|
900
|
0.025
|
2200
|
0.005
|
Qingdao Aorunda Rubber Industry Co., Ltd was founded in 1997, mainly produces inflatable rubber fenders, polyurethane foam filled fenders, marine airbags, core formwork in construction industry, and other rubber products.
Our company is the only factory, which passed ISO9001 quality system certification, the CCC compulsory certification and CCS China classification society certification. Our company holds the fixed assets of about 50, 000, 000 Yuan, totally covers over 30, 000 square meters and possesses a full set of professional rubber production equipments and advanced testing equipments. It is the company which was earliest founded, fastest growing, strong technical force, and the most experienced manufacturer in local area.
Our company has independent self-operation import and export authority. The company has established for many years and It relies on the high quality products to sell well both at home and abroad, and provide service to many large maritime affairs, China marine shipbuilding and JINDONG Paper industry co. Our products mainly exported to many countries and areas, such as Vietnam, Singapore, Malaysia, Indonesia, the Philippines, South Korea, Angola, Greece, Venezuela, Puerto Rico, Taiwan and so on. We have established long-term relationship with many customers from home and abroad, and become their supplier with good quality.
Excellent quality cast brand, sincere truths make future. People in Aorunda work meticulously, integrity to others, look forward to cooperating with more customers and create a better future.
