| Prod Model: |
TW-8001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

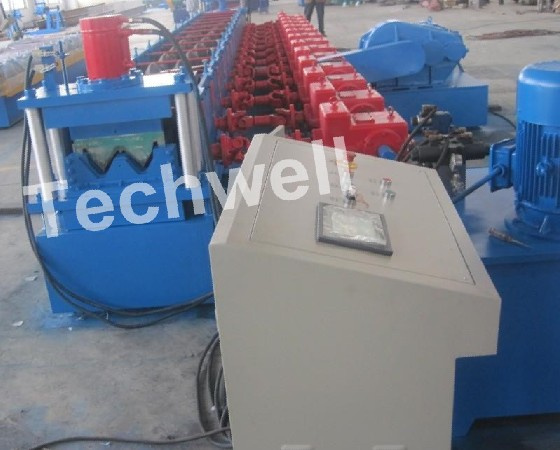

Machine: ZGSY-8001 Highway Guardrail roll forming machine, Guardrail Forming Machine, Crash Barrier Forming Machine
Comprised of decoiler, levelling, punching system, coil feeding machine, guider, roll forming machine, cutting system, collecting platform and the PLC controlling system
Technical parameter:
1. Matching material: Feed width: 480mm, forming thickness(2.0-3.2mm), Q235 galvanized steel strip
2. Material thickness: 2-3.2mm
3. Main motor power for forming: 22kw
4. Forming speed: 10-12m/min
5. Hydraulic station power: 11 kw
6. Roll forming stations: About 17
7. Hydraulic pressure: 20 mpa
8. Controlling system: PLC
9. Total weight: About 25 Ton
Additional information:
Material of forming rollers: GCr15 bearing steel with quenched treatment
Material of cutter blade: Cr 12 mould steel with quenched treatment.
Wuxi Techwell Machinery Manufacturing Co., Ltd is engaged in the produce, design, adjustment and installation all kinds of Cold Roll Forming Machine in China.
Our main Machine:
1) C / Z / U shape purlin ( Channel ) forming machines
2) Roof Tile / wall Panel Forming Machine,
3) Colored glaze tile roll forming machines
4) Highway guardrail forming machines
5) Sandwich panel forming machine Line
6) Floor Deck Roll Forming Machine, Steel deck forming machine
7) Curving Roof Panel forming machine
8) K-Span roll forming machine, Large-span Curving Roof Panel Forming Machine
9) Down Pipe / down spout forming machine
10) Continuous / Discontinuous PU Sandwich Panel machine
11) Corrugated sheet forming machine
12) Corrugated IBR Roof Sheet Forming Machine
13) IBR Sheet forming machine, IBR roof tile forming machine
14) Double Layer Roof Tile Forming Machine
15) Rolling Shutter Door Forming Machine
16) Door Frame Forming Machine
17) K / Square / Half Round Gutter Forming machine
Any interests or need, please kindly send me the profile drawing or requirement, and then we will offer you our best price with detail information.
