| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |

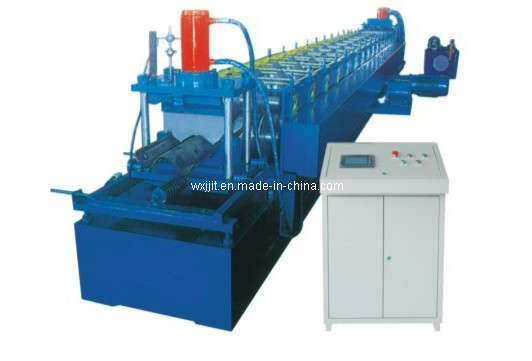

Product Description
A)low noise,
B)high efficiency,
C)easy operate,
D)beautiful appearance,
E)wide application,
F)easy operate,
G)reasonable price.
Flow
Uncoiler--- flatting --- punchine --- fast feeding --- opto-electrical cutting --- forming --- alignment device --- collection --- controller --- forming moulds
Equipment parameter:
1, De-coiler
1) The un-coiler with bipyramid and tension power,
2) Loading 8T. Inner diameter of coil: φ 508mm,
3) Maximum diameter of coil: φ 2000mm,
4) Power of tension power: 2.2kw,
2, Flatting machine
1) The wall plate type seven roller flatter, two rollers clamp deliver, five rollers for leveling.
2) Power: 7.5kw,
3, Punching machine
1) Using type Yl32-315 4 pillar hydraulic pressure puching machine,
2) Hydraulic pressure power: 22kw.
3) Material of blade mould & plunger chip is alloy steel Cr12MOV.
4, Fast feeding
1) Initiative delivers.
2) The power disposition is the 2.2KW.
3)The reductor is ZQ250.
5, Opto-electrical Cutting device
6, Forming machine:
1) Forming racks: 12sets
2) Cast iron torri type
3) Width of machine: 550mm
4) Material of torri is HT200, tempering
5) Double axis transmission gear box 1set, under the axis transmission gear box 10set, bevel gear modulus M=9, material of gear box is only HT200.
6) Power of main machine: 55kw, transducer speed governor. ZQ650, reductor, speed ratio: 48.57, Between the transmission gear box uses 1 inch double chain drive; Connects with the rotary drive shaft between rollers, rotary drive shaft model 140-275; Uses 1.5 inch double chain drives with the speed reducer;
7, Collection table
8, Control system
Production line uses PLC controller, opto-electrical device control cutting. But manual and automatic control whole production line for each part coordination.
9, Forming mould:
Material is GCr15. Whole quenching
|
Raw material |
color steel |
|
Materil thickness |
2-3mm |
|
Working speed |
0-12m/min |
|
Roller station |
17 station |
|
Material of cutting knife |
Cr12 mov |
|
Control system |
panasonic PLC |
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
