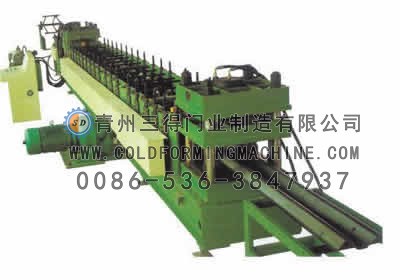

Highway Guardrail Roll Forming Machine

Highway Guardrail Roll Forming Machine
Price: US $ 20000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: SD-0006
Markets: South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia

Product Description

Highway Guardrail Roll Forming Machine
Machine forming specification: Width 480mm, forming thickness(2.0-3.0mm), yield strength 250Mpa max.
Forming speed: 10-12M/min
Forming station: 17 stations + 7 roller levelling
Main motor power: 22KW
Levelling motor power: 2.2KW
Hydraulic motor power: 11KW, pressure 20Mpa
Roller material: GCr15 bearing steel, HRC58-62
Main shaft material: 45# steel, Quenching & Tempering, finish tooling
Main axis dia.: 100mm
Punching and cutting: Hydraulic powered, punch before roll forming, cut to length after roll forming.
Punch& Cut off mold: Cr12 quenching treatment, HRC58-60
Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤ 2mm. Panasonic PLC.
Machine dimension: 13500X2700X1600mmMain structure
Serial No. Commodity & Description Quantity
1 5T Passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Main motor 1 set
4 Hydraulic system 1 set
5 Electrical Control system 1 set
6 Output table 1 set
Total 6 sets
The Chart of Process Flow
De-coiling---feeding---pressing and forming the shape---automatically cutting to length---output
Our enterprise, set up in 2003, is the most powerful manufacturer in cold roll forming machinery production in North China.

Our factory is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffice-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.

We has advanced production equipment. Engineering presonnel and technicians of our factory are in experience of designing, developing, and manufacturing of machineries. They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high effciency, high flexibility and low production cost.

Benefited from customers ins the first, success of our factory comes from success and development. We run this mind through the whole process from design and development of product to after-sales. We will design and manufacture the machinery strictly in accordance with your requirements.

Ours factory lies in China, the biggest developing country of the world, familiar with machinery industry especially steel plate processing industry of developing counties. The company produce steel plate processing machineries suitable developing countries as far as price and automation degree are concerned, saving time and funds for our customers.

We own the good after-sales service network, and can provide supports covering the whole proeess of purchasing, help you get the perfect machinery, make sure that we'll solve all problems when you use the machine conveniently and immediately, and we'll provide you considerate.

That some of our stamping machine sets has been sold to Canada, SouthKorea, Holand, Suriname, SriLanka, Malaysia, Vietnam, Nigeria, Tanzania, India, Azerbaijan, Vladivostok, Mongolia, Armenia, Chita, Kazakstan, Bolivia, Ukraine, Novosibirsk, Congo etc. Made us enter the intemational market.

Service and technology of our accompany you to create a bright future.
