| Prod Model: |
Q37 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Sandblaster |
| Clean Type: |
Industrial Ultrasonic Cleaner |
| Cleaning Process: |
Acid Cleaning / Pickling |
Product Description

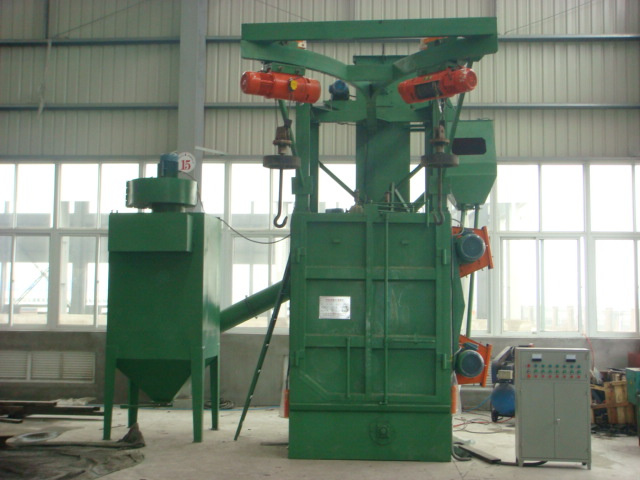

The Q37 series lift hook type throws the pill cleaning up achines mainly o use in the steel structure, the casting, the aluminum alloyand other components superficial cleaning up and the strengthening, widely applies to profession and so on casting, forging and stamping, machinery, steel and iron. Q378E cleaning up machinery and tools pit, are the structure whether there is compact, the productivity higher merit.
Biggest external dimensions (mm): 5047x3850x5156
Single hook weight (kg): 1000
Throws the pill quantity: (kg/min) 2x250
Separator discrete quantity (T/h): 30
Elevator Lifhting power (T/h): 30
Cleaning up workpiece length (mm): Dia. 800x1500
The projectile loads the quantity (kg): 700
Projectile diameter (mm): 1-2
Total output (kw): 39.65
| No. | descprtion | unit | Q376 | Q378C | Q378E | Q3710 |
| 1 | Machine size | mm | 2500x1900x4400 | 4844x3850x5156 | 5047x3850x5156 | 5844x2742x5716 |
| 2 | Single hook limit weight | kg | 600 | 1000 | 1000 | 1000 |
| 3 | Shot blasting capacibility | kg/min | 120x2 | 2x250 | 2x250 | 2x250 |
| 4 | Separating capacilibity | T/h | 15 | 30 | 30 | 30 |
| 5 | Bucket elevating capacilibity | T/h | 15 | 30 | 30 | 30 |
| 6 | Size of the workpiece | mm | Dia. 600x1100 | Dia. 800x1500 | Dia. 800x1500 | Dia. 800x1850 |
| 7 | Ventilation volume | m3/h | 2800 | 8300 | 8300 | 9000 |
| 8 | Total power | kw | 22 | 37.04 | 39.65 | 36.55 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
