| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Type: |

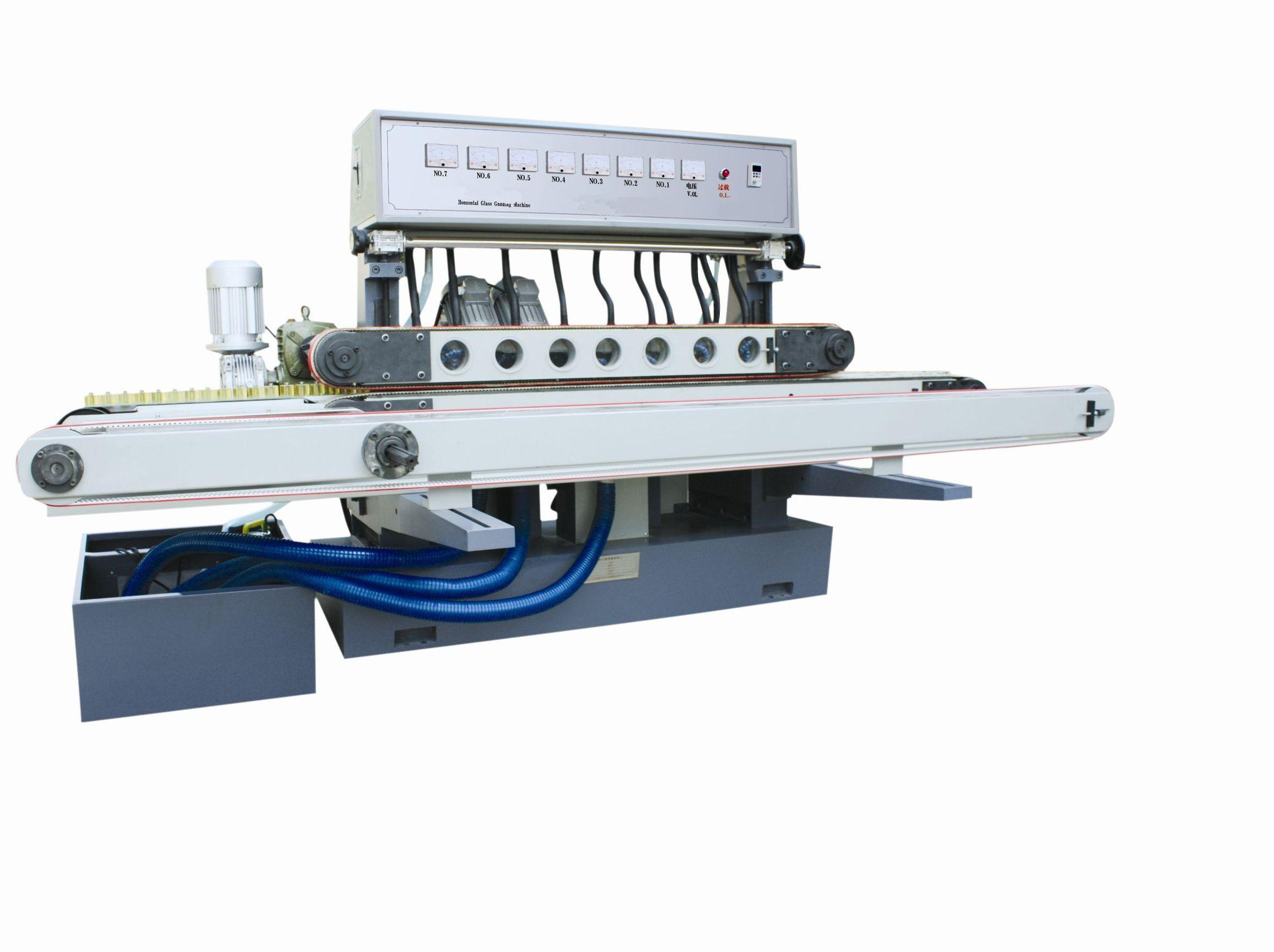

Glass Edging Machine |
| Certification: |
CE |
| Control System: |
Manual, Digital, PLC |
Product Description
It is a kind of very efficient processing equipment. Its base, supports, guide, the electrical block and other key support areas are made of cast iron. Casting body makes it a sturdy machine. The appearance, sleek design, stylish look and non deforming structure ensure a long life and long duration the machine can be used with consistent accuracy. Transmission gear shift part uses single whirlpool and double whirlpool shift, exchange frequency conversion, in order to obtain consecutive speed. Speed is adjustable in a wide range in order to meet the different processing needs of different manufactures. Transporting glass parts we use imported timing belts with red plastic and PU material at the surface. This ensures that the slip power and the friction is very moderate thus resolving the problem of transportation and movement of thin frangible glass. Transmission problems are no more difficult. Grinding system using high-speed, three phase electrical motors, along with latest state-of-engineering excellence grinding wheels are used. This is particularly advantageous to small glass handicrafts manufacturers, providing them long time usage of tools. Control parts and working parts are suitable for human contact and operation. The user friendly design is to the advantage of operator. The machine uses simple, grinding precision continuous stability principal in working. The entire process can be transparent observation hole over control, too. It is the best choice for the glass deep process of working is transparent and can be observed through the sight glass. It is the best glass processing units, especially for manufacturers of handicraft glass.
Using for:
Grinding straight edge of smaller size arts and crafts glass with good polishing;
Grinding straight edge of decoration and furniture glass;
Grinding dtraight edge of smaller size structural glass, non-frame glass door
Measurement: 3000mm x1400mm x1400mm
Total weight: 1800kg
Process the glass thickness: 1-30mm
Angle: 45 degree
Mini workable dimension: 40mm x 40mm
Speed: 0-4m/min
Power: 12.37kw
Input voltage/frequency: ~380v/50Hz
G2 Machinery Trade Company Limited is one professional trading company for glass processing machines such as beveller, edger, driller, washer, shape beveller, sandblaster, oven, cutter, water jet, aceessories and so on.
We have been more than ten years experience in this trade, we can supply you the quality of product is had better, the service is perfect, and price is had better, reply to your all questions very fast, the speed of the deliver is very fast. As customer's requested, we also can send the technician to install the machines.
Customer satisfaction is the highest praise for us! Welcome all overworld clients do business with us!
