| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Certificate: |
Ts16949 ISO9001 SGS CE |
| Origine: |
Qingdao |
| Service: |
OEM and ODM |
| Brand: |
Chifine |
| Standards: |
GB,JIS,AISI,ASTM,SAE,En,DIN |
| Material: |
Steel,Carbon Steel |
| Delivery Condition: |
Rough Machined |
| Heat Treatment: |
Normalized / Annealed / Quenched / Tempered |
| Inspection: |
The Third Party, in House |
| Molding Style: |
Forging |
| Processing Object: |
Metal |

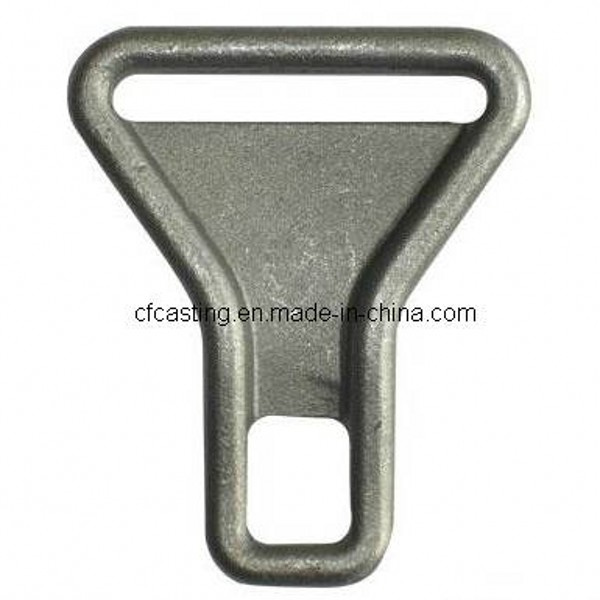

Product Description
1, Material: Steel, alloy steel, stainless steel, and other possible materials, with high quality raw material
2, Advanced production lines, high technology and experienced workers.
3, Size and design are according to customers' requirements
4, Having obtained international approvals
5, Reliable quality control systems.
6, Standard: ISO9001-2000
7, Process: Polishing, nickel, chromo, plating, etc
8, High quality raw material
9, Determined in accordance with product specifications, generally a single 0.5-1 cubic meters
LChemical composition:
Ø OBLF Spectrometer with 29 channels in bi-metal of AL+FE
LMechanical Property
Ø Hardness test
Ø Mechanical property inspection
Ø Impact inspection
LMicrostructure:
Ø Microscope Metallographic Analysis as per AQL based on heating number
LStructure tightness
Ø Destruction test
Ø Weight test
Crack inspection:
LMT
LUT
LX-ray
Coating test:
LCoating thickness tester
LSalt spray test
Dimension:
LConventional gauge
LGo & No-go gauge
LCMM
Leakage check
Press load test
Ø Will be effected acc. To different projects.
Output of our Q. C.:
LFinished products:
Ø Meets AQL requirement. 50ppm, 500ppm, 1000ppm, 5000ppm may vary acc. To project.
LQ. C report:
Ø Dimensional report(all dimension/key dimension)
Ø Material report in 3.1b acc. To EN10204(2004)
Ø Other detailed report like heat treatment curve, crake testing,
Ø Pressure testing, leakage inspection also available if needed.
Material
|
20CrMoTi, 34CrMo, 42CrMo, 40Cr, 50 , 45 ,
Q345B , 20Cr Mn Mo, 35CrMo, 40CrMnMo and so on;
|
Heat treatment
|
M odulation ; annealing ; normalizing ; tempering ; h ardening
|
Machining
|
CNC ; Center lathe
|
Certificate
|
ISO9000 ;TS16949
|
Mininum of Quantity
|
100 Pieces
|
Forging quality
|
3 kg~ 700 kg
|
T erms of trade
|
FOB CFR or CIF
|
Packing Details
|
Wooden cases or other requirements
|
Delivery Time
|
60days
|
Payment Terms
|
L/C, T/T or others
|
Supply Capacity
|
16000 Tons per year
|
Standard
|
DIN,ASTM and so on
|
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
