| Prod Model: |
DH001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shaft Diameter: |
12-500 mm |
| Maximum Stroke: |
Requirements |
| Model Number: |
Double Acting Telescopic Hydraulic Cylinder, Hydra |
| Color: |
Yellow,Black,Red,Blue |
| Place Of Origin: |
Jiangsu, China (Mainland) |
| Piston Rod: |
Stainless Steel |
| Seals: |
Parker Hallite Nok |
| Warranty: |
Three Year |
| Application: |
Excavator, Metallurgy Forging ,Machinery |
| Customize: |
Professional OEM |
| Material: |
Steel |
| Structure: |
Piston Cylinder |
| Power: |
Hydraulic |
| Standard: |
Nonstandard |
| Pressure Direction: |
Double-acting Cylinder |
Product Description

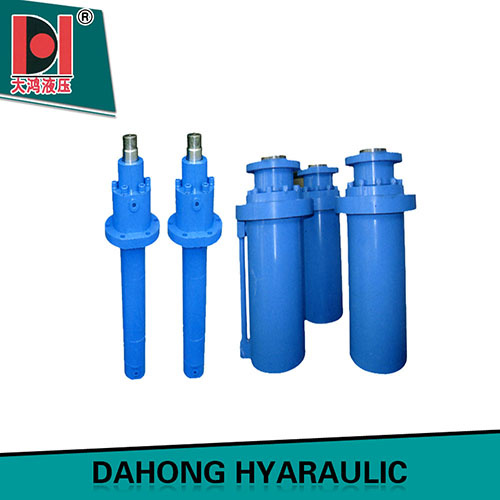

Made in China telescopic hydraulic cylinder with low price
1.Details
Cylinder
bore | Rod diameter
Speed ratio | 16MPa | Maximum
stroke |
| Thrust | Pull |
| 1.33 | 1.46 | 2 | 20.11 | 1.33 | 1.46 | 2 | 500 |
| 40 | 20 | 22 | 25 | 31.42 | 15.08 | 14.02 | 12.25 | 600 |
| 50 | 25 | 28 | 32 | 49.88 | 23.56 | 21.56 | 18.55 | 800 |
| 63 | 32 | 35 | 45 | 80.42 | 37.01 | 34.48 | 24.43 | 2000 |
| 80 | 40 | 45 | 55 | 101.79 | 60.23 | 54.98 | 42.41 | 2000 |
| 90 | 45 | 50 | 63 | 125.66 | 76.32 | 70.37 | 51.91 | 4000 |
| 100 | 50 | 55 | 70 | 152.06 | 94.25 | 87.95 | 64.08 | 4000 |
| 110 | 55 | 63 | 80 | 152.06 | 114.04 | 102.18 | 71.63 | 4000 |
| 125 | 63 | 70 | 90 | 196.35 | 146.47 | 134.77 | 94.56 | 4000 |
| 140 | 70 | 80 | 100 | 246.3 | 184.73 | 165.88 | 120.54 | 4000 |
| 150 | 75 | 85 | 105 | 282.74 | 212.06 | 191.95 | 144.2 | 4000 |
| 160 | 80 | 90 | 110 | 321.7 | 241.27 | 219.91 | 169.65 | 4000 |
| 180 | 90 | 100 | 125 | 407.15 | 305.36 | 281.49 | 210.8 | 4000 |
| 200 | 100 | 110 | 140 | 502.64 | 376.99 | 350.6 | 256.35 | 4000 |
| 220 | 110 | 125 | 160 | 608.21 | 456.16 | 411.86 | 286.51 | 4000 |
| 250 | 125 | 140 | 180 | 785.4 | 589.05 | 539.1 | 378.25 | 4000 |
2.Company Information
DAHONG hydraulic pneumatic complete sets of the company was founded in 2001,has provided more than 300 customers at home and abroad design optimization solutions and reliable products, whether in engineering machinery, railway bridge machinery, port of ship machinery, metallurgy, machinery,and DAHONG hydraulic according to user requirements to provide various standard and non-standard sizes oil cylinder design optimization solutions and products.
3.Packaging
Packaging Details:Wooden case, or as per customer's requirements for hydraulic cylinder.
Delivery Detail:7-21 days for hydraulic cylinder
4.FAQ
1. Q: What is the payment method?
A: For small amount we use 100%T/T bank transfer or West Union service, for great amount this will be 30%T/T in advance and the balance will be paid before delivering.
2. Q: Can I have a specification sheet of your product?
A: Yes, please send e-mail or send me a message via TM so that I can send you the catalog.
3. Q: How about the warranty and after-sale service?
A: All of our products have one year warranty, and we can offer you long-distance after-sale service 7*24h.
Wuxi Chiyang International Trading Co., Ltd. is a branch company of Shandong Chiyang Group, located in the famous Tourist City-Wuxi, China.
We are an innovative Global Trade Service provider for those professional manufacturers in different industry. Our team has abundant of experience in import and export, integrating our partner factories' production capability, R&D, Quality Control, we complement each other's advantages to provide the best products and service to customers from all over the world.
Our goal is to build a bridge between your market demands and the qualified factory, making your purchase more economically and efficiently.
