Product Description

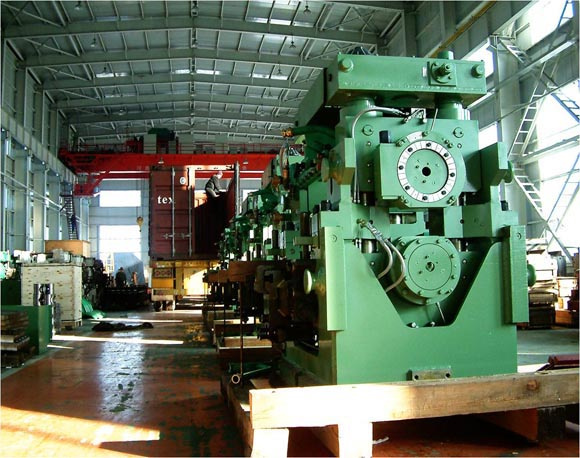

45 Degree No twist high speed wire rod finishing rolling mill
Brief introduction
-- Production line with annual capacity: 600, 000.00 tons, automatic continuous rolling mill applied.
-- Billet size: 150*150*12000mm
-- Product specifications: Ø 8-Ø 32mm, 12000mm length rebar
-- Roughing rolling mill stands: Ø 550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
-- Intermediate rolling mill stands: Ø 420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
-- Finishing rolling mill stands: Ø 320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.
-- Rolling speed: 12-18meters/second
Product
Material: Carbon steel, structure steel, low alloy steel
Product specification: Bar/rebars Ø 8 to Ø 32 mm
Raw material
The production line is supposed to use continuous casting billet with size of 150*150*12000mm The allowable tolerance for section dimension of billet should be in accordance with the regulation of YB-2011-83.
4. Process layout
Roughing mill stands Ø 550 X 6 (H/V) No. 1 to No. 6 mill stands -- Intermediate mill stands Ø 420 X 6 (H/V) No. 7 to No. 12 mill stands -- Finishing mill stands Ø 320 X 6 (H/V) No. 13 to No. 18 mill stands, all mill stands driven by DC motor and continuous rolling method applied. Rolling mill No. 14, 16 and 18 are Ø 320 H/V interchangeable rolling mill stands
Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a professional manufacturer of high-speed wire-rod, high-speed tray screw steel, hard-faced gearbox and relative homemade spare parts of all kinds. We have been in the line over 22 years and gather lots of technical and production experiences. Depending on the advanced techniques and constantly absorbing the hi-tech of domestic and international markets, we choose high technicians and completely precision equipment from domestic and overseas markets.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical and mechanical industries.
Our company uses the specific manufacture way to achieve the excellent product with the best quality. Our purpose is to satisfy our clients. Our high-quality products have passed ISO9001 certificate and we update our level to international standards. According to GB/T19001, we build the metallurgical high speed finishing wire mill and hard-faced gearboxes quality administrational system.
Our trademark "Hangji" is the famous brand in China. In the meantime, short-stress line bar mil, high-speed wire-rod finishing rolling mill and finishing rolling mill have acquired the national patents.
High-speed wire-rod production lines include heating furnace, roughing finishing rolling mill, middle finishing rolling mill, pre-finishing rolling mill, finishing rolling mill, pinch roll, laying head, picker and other high precision equipment. It is the technology-intensive product that combines modern rolling techniques with machine, electron, hydraumatic, pneumatic and instrument. Only a few countries in the world can offer the complex, high precision and difficult technology.
Our company has built cooperative relationships with SMS Siemag AG, DEMAG and JPMorgan Chase, and digested and absorbed the advanced product manufacture techniques. We integrate the processing, test methods and special manufacture methods to build our own administration system, quality system and techniques system. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We look forward to cooperate with you.
