| Prod Model: |
Q3110BI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Name: |

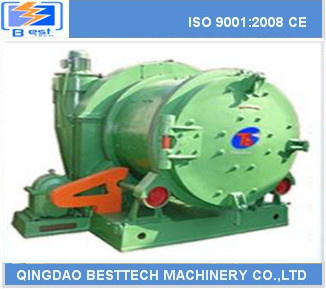

Shot Blasting Machine |
| Colour: |
According to Your Requirement |
| Type: |
Drum Type |
| Certification: |
ISO |
| Application: |
Metal Cleaning |
Product Description
Product Description
1.This type shot blasting machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way.
2.The high-speed impeller of airless shot blasting machine throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface.
3. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 15g in medium or small-scale casting or forging workshops.
Technical parameter
Item |
unit |
Q3110BI |
Q3110BII |
Q3113BI |
Q3113BII |
Drum diameter |
mm |
1000 |
1000 |
1300 |
1300 |
Loading capacity |
kg |
300 |
300 |
600 |
600 |
Productivity |
kg/h |
600-1500 |
600-1500 |
2500-3500 |
2500-3500 |
Power |
kw |
10 |
10 |
14.5 |
16 |
Maximum weight of single workpiece |
kg |
15 |
15 |
30 |
30 |
Rotational speed of rolling drum |
r/min |
3 |
3 |
2.5 |
2.5 |
Abrasive flow rate |
kg/min |
120 |
120 |
160 |
160 |
Ventilation capacity |
m3/h |
800 |
2000 |
2000 |
2800 |
Dedusting efficiency |
% |
85 |
99 |
85 |
99 |
Outline dimensions |
mm |
2078*2458*1861 |
3870*2458*2250 |
2550*2341*2250 |
4362*2341*2250 |
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Qingdao Besttech Machinery Co., Ltd. Specializing in the production of dust environmental protection equipment, shot blasting cleaning machine, catenary shot blasting cleaning machine, through type shot blasting cleaning machine, crawler shot blasting cleaning machine, surface (lumen) blasting treatment and improved equipment, resin sand reclamation equipment production line, clay sand production line equipment, molding machine, hot metal ladle, casting Machinery and equipment, environmental protection equipment, steel shot blasting cleaning machine, etc. Is the highest technical content, complete varieties, production, sales of shot blasting machine and casting machinery production base, also is the Beijing Olympic Games the bird's nest, water cube and offshore oil platform main body engineering cooperation unit construction enterprises, is the domestic industry leader.
Qingdao caster ChongJi was founded in 1972, state-owned enterprises (original Qingdao three casting machine) the worker on the basis of the optimum combination to create enterprise, has more than 470 employees, professional and technical personnel 120 people, the factory covers an area of 120 mu, with various types of processing and manufacturing equipment more than 200 Taiwan (sets), has yearly produces mechanical equipment more than 1500 Taiwan (sets) of production capacity, products are exported to the United States, Russia, Ukraine, India, Vietnam, Thailand, Malaysia, Saudi Arabia, Hong Kong and other countries and regions, and took the lead through the ISO9001: 2008 international quality system certification.
