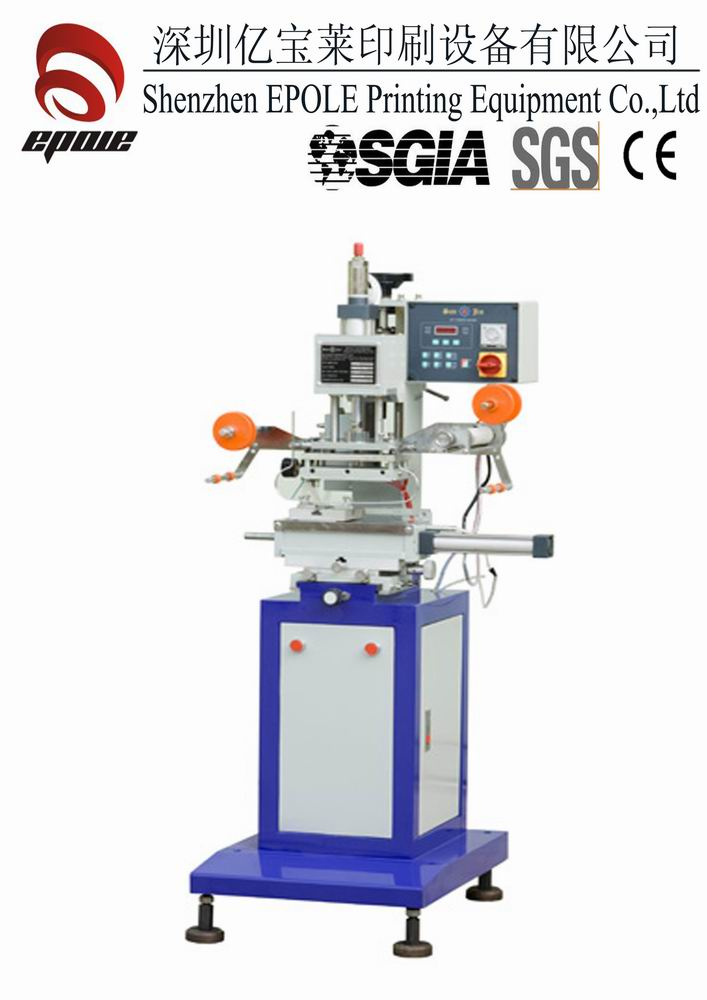

Hot Stamping Machine (YH-168S)

Hot Stamping Machine (YH-168S)
Price: Negotiable
Trade Terms: as Your Requirments
Min Order: 1
Prod Model: YH-168S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stamping Area: 100*160mm
Stamping Speed: 1000PCS/Hour
Stamping Temperature: Room Temperature ~280 Degree
Air Pressure: 5 Bar
Machine Dimension: 530*580*1385mm
Machine Weight: 93kg

Product Description

Hot stamping machine details:

1. Micro-computer control and pneumatic component drive

2. Stamping pressure, temperature and time adjustable

3. Worktable could be adjustable for forth/back move, easy and safe operation

4. Worktable could be adjustable for forth/back, left/right position, as well as turned slightly

5. Automatic and adjustable paper feeding, collection

6. According to the height of working pieces, cylinder stroke and the height of pad head could be adjusted by cylinder tune-way nut and handle respectively

Hot stamping machine Specifications:

Stamp plate size: 100*168mm

Worktable size: 127*220mm

Stroke: 25mm

Temperature range: R. T. -280

Max stamping height: 185mm

Stamping pressure: 130kgf

Max speed: 1200PCS/hr

Voltage: 220V 50Hz

Power: 900W

Air pressure: 4-7bar

Air consumption: <40L/min

Measurement: 530*580*1385 mm
Shenzhen Epole Printing Equipment Co., Ltd is a manufacturer of printing machines and relevant accessory; Our company has independent R&D center occupied an area of 2300 square meters. We had obtained CE certifications of our machines and RoHS certifications of Ink, and audited supplier of SGS.

Our Product lines include Screen Printing Machine, Pad Printer, Hot Stamping Machine, Heat Transfer Machine, Laminating Machine, UV Curing Machine, Ink Mixer, Industrial Oven, Exposure Machine, Mechanical Stretching Machine, Ink, Mesh.

What's more, Our Company has successful foreign trading experience in Europe, Southeast Asia, MID-East, North American and other countries all over the world.

Our products are manufactured strictly according to projects production process required to ensure the unity and stability of products effectively. We choose raw materials and famous brand accessories all over the world, such as Germany FESTO and Japan SMC pneumatic components. Furthermore, every machine must be strictly inspected at least 5000 times to make sure our products achieve a perfect situation.

We adhere to the principle of "honesty and mutual benefit". We provide dealers and terminal customers with the best service including free training and technical support. We accept OEM and ODM orders. Welcome customers all over the world to visit our factory for investigation, guidance and communication. We seek worldwide distributors for developing hand in hand.

Main Products:

Screen Printing Machine Series: Oblique Arm Screen Printing Machine, Vertical Screen Printing Machine, Flat Screen Printing Machine, Curved Surface Screen Printing Machine, Automatic Screen Printing Machine, etc.

Pad Printer Series: Single Color Pad Printer, Multi-colors Pad Printer, Pad Printer with Shuttle or Conveyor, Pad Printer with Ink Cup, Pad Printer with Ink Plate.

Hot Stamping Machine Series: Flat Hot Stamping Machine, Curved Surface Hot Stamping Machine, Heat Transfer Machine

Laminating Machine Series: It is widely used in Packaging Box, Advertising Picture Album, Large Scale Window Lens, PVC Scutcheon, Glass, Metal Plate, Electrical Parts, Label, Touch Screen, and Board

Complementary Equipment: UV Curing Machine, Flame Treater, Corona Treater, Mechanical Stretching Machine, Exposure Machine, Industrial Oven, Air Compressor, Ink, Solvent, Mesh, Screen Frame, Printing Pad, Plate, Photoresist, Frictioning

Our company have complete product system, with Precision Screen Printing Plate-making center, we can supply you professional design, manufacture, sale, technical training, after-sales service.
