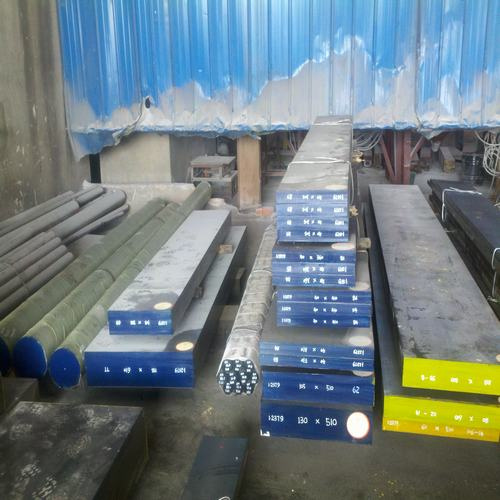

Hot Work Tool Steel Flat Bar 1.2738
| Price: |
US $ 500-5000/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T |
| Prod Model: |
1.2738 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
20--300mm |
| Width: |
200--800mm |
| Type: |
Flat |
| Standard: |
DIN |
| Technique: |
Forged |
| Special Use: |
Mold Steel |
| Application: |
Tool Steel Bar |
| Steel Grade: |
Tool Steel |
| Composition: |
Alloy Steel |
| Shape: |
Flat |
| Surface Treatment: |
Machined Surface |
Product Description
Specifications
Din 1.2738plastic mould steel with polished condition
1.A/N/Q+T provide
2.Sample free
3.Black or Bright
4.T Max:800mm
Product Description
1,Size of 1.2738 Plastic Mould Steel |
Round bar |
Diameter(mm) |
Length (mm) |
|
20~800 |
3000~9000 |
|
Plate |
Thickness(mm) |
Width (mm) |
Length (mm) |
Max:800 |
Max:2200 |
Max:9000 |
The specification can be customized. |
2,Chemical Compositons |
Grade |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Ni |
3Cr2MnNiMo |
0.32~0.40 |
0.20~0.40 |
1.10~1.50 |
≤0.030 |
≤0.030 |
1.70~2.00 |
0.25~0.40 |
0.85~1.15 |
P20+Ni |
0.32~0.40 |
0.20~0.40 |
1.10~1.50 |
≤0.030 |
≤0.030 |
1.70~2.00 |
0.25~0.40 |
0.85~1.20 |
1.2738 | 0.35~0.45 | 0.20~0.40 | 1.30~1.60 | ≤0.030 | ≤0.030 |
1.80~2.10 |
0.15-0.25 |
0.90~1.20 |
3,Features of 1.2738 Plastic Mould steel |
1, Alloy tool steel which offers good machineability; |
2, Excellent polished finish for large section; |
3, Supplied in the hardened and tempered condition ready for machining; |
4, Can be case hardened or nitrided. |
4,Typical Applications |
1, Ideally suited for the production of plastic moulds; |
2, High-gloss requirements of the mold application; |
3, Large mould, such as fridge and air-conditioner. |
We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.
Young Sea Industry's Mission:
Find right product to satisfy what customer need.
Optimize and control to adapt the discrepancy between the manufacturer and purchaser.
Enhance the customer's advantage
We could accept the order base on your modified chemical composition, size and required manufacturing process. Welcome to Young Sea Industry.
Huangshi Young Sea Industry And Trade Co., Ltd. is located in Huangshi City, Hubei Province, construction in 2009 years. We offer Machining components to Huangshi Tri-Ring Forging Machine Co., Ltd. And Hubei Xinyegang Steel Auto Parts Co., Ltd.
We are also the tool steel and casting steel distributor & exporter in Huangshi China. And we are the exporting company of the factory:
Huangshi Shengda Mould Material Co., Ltd. The equipments of our factory are:
1. Two medium-frequency induction furnaces ( capacity 3.5 ton each);
2. Six forging hammers: One for 1.0 ton, one for 1.5 ton, one for 2.0 ton, one for 3.0 ton, one for 6.0 ton, one for 8.0 ton;
3. Four annealing furnaces: Two furnaces for 20.0 ton, two furnaces for 30.0 ton;
4. Three peeling machines;
5. One planomiller (4000*1000), One horizontal drilling machine and boring lathe.
We can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and many other alloy tool steel. We are mainly supplying tool steels as below aboard:
AISI: D2, D3, D6, D7, A2, A6, A8, A10, H10, H11, H13, H21, S1, S5, S7, O1, O6;
DIN: 1.2080, 1.2316, 1.2343, 1.2344, 1.2379, 1.2510, 1.2601, 1.2713, 1.2714, 1.2767, 1.2842;
JIS: SKD1, SKD11, SKD61, SKS11, SKS41, DC53, NAK80;
GB: Cr12, Cr12MOV, Cr12Mo1V1, 6CrW2Si, 4Cr5MoSiV, 4Cr5MoSiV1, 3Cr2W8V, 2Cr13Ni2
