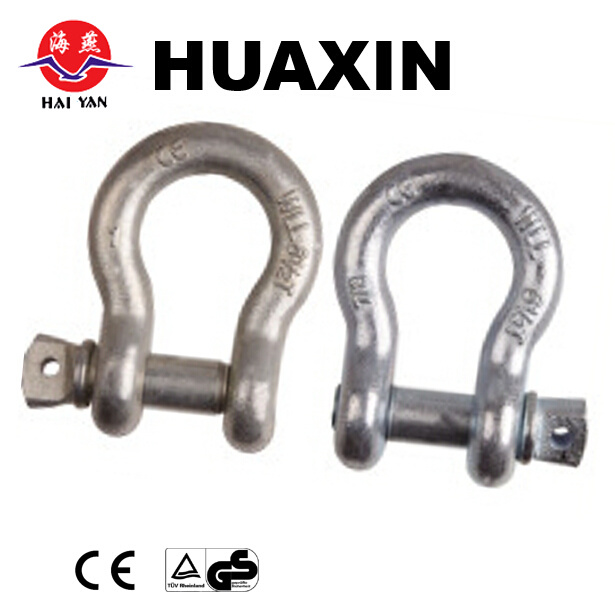

Huaxin G209 Hnchor Shackle 1t
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
G209 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Huaxin |
| Material: |
Steel |
| Shape: |
U/D |
Product Description
1)The manufacturering process can be the high quality alloy steel with the method of drop-forging and hammer forging. All forging parts with the heat treatment.2)In order to make the better impact resistance, load capacity, toughness and enlongation, which can greatly improving the safety and longevity.3)Dip Coating, Painting, Galvanized, Hot-dipped.4)Safety factor 4 times or 6 times, testing load 2.5 times.5)The Max load capacity can be in your requirements as 100T-1000T.
| G209 U.S HNCHOR Shackle |
| Item NO. | WLL/T | A | B | D | E | F | G |
| WY504-1/2 | 2 | 20 | 16 | 12 | 33 | 29 | 58 |
| WY504-5/8 | 3.25 | 27 | 19 | 16 | 43 | 38 | 75 |
| WY504-3/4 | 4.75 | 32 | 22 | 19 | 51 | 46 | 89 |
| WY504-7/8 | 6.5 | 38 | 25 | 22 | 58 | 53 | 102 |
| WY504-1 | 8.5 | 43 | 28 | 25.5 | 68 | 60.5 | 119 |
| WY504-1/8 | 9.5 | 48 | 32 | 29 | 74 | 68.5 | 134 |
| WY504-1/4 | 12 | 50 | 36 | 32 | 81 | 76 | 145 |
| WY504-3/8 | 13.5 | 55 | 38 | 35 | 90 | 84 | 160 |
| WY504-1/2 | 17 | 60.5 | 42 | 38 | 97 | 92 | 173 |
| WY504-3/4 | 25 | 73 | 50 | 44.5 | 127 | 106.5 | 216 |
| WY504-2 | 35 | 83 | 56 | 51 | 146 | 122 | 248 |
| WY504-1/2 | 55 | 103 | 70 | 63 | 181 | 144.5 | 307 |
| WY504-3 | 85 | 130 | 80 | 80 | 210 | 165 | 370 |
| WY504-1/2 | 120 | 145 | 95.5 | 95 | 215 | 198 | 405
|
Baoding Huaxin Crane Machinery Co., Ltd...Was founded in 1999 in Baoding. Its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.
We specializes in manufacturing standard heavy duty lifting chain (φ 4 -φ 12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.
Huaxin 's primary purpose is produce heavy duty and more reliable lifting chain for lifting application to achieve superior performance and usage, withstand more abuse, high abrasion resistance, greater lifting load. Each bundle of raw materials come with alloy steel quality inspection report issued by the steelmaker, including the component analysis, production date, produced furnace number, and so on, to ensure the traceability of each batch of raw materials.
As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.
In Tradition of Dynamic Innovation "that is in the tradition of a modern and dynamically growing family organization, the Huaxin Group has officially been nominated as a Hidden Champion of the 21st Century because we are in our defined sectors worldwide leader in quality and technology.
