| Prod Model: |
HX-200KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
200kw |
| Frequency: |
20kHz |
| Forging Forming Method: |
Free Forging |
Product Description
An induction heating system is formed by
An RF power supply
Induction coil
Workpiece (the material to be heated or treated).
HengXin high frequency induction heating machine

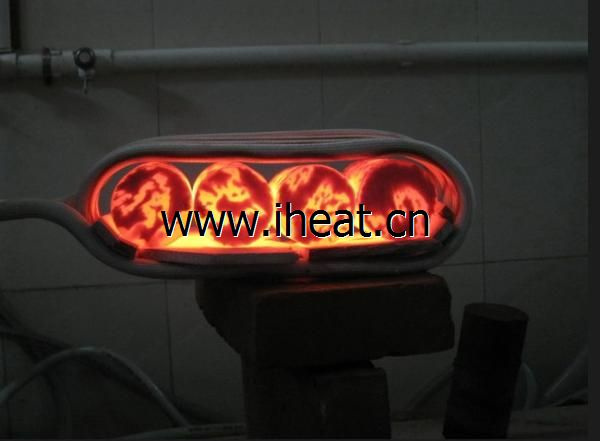

These induction systems are used for brazing, soldering, curing, melting, heat treating, shrink fitting, heat staking, sealing metal to glass, and many other industrial and research applications. The RF induction heating power supply produces a magnetic field around the workpiece by sending an alternating current through the induction coil. When the workpiece is placed in the coil, the magnetic field induces eddy currents in the workpiece, generating precise amounts of clean, localized heat without any physical contact between the coil and workpiece.
Advantages over resistance brazing:
1, Rapid brazing, only 1--8 seconds are needed for one tip;
2, Good repeatability to ensure the quality of every tip;
3, By rapid and even heating, break and poor quality of the tip is prevented;
4, High quality and high hardness saw can be produced by induction brazing;
Agile tuning lets you move between discrete and continuous heating operations without time-consuming change-overs or complicated setups. A broad frequency range means one system can supply deep, bulk heating for brazing and soldering or for more shallow, concentrated heating for case-hardening or for smaller parts. Flameless, non-contact heating minimizes waste by focusing energy only on the zone to be heated.
|
Output Vibrated Power |
200 KVA |
|
Output Vibrated Frequency |
20KHZ |
|
Input Voltage |
380 Volts (Three Phase) |
|
Input Power |
200 KW |
|
Auto Heating Time |
1~99 (Sec.) |
|
Auto Retaining Time |
1~99 (Sec.) |
|
Auto Heating Current |
200~1000 A |
|
Auto Retaining Current |
200~1000 A |
|
Duty Cycle |
80% |
|
Cooling Water Desire |
0.2MPA | <40¡æ| 15L/Min |
|
Size |
760mm¡Á820mm¡Á1220mm |
|
Weight |
428KG |
HengXin Science & Technology Co., Ltd. is a high-tech company which specialized in Mechanical & Electrical areas research and development.
Located in Foshan City which is in the center of Zhujiang Delta Area, the company shares a convenient transportation position; It is close to Hong Kong, Macau, Guangzhou, and Zhuhai.
We are specialized in manufacturing of medium and high frequency induction heating equipment. We also can design and fabricate various types of medium and high frequency induction heating equipment and components upon the customer requirement. Our equipment is worldly used in blaze welding of diamond disc saw, horniness alloy steel knife and blade; Quenching, anneal, heat treatment, and colored metal melting. Our parts are characterized as full of specification, large of application range and high reliability.
Continuous improvement to perfect is our target. We produce, design and develop new parts at the reasonable price which is with economy and environmental performance and small appearance. Devote to society with the qualified products is our spirit for enterprise development. We will pay more attention to user's requirement on the parts to make our products more realistic and price more reasonable.
Science and technology is the first productivity. We have strong ability in research, development and innovation of the new parts. We have established a wild sales net which is supported by advanced technology. We have set up lots of office throughout China, which is the guarantee of the prompt service to customers.
We promote Human Being as the base and pursue the excellence as the company operation major objectives. In today's society, we create qualified parts on the base of our modern enterprise management system, high-qualified staff and advanced equipment. We wish to cooperate with different customers in the future.
