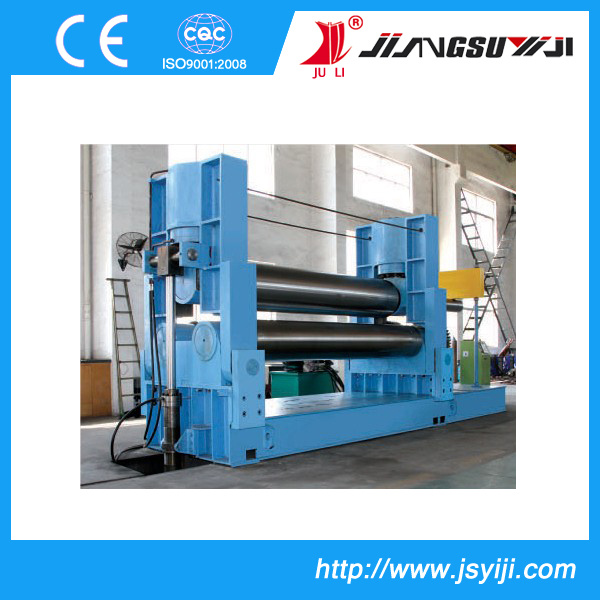

Hydraulic 3 Roller Rolling Machine W11y-25*2500 with CE

Prod Model:	W11Y-Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:Customized:	Power: Mechanical
Forging Forming Method:	Free Forging

Product Description

Specifications
1. Competitive price
2. Innovative design
3. High-quality machine
4. Attentive service
5. A strong technique team
6. Movable type

Specification:
Max bending thickness(mm): 25
Max bending width(mm): 2500
Rolling speed(m/min): 4.5
Min inside diameter when full-loading(mm): 750
Diameter of top shaft(mm): 360
Diameter of bottom shaft(mm): 270
Motor power(kw): 18.5
Central distance between bottom shaft(mm): 480

This machine belongs to hydraulic three-roller plate bending machine, which is used to roll the plate into round shape, U-shape, multistage R and other different shape(for example, rolling cone-shape), and the top roller can make up-down movement.
Rolling round is achieved by lower roller movement droved by reducer. Due to the level of lower roller will not change, it is easy to feed the plate and operate.
Main Structure
The main structures include upper roller device, vertically movement device for upper roller, down roller device, initiative running device, overturn device, machine frames, the left and right, bottom base.
1). Upper roller device include main oil tank, base frame for upper roller, adjustable axletree on both sides for upper rollers and etc.
Main oil tank and piston pole belong to 45# forged parts, inter surface of box polished, the surface of piston pole plated by Cr. Pressurized loop choose Yx type from Japan. The pressure of material shape is from cavity work without pole. Piston pole of main oil box connect with axletree from of upper roller
The upper roller is designed as drum shape. Normally utilize 0.7 load of upper roller to mend deform degree
On the both side of upper rollers, install two rows and two lines adjustable axletree.
2). The movement device vertically for upper roller
Directly drive with double oil boxes and the highest pressure for work reach 19.5Mpa. There are two roll axletrees on both sides of upper rollers. The base frame of these roll axletrees may move vertically with the help of removable piston pole along the trace of kickstand guide. The displacement transducer installed on both sides of the axletrees, so that the quantity display can show movement distance of upper rollers
3). The device for down rollers and the movement device horizontally.
The device for the down rollers include down rollers, axletree frame of down rollers, gears for down roller drive, the base frame of sliding bearings for down rollers, etc. The key initiative gear drives the input gear which drives the upper roller.
4). Main transmission device
The main transmission device include main engine, speed reducer. The main transmission device may roll in the positive and negative direction in order to provide the power for material roll.
Carry Out Standard
JB/T8796-1998 The precision of plate rolling machine
JB/T1829-1997 General technical condition of forge and press machinery
GB17120-1997 Safety technical condition of forge and press machinery
JB/T8609-1997 Welding technical condition of forge and press machinery
JB3623-84 Noise measurement way of forge and press machinery
JB/ZQ4000.5 General technical condition of gorge parts
JB/ZQ4000.9 General technical condition of assembly
JB/ZQ4000.10 General technical condition of painting
GB3766-83 General technical condition of hydraulic system
GB16754-1997 Urgent stop design principle of machinery safety
GB/T5226.1-1996 Industry machine electric equipment
