| Price: | US $ 15100/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | GT-500 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: | New |
| Mould: | Customized |
| Work Speed: | 4.5mm/S up and 8mm/S Down |
| Driven Power: | Hydraulic |
| Press Capacity: | 5000 Kn |
| Net Weight: | 3000kg |
| Certification: | CE, ISO |
| Voltage: | 380V or Customized |
| Dimension: | 1600X680X1800mm |

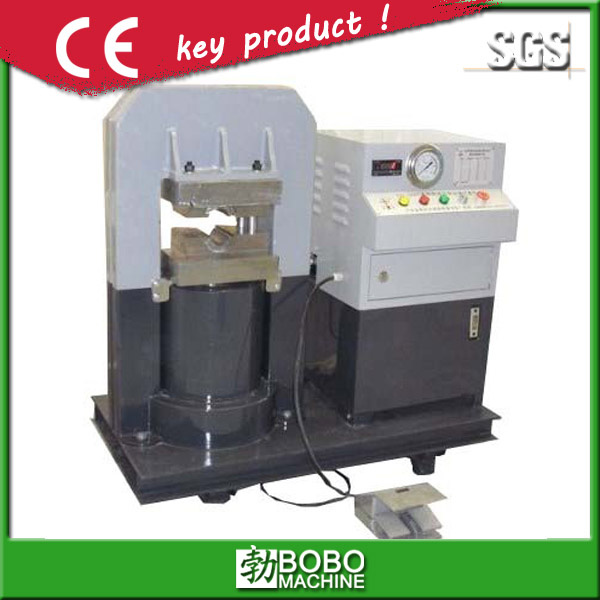

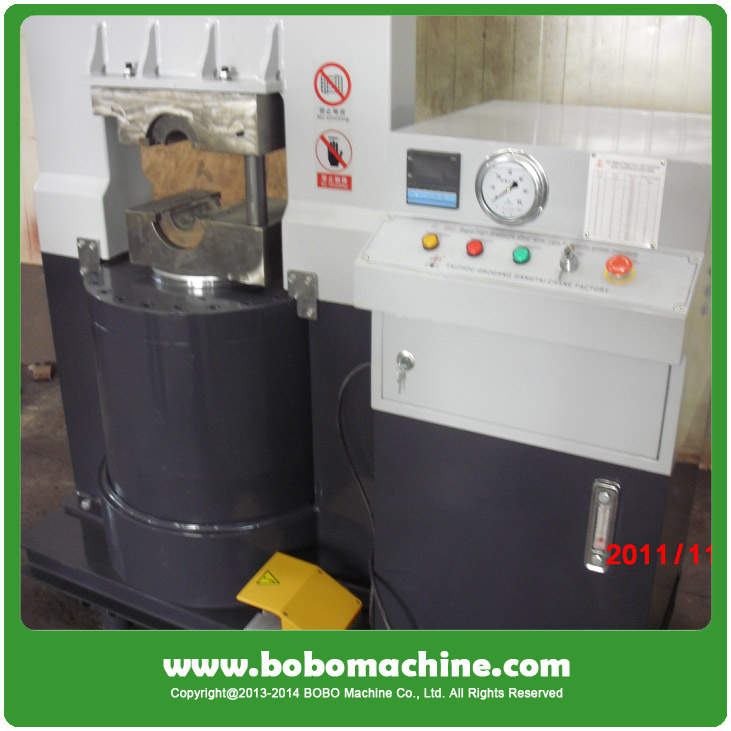

| Item: | Wire Rope Press |
| Forging Forming Method: | Mold Forging |
Feature of wire rope press
Cylinder embedded design

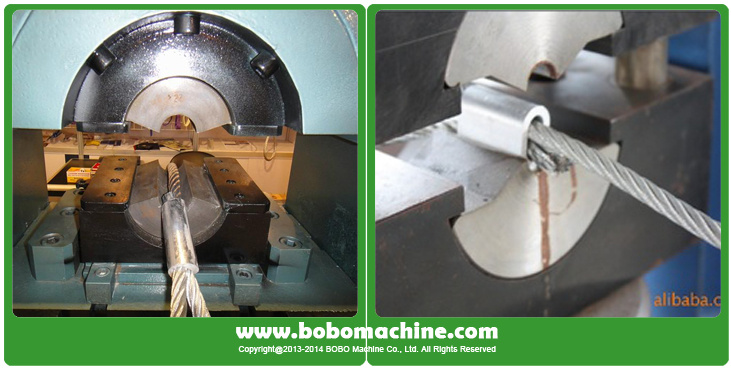

Round independent mold
Main technical data of wire rope press
| 1 | Model | GT-500 |
| 2 | Max.press power | 5000KN |
| 3 | Max. wire rope diameter | 32/ 42mm |
| 4 | Max. working pressure | 28MPa |
| 5 | Max. piston stroke | 120mm |
| 6 | Work speed | 4.5mm/s up and 8mm/s down |
| 7 | Motor capacity | 11kw |
| 8 | Dimension | 1600x680x1800mm |
| 9 | Net Weight | 3000kg |
