| Prod Model: |
HYG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-48" |
| Delivery: |
30~60 Days |
| Automatic: |
Automatic |
| Way Of Forming: |
Hot Induction by Medium Frequency Power Source |
| Finished Products: |
Carbon Steel Bends,Fittings |
| Input Voltage: |
Three Phase Four Line 380V( -10% _ +15%) |
| Working Time: |
8-24 Hours/Day |
| Certificate: |
CE |
| Trial Before Shipment: |
Yes,by Small Size to Check Working of Each Part |
| Guarantee: |
1 Year of Whole Machine,3 Months for Spares |
| Forging Forming Method: |
Mold Forging |
Product Description

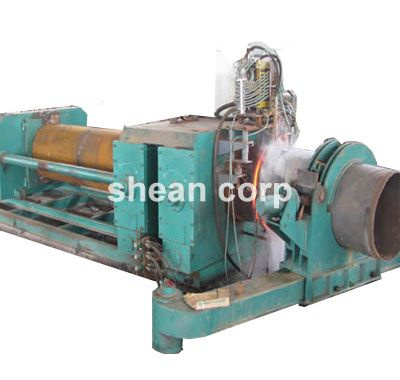

Hydraulic cnc pipe bending machine
Shean is a manufacture of hydraulic cnc pipe bending machine in China and the machine we supplied is popular with customers.
Following is the technical data of hydraulic cnc pipe bending machine:
Max. Process diameter: OD 1420mm
Min. Process diameter: OD 21mm
Min. Process thickness: 10mm
Max. Process thickness: 80mm
Min bending radius R=2.5D
Max. Bending radius R=10D
Max. Pushing force: 50T
The hydraulic cnc pipe bending machine consists of the following components: Hydraulic pipe pushing machine, bending radius of the angle adjustment device, hydraulic pump, the total console, motor control cabinets, medium frequency power, capacitor cabinets, water cable, electric choke.
Welcome to our factory visit. Shean also supply all kinds of machine according to customer requirements. We supply hydraulic cnc pipe bending machine, elbow forming machine, press machine, bevel machine.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
