| Prod Model: |
LYJ-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description
Usage and Feature

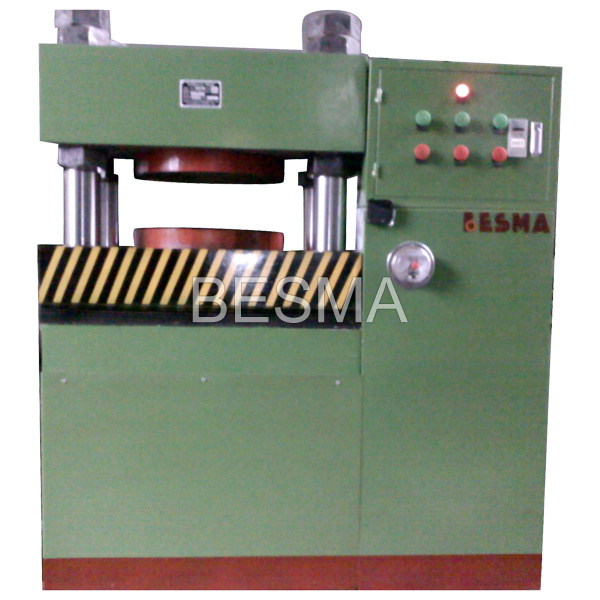

HYDRAULIC COLD PRESS MACHINE is applicable to pressing metal or non-metal materials. E. G. Diamond saw blade, metal matrix, resin saw, wheels, rubber blade forming, accessories of glass, and other metal pressing.
HYDRAULIC COLD PRESS MACHINE is characterized by small powder, big pressure, fast, simple structure, easy to operate & easy maintenance.
HYDRAULIC COLD PRESS MACHINE can realize two operation modes, settle (jog point control) & work (automatic control). For automatic control working, working table can be realized rapid up, more pressure, pressure upkeep, automatic return and return end. During these time, one cycling steps, speed, and the holding time of pressure can be set freely.
|
No. |
Item |
Unit |
63T |
100T |
200T |
300T |
500T |
600T |
1000T |
|
1 |
Max. working pressure of hydraulic |
Mpa |
24 |
24 |
24 |
24 |
24 |
24 |
28 |
|
2 |
Max. working stroke |
mm |
300 |
300 |
300 |
320 |
350 |
350 |
400 |
|
3 |
Height of movable working table |
mm |
800 |
850 |
900 |
900 |
950 |
950 |
1000 |
|
4 |
Max. distance from movable working table to beams under line (without pads) |
mm |
350 |
350 |
320 |
380 |
400 |
450 |
450 |
|
5 |
Stroke speed of movable working table |
Up-stroke |
mm/s |
70 |
70 |
65 |
60 |
50 |
45 |
45 |
|
Reture-stroke |
mm/s |
70 |
70 |
65 |
50 |
45 |
45 |
45 |
|
6 |
Useful area of movable working table |
mm*mm |
400*
400 |
400*
400 |
400*
400 |
450*
450 |
500*
500 |
600*
600 |
900*
900 |
|
7 |
Machine size |
Length |
mm |
1200 |
1500 |
1600 |
1700 |
1800 |
1900 |
2100 |
|
Height |
mm |
1200 |
1500 |
1600 |
1700 |
1800 |
1900 |
2100 |
|
8 |
Motor power |
kw |
4 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
9 |
Machine weight |
kg |
1200 |
1600 |
2300 |
3200 |
4800 |
5500 |
9000 |
Danyang BesMa Machinery Co., Ltd. was established in May, 2010. We focus in R&D with sales and service, is a high technology company.
Our core businesses are in diamond tool and carbide tool industries, supplying equipment, spare parts, production accessories and services.
Our products include granulating machine, automatic segment cold press, saw blade cutting tester, segment sorter, high frequency generator, high frequency brazing machine for saw blade and core drill, fully automatic brazing machine for carbide saw, sintering oven, tensioning machine, density tester, mixer, automatic polishing machine, dial gauge, torque tester, segment sintering frame, insulating material, granulating binder, cold press mould, graphite mould, steel bodies for saws, etc.
We are looking forward to serving you!
