| Prod Model: |
HHL-5 HHL-10 HHL-20 HHL-30 HHL-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tonnage: |
5~ 50 Ton |
| Handle Material: |
Rubber |
| Type: |
Hydraulic Gear Puller |
Product Description

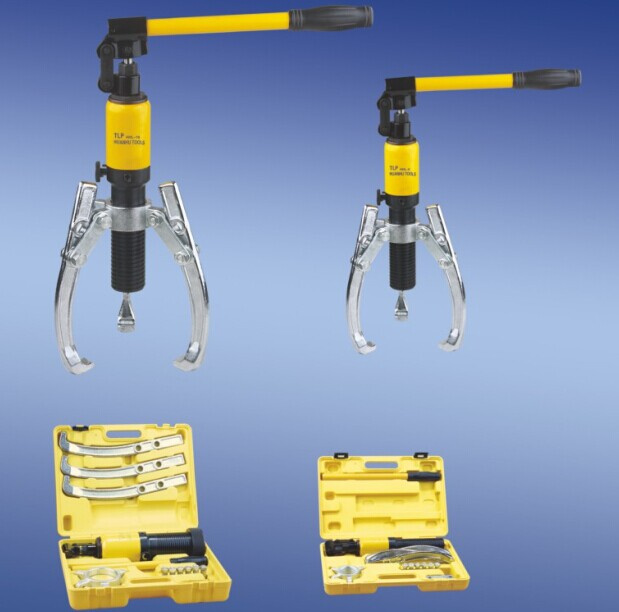

Integral Hydraulic Gear Puller
1. The integral pullers are compact, lightweight. Easy to carry and operate. It's least restricted by place and is extensively used by factories, repair stations and etc.
2. Both 2-jaw and 3-jaw styles are available
3. The handle's removeable and can be pressed at 360° direction which benifit using in limit space
4. High quality return piston ,quick return
the Piston rod was hard chrome plating , high safety factor and with long lifetime
5. The Cylinder body out of the Piston was blacken treated

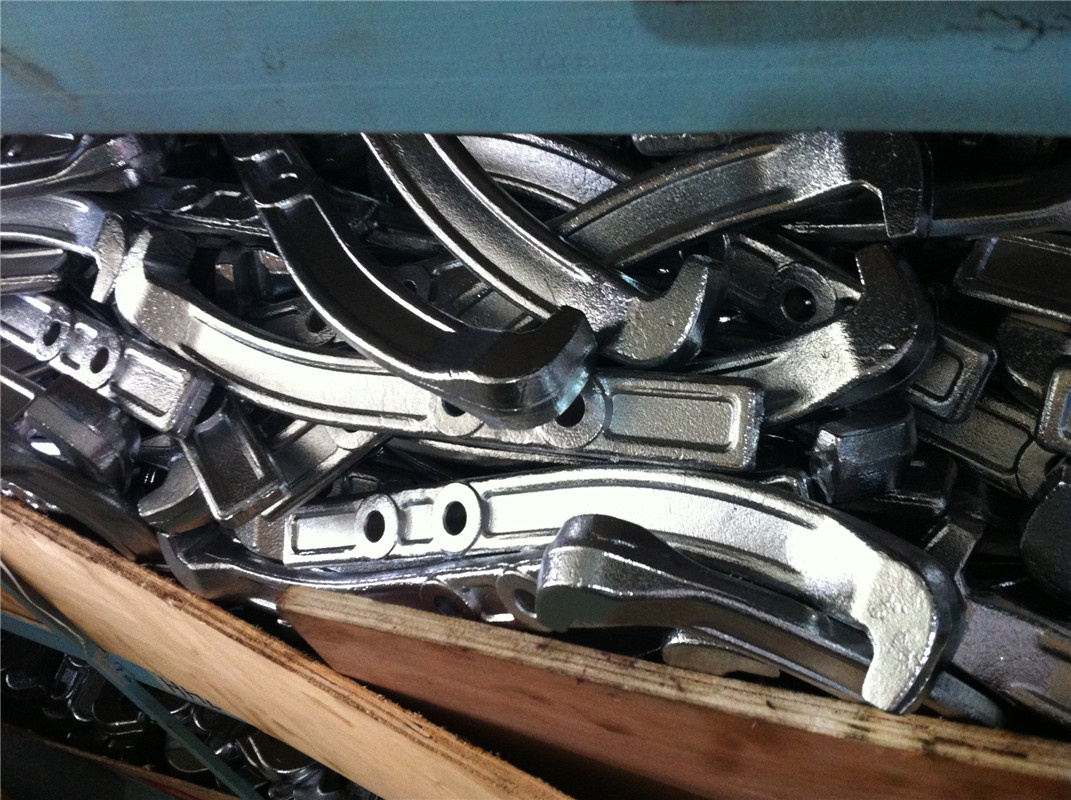

6. Claw and the frame were forged with high strength alloy steel , not easy to deformation and chrome plated
|
Model |
HHL-5 |
HHL-10 |
HHL-20 |
HHL-30 |
HHL-50 |
|
Rated output(T) |
5 |
10 |
20 |
30 |
50 |
|
Max. spread(mm) |
200 |
250 |
350 |
400 |
500 |
|
Max. stroke(mm) |
50 |
50 |
60 |
60 |
60 |
|
Weight(kg) |
7.5 |
11 |
19 |
25 |
45 |
|
Volume(cm) |
(1/4)44*38*32 |
(1/2)44*21*36 |
43*40*14 |
48*20*18 |
52*25*22 |
