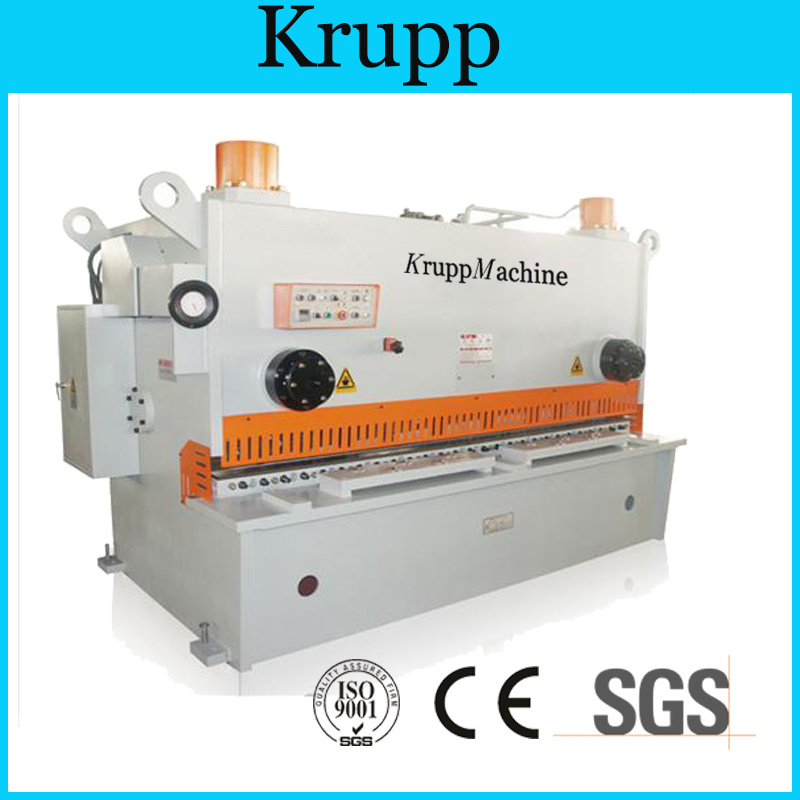

Hydraulic Guillotine Shearing Machine/Plate Shearing Machine

Name: Hydraulic Guillotine Shearing Machine/Plate Shearing Machine
Brand: china-castingforging.com
SKU: 779758405
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 9000-90000SET
Trade Terms:	FOB,CFR,CIF
Min Order:	1SET
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Maanshan Krupp Machinery Trade Co., Ltd.

Showroom Product Company Profile

Prod Model:	QC11K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Thickness (mm):	6-25
Cutting Angle:	0.5-3.5
Processing Object:	Aluminum,Stainless Steel Plate, Carbon Steel
Control System:	Chinese
Electrics:	Simens
Sealing Element:	Imported
Forging Forming Method:	Free Forging

Product Description

1.The entire machine is in fully steel welded structure,with stress eliminated by vibration aging technology,typical of excellent rigidity and stability.
2.Advanced hydraulic integrated valve block is employed,and the pipeline connection is minimized in a
compact structure,to enhance the system reliability and maintainability.
3.Oil cylinder in series ensure the shearing angle not to change during the shearing process of the
machine tool.
4.Accumulator return is stable and fast.
5.Blade gap is adjusted with hand wheel,in an accurate,rapid,and easy way.
6.The shearing angle is adjustable,to minimize the distortion of sheet bar.
7.Electric rear stopper and position display can be easily and accurately operated.
8.Rolling material support ball is set,to minimize fish tail with sheet bar and to reduce frictional resistance.

Model	Cutting thickness (mm)	Cutting width (mm)	Travel times (min-1)	Back-gauge distance (mm)	Cutting angle (°)	Throat Depth (mm)	Motor power (Kw)	Dimension (L × W ×H) (mm)
6×2500	6	2500	14-28	600	0.5-1.5	80	7.5	3120×1450×1990
6×3200	6	3200	12-25	600	0.5-1.5	80	7.5	3840×1550×2040
6×4000	6	4000	10-22	600	0.5-1.5	80	7.5	4660×1650×2120
6×5000	6	5000	8-19	600	0.5-1.5	80	11	5530×2075×2520
6×6000	6	6000	6-16	600	0.5-1.5	80	11	6530×2075×2210
6×7000	6	7000	5-13	600	0.5-1.5	80	15	7750×2260×2760
8×2500	8	2500	13-26	600	0.5-1.5	80	11	3100×1550×2070
8×3200	8	3200	11-24	600	0.5-1.5	80	11	3800×1620×2160
12×2500	12	2500	10-24	600	0.5-2	80	18.5	3080×1700×2310
12×3200	12	3200	9-22	600	0.5-2	80	18.5	3780×1750×2210
12×4000	12	4000	7-20	800	0.5-2	80	18.5	4580×1800×2420
16×2500	16	2500	9-18	800	0.5-2.5	80	22	3100×1700×2340
16×4000	16	4000	7-14	800	0.5-2.5	80	22	4620×1900×2560
20×2500	20	2500	8-17	800	0.5-3	80	37	3100×1820×2500
20×4000	20	4000	6-14	800	0.5-3	80	37	4600×1940×2770
25×3200	25	3200	6-12	800	0.5-3.5	80	45	3850×2340×2820

The above data is just for you reference,if there is any disaccord please refer to actual data

Ma'anshan Krupp Machinery Trade Co., Ltd is located in Ma'anshan Bowang

Industrial park. We are near to Nanjing South station and Nanjing Lukou airport, which is convenient to be visited.

Our company adopts international advanced management mode and imports Japanese and German technology. We are the enterprises with collection brand, research and development, design and manufacture.

We passed ISO9001: 2008 international quality system certification and has obtained many patent. All machines are with CE certification.

Our company are professional in producing metal forming machine, including CNC press brake, shearing machine, rolling machine, combined punching shearing machine, hydraulic notching machine, punching machine and all kinds ofmechanical tools, die.

We have rich clients in many countries and regions. Beside offer the machines with good quality, we also have experienced after sales service team. If thereis need, our engineers can go to the buyer's side to offer training and installation at the earliest time.

"Quality Create Future" is our concept. We'll try our best to achieve every product.
