Prod Model: |
DIN En 853 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Category: |
Hydraulic Rubber Hose |
Business Type: |
Manufacture |
Inner Tube: |
Nitrile |
Reinforcement: |
Two Braided Layer of High |
Cover: |
Neoprene Blend |
Temperature Range: |
-40°c to 100°c |
Surface Option: |
Smooth or Cloth Wrapped Surface |
Color Option: |
Black, Red, Blue, Yellow and So on |
Applications: |
Coal / Mining / Agricultural Machine / Other Hydra |
Size Range: |
3/16" - 2 3/8" |
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Color: |
Black |
Product Description
Structure

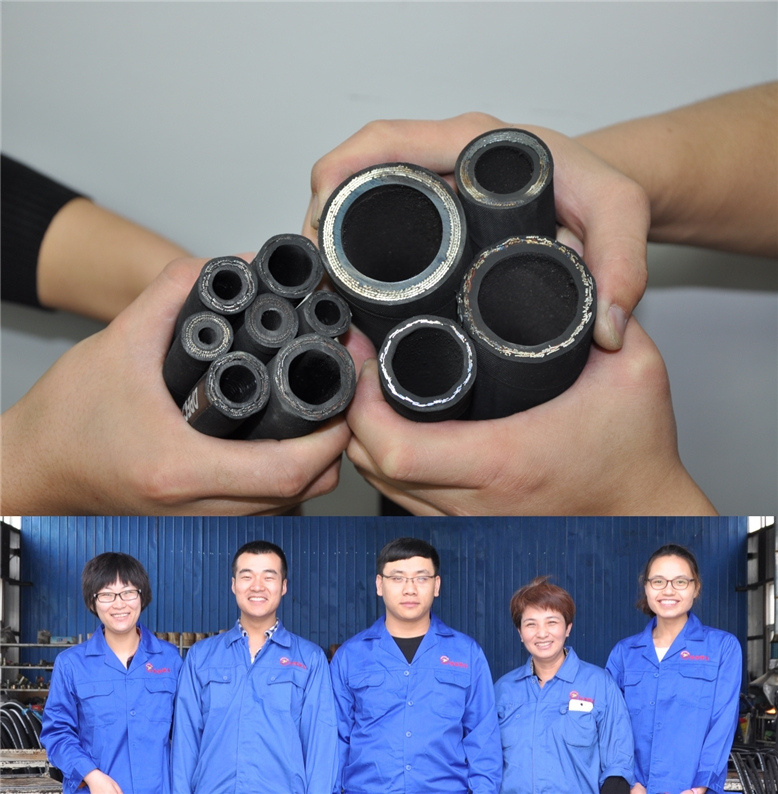

The 2SN hydraulic rubber hose consists of an inner tube of liquid resistant synthetic rubber, middle rubber layer, two braided wire reinforcement, and superior weather resistant synthetic rubber cover.
Inner Tube: Nitrile
Reinforcement: two braid of high tensile steel wire
Cover: Black neoprene blend that meets MT98 and GB/T 15907 Flame resistance
Application Standards: EN853 2SN, GB3683.1 2SN, SAE J517 R1S, ISO 1436 2SN.
Application
The 2SN rubber hose is high pressure hose that can be used in construction, machine tool and agriculture application..
It is also mainly used in mine hydraulic support, oil exploration, suitable to crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.
Working Temperature
Oil: -40°C to +100°C, Air: -30°C to 50°C, Water Emulsion under +80°C
Features
It provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber.
It provides high pressure resistance and superior impulse resistance.
It provides superior bonding in hose internal, soft use and small deformation under pressure.
It provides superior kink resistance and fatigue resistance and longer services life.
About us
We are the leading manufacturer specialized in designing and manufacturing different kinds of hydraulic & high-pressure rubber hose in China with the experience of more than 20 years, manufacturing according to the ISO9001: 2008, ISO/TS 29001 and API Q1. We help our customer develop special and quality hydraulic rubber hose for their needs.
