| Prod Model: |
Q35Y-16 |
| Markets: |
Southeast Asia,Africa,Mid East,Western Europe |
| Type: |
Casting&Forging Machine |
Product Description
Features:

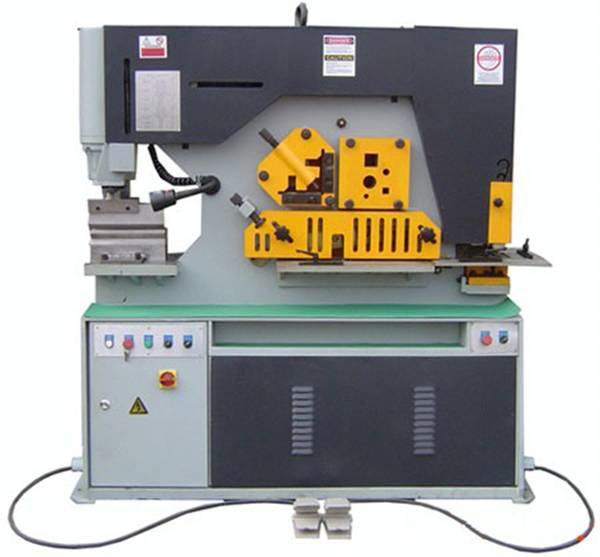

Our Q35Y Series Iron worker are mainly used for cutting flat bar, profile, punching hole and notching. It can widely used in Shipyard, Electric, Bridge, Automobile, Hoisting & Transportation, Metal Construction and other machinery factories etc.
It can Flat bar cutting, profile cutting, punching hole and notching work can be performed on the machine within the rated specification. With extra equipment, the machine is able to cut, punch and bend in special shape.
The machine is adopted hydraulic driving system and it has a perfect structure, with light weight and low noise, stable performance and overload protecting device.
Technical data:
Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30
Pressure(Ton) 55 75 110 140
Max. Cutting thickness(mm) 16 20 25 30
Plate strength(N/mm2) ≤ 450 ≤ 450 ≤ 450 ≤ 450
Cutting angle(degree) 7° 8° 8° 8°
Sheraing size of one stroke(mm) 16*250
8*400 20*330
10*480 25*330
16*600 30*355
20*600
RAM stroks(mm) 80 80 80 80
Number of strokes(cpm) 8 8 6 6
Throat depth(mm) 300 355 400 600
Punching thickness(mm) 16 20 25 26
Max. Punching diameter(mm) 25 30 35 38
Power of main motor(kw) 4 5.5 7.5 11
Overall dimensions(L*W*H)mm 1640*730*1770 1860*800*1900 2355*960*2090 2680*1040*2300.
Weight of machine(kg) 1600 2000 4800 6800
A Special order for the joist and channel moulds needed.
Profile Round Bar Square Bar Equal Angle T-Bar joistq Channel
90° Shearing 45° Shearing 90° Shearing 45° Shearing
Q35-16 45 40*40 125*125*12 100*100*10 125*125*12 100*100*10 180*94*6.5 180*68*7
Q35Y-16 45 40*40 125*125*12 50*50*5 120*120*12 60*60*8 126*74*5 126*53*5.5
Q35Y-20 50 50*50 140*140*12 50*50*5 140*140*12 70*70*10 160*86*6 160*60*6.5
Q35Y-25 60 50*50 160*160*14 50*50*5 160*160*14 80*80*10 200*102*9 210*75*9
Q35Y-30 65 55*55 180*180*16 60*60*6 180*180*16 80*80*10 280*124*10.5 280*86*11.5.
