| Markets: |
Southeast Asia,Mid East,Eastern Asia |
| Color: |
Optional |
| Stroke: |
4000--8000mm |
| Lifting Capacity: |
40t-90t |
| Rear Suspension: |
700-1100 |
| Lifting Angle: |
45-52 |
| Max. Pressure: |
20MPa |
| Max.Flow: |
190L/Min |
| Inner Bore: |
132-194 |
| First Stage Pushing Weight: |
26-62t |
| Cylinder Max .Swing Angle: |
32 |
| Standard: |
Nonstandard |
| Power: |
Hydraulic |
| Structure: |
Plunger Cylinder |
| Pressure Direction: |
Single-acting Cylinder |
| Material: |
Steel |
| Usage: |
Lifting Loader Cargo |
Product Description

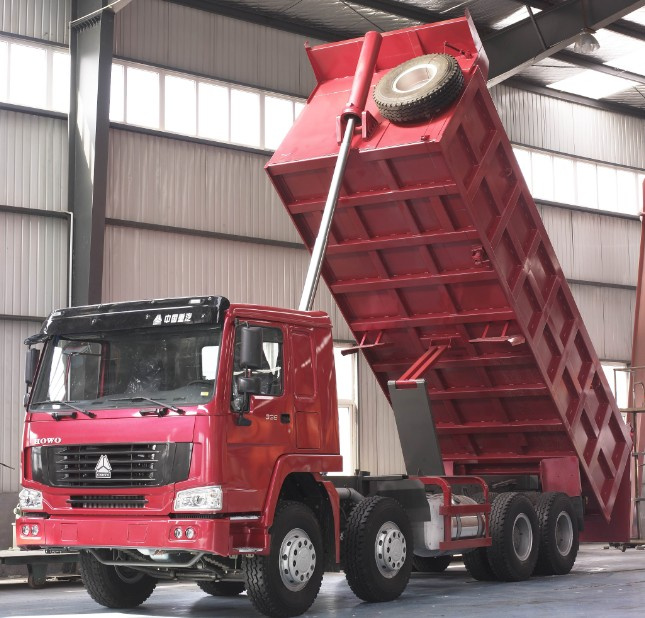

The instruction for EURIK tipping gear
EURIK multistage cylinder is manufactured by the cooperation of Special Truck Company of CNHTC and NUMMI Company of Finland. Its main characteristics are stated as follows: More secure, rigid integrated limit prove inner tube take out; More efficient, high-low pressure sealing is adapting to frequent operation; More widely, adapting to different regions and different working situations; More powerful, system pressure reaches 20-24Mpa; More durable, cylinder barrel uses seamless steel pipe, chrome plated on the surface is more reliable, and all the core component are imported; More stable, supported by welded copper ring, oriented longest.
Major characteristics:
Imported high-quality steel pipe, the superior material, high strength, ensures the reliability of the product.
The inner wall of cylinder tube is thin, light weight.
New type sealing way of high pressure combined with low pressure ensures the sealing reliability under different pressure conditions, which can adapt to the requirements of different regions.
Long guide improves the cylinder's bending resistance, and enhance the adaptability of carriage side slip.
The key components are made of press forging parts and overall performance is better, which improves the reliability of the hydraulic cylinder.
The base axis is broaden to Φ 80, more carrying capacity, stronger impact resistance, more safety.
Applying EURIK lift valve is more suitable for front lifting system.
Copper ring structure made by mechanical processing with high size precision, contacts cylinder surface evenly, and anti cornering performance is good.
Cylinder surface adopts chrome plating processing, improving the hardness, enhancing the corrosion resistance and wear resistance.
Series of cylinder is reasonable, and complete series products can meet the needs of heavy haul transportation, mine transportation and city sediment transportation, etc.
Operating system is reasonable, overall system performance is more stable.
Long-term experience in producing trucks provides technical support for the EURIK, which can meet the needs of the market.
SINOTRUK QINGDAO HEAVY INDUSTRY Co., Ltd (original named as Special Truck Company, CNHTC) (here reference SINOTRUK Qingdao) is located in Qingdao, a beautiful seaside city. It is one of the wholly owned subsidiaries of SINOTRUK and the famous enterprise in special truck industry in China.
In 2011, our company expands the production scope, and increases the engineering machinery products, then the company rename "Special Truck Company, CNHTC" to "SINOTRUK Qingdao Heavy Industry Co., Ltd", and move to new factory located in Qingdao High-tech Industrial Development Zone. With over 2, 000 staffs working there, SINOTRUK Qingdao has the capacity of manufacturing 20, 000 special trucks and over 60, 000 sets of hydraulic components per year. The company owns a fixed capital of USD400 million and occupying 899, 100 square meters. The main products cover Excavator, Dump Truck, Concrete Mixer Truck, Garbage Truck, Aircraft Tractor, Military Vehicle, Semi-trailer, Water Tank Truck, Fuel Tank Truck, Fire Fighting Truck, Mobile Workshop, hydraulic component, etc.
SINOTRUK Qingdao is one of the 52 national vehicle export base enterprises and 53% of the products are exported to more than 50 countries and regions, such as Southeast Asia, Africa, South America, Middle Asia and Russia, etc. SINOTRUK Qingdao can provide best service for the overseas users in plenty of spare parts supply, after-sales services, abundant technical strength, regular customers visit and professional training.
It is your choice to choose us, to supply directly from manufacturer, quality trucks, best service, genuine spare parts.
